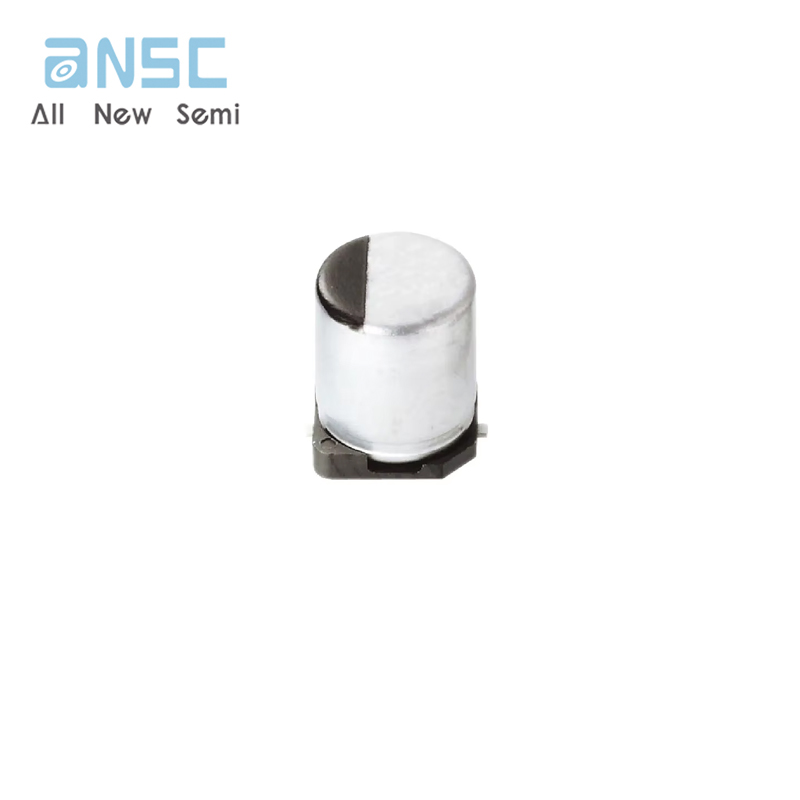

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
Hot offer BOM distribution service electronic components EEE-TC1V101P Aluminum Electrolytic Capacitors
Manufacturer Product Number
EEE-TC1V101P
Description
EEE-TC1V101P 100µF 35V Aluminum Electrolytic Capacitors Radial, Can - SMD 200mOhm
Package Condition
Tape & Reel (TR) Cut Tape (CT)
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details
| Product Description: EEE-TC1V101P Aluminum Electrolytic Capacitor 1. Description The EEE-TC1V101P is a high-performance, surface-mount aluminum electrolytic capacitor designed by Panasonic Electronic Components. This capacitor is part of the TC series, known for its reliability and robustness in various applications. With a rated DC voltage of 35V and a tolerance of ±20%, it offers excellent capacitance stability across a wide range of operating conditions. 2. Features High Capacitance: The EEE-TC1V101P boasts a capacitance of 100μF, making it suitable for applications requiring significant energy storage. Surface Mount Design: The compact 8.30mm x 8.30mm land size and 8mm diameter ensure easy integration into modern electronic devices. Operating Temperature Range: The capacitor operates reliably between -40°C and 125°C, making it ideal for high-temperature applications. Ripple Current Handling: It can handle high ripple currents, with values up to 410mA at AC frequencies, ensuring stable operation under varying load conditions. Environmental Compliance: The EEE-TC1V101P is RoHS compliant and does not contain any SVHC substances, adhering to stringent environmental regulations. Long Lifetime: With a lifetime of up to 3000 hours at 125°C, this capacitor provides long-lasting performance in demanding environments. 3. Applications The primary applications for the EEE-TC1V101P include: - Automotive Systems: The capacitor's high temperature stability and robust construction make it suitable for use in automotive electronics, such as engine management systems and infotainment systems. - High Temperature Reflow: Its ability to withstand high temperatures during the reflow process makes it ideal for use in applications where soldering temperatures exceed 200°C. Secondary applications include: - Industrial Control Systems: The capacitor's high capacitance and low ESR make it suitable for use in industrial control systems requiring stable power supplies. - Aerospace Electronics: The EEE-TC1V101P's reliability and high temperature stability make it a viable option for aerospace electronics where components must perform under extreme conditions. |
Product Description
| Type# | Description |
| PART# | EEE-TC1V101P |
| Category | Capacitors |
| Aluminum Electrolytic Capacitors | |
| Mfr | / |
| Series | TC |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| / | |
| Part Status | Active |
| Capacitance | 100 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | 200mOhm @ 100kHz |
| Lifetime @ Temp. | 3000 Hrs @ 125°C |
| Operating Temperature | -40°C ~ 125°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive, High Temperature Reflow |
| Ripple Current @ Low Frequency | 266.5 mA @ 120 Hz |
| Ripple Current @ High Frequency | 410 mA @ 100 kHz |
| Lead Spacing | - |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.413" (10.50mm) |
| Surface Mount Land Size | 0.327" L x 0.327" W (8.30mm x 8.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Base Product Number | EEE-TC |
Actual image of the product
