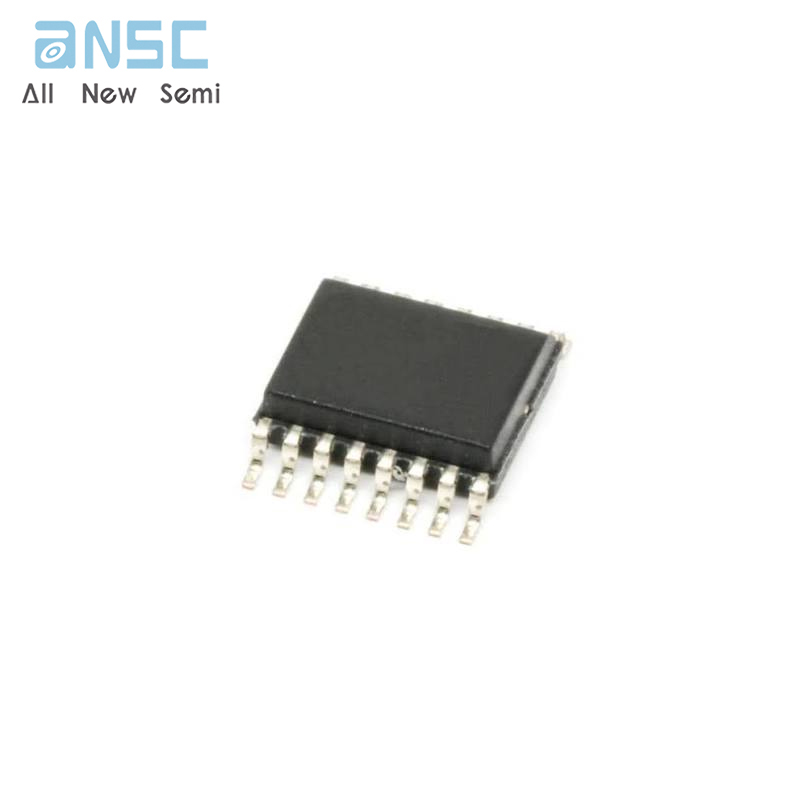

Hot-selling and scarce ADF4106BRUZ-RL PLL Frequency Synthesizer TSSOP16 spot stock

Product Descriptions

The ADF4106 frequency synthesizer can be used to implement  local oscillators in the up-conversion and down-conversion  sections of wireless receivers and transmitters. It consists of a  low noise, digital phase frequency detector (PFD), a precision  charge pump, a programmable reference divider, programmable  A counter and B counter, and a dual-modulus prescaler (P/P + 1).  The A (6-bit) counter and B (13-bit) counter, in conjunction  with the dual-modulus prescaler (P/P + 1), implement an N  divider (N = BP + A). In addition, the 14-bit reference counter  (R Counter) allows selectable REFIN frequencies at the PFD  input. A complete phase-locked loop (PLL) can be implemented  if the synthesizer is used with an external loop filter and voltage  controlled oscillator (VCO). Its very high bandwidth means  that frequency doublers can be eliminated in many high  frequency systems, simplifying system architecture and  reducing cost.

Product Features

6.0 GHz bandwidth

2.7 V to 3.3 V power supply

Separate charge pump supply (VP) allows extended

tuning voltage in 3 V systems

Programmable dual-modulus prescaler

8/9, 16/17, 32/33, 64/65

Programmable charge pump currents

Programmable antibacklash pulse width

3-wire serial interface

Analog and digital lock detect

Hardware and software power-down mode

Product Applications

Broadband wireless access

Satellite systems

Instrumentation

Wireless LANS

Base stations for wireless radios

​

Product Specification

Product Photos

For more product information, please download the PDF
