Professional supply Integrated circuit IC ICS542MILF Clock Fanout Buffer (Distribution) Divider IC 156 MHz 8-SOIC

Product Descriptions

The ICS542 is cost effective way to produce a high-quality clock output divided from a clock input. The chip accepts a clock input up to 156 MHz at 3.3 V and produces a divide by 2, 4, 6, 8, 12, or 16 of the input clock. There are two outputs on the chip, one being a low-skew divide by two of the other.

For instance, if an 100 MHz input clock is used, the ICS542 can produce low-skew 50 MHz and 25 MHz clocks, or low skew 25 MHz and 12.5 MHz clocks. The chip has an all-chip power-down mode that stops the outputs low, and an OE pin that tri-states the outputs.See the ICS541 and ICS543 for other clock dividers, and the ICS501, 502, 511, 512, and 525 for clock multipliers.

Product Features

• 8-pin SOIC package, Pb free

• Available in RoHS compliant package

• IDT’s lowest cost clock divider

• Low skew (500 ps) outputs. One is /2 of the other

• Easy to use with other generators and buffers

• Input clock frequency up to 156 MHz

• Output clock duty cycle of 45/55

• Power-down turns off chip

• Output Enable

• Advanced, low-power CMOS process

• Operating voltage of 3.3 V or 5 V

• Does not degrade phase noise - no PLL

• Available in industrial and commercial temperature

Specifications

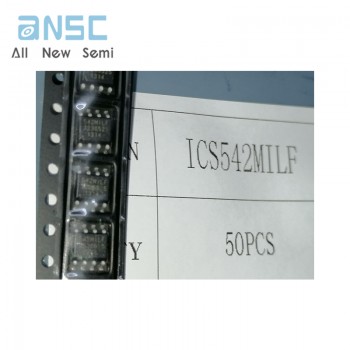

Actual product photos
