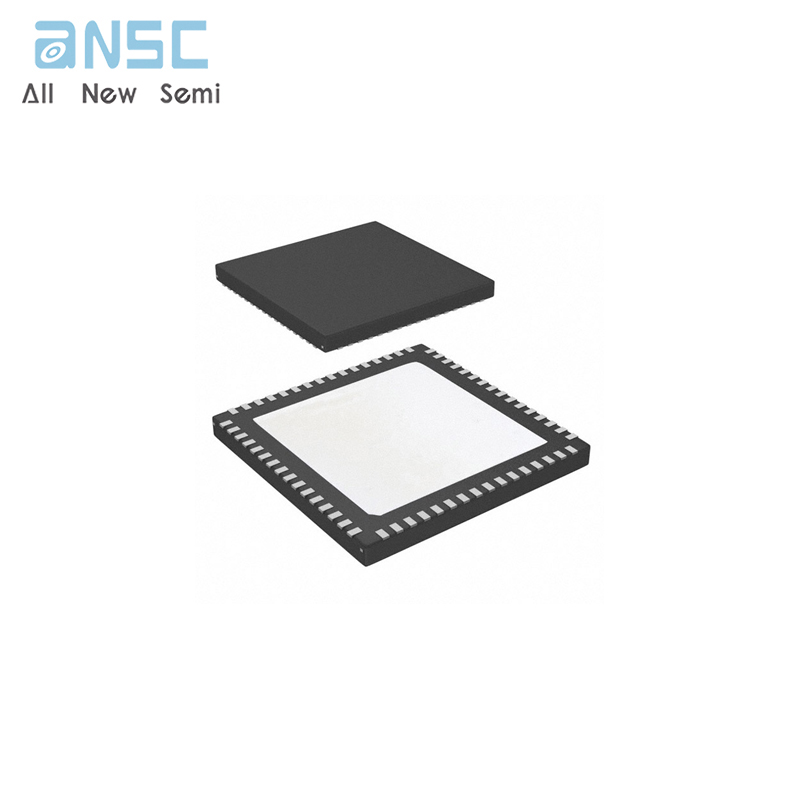

Hot-selling and scarce LMK04808BISQX/NOPB Low-Noise Clock Jitter Cleaner with Dual Loop PLLs QFN spot stock

Product Descriptions

The LMK0480x family is the industry's highest performance clock conditioner  with superior  clock jitter  cleaning,   generation,   and distribution with advanced features to meet  next  generation system requirements.      The   dual       loop   PLLatinum ™ architecture is capable of 111 fs rms jitter (12 kHz to20 MHz) using a low noise VCXO module or sub-200 fs rms jitter (12 kHz to 20 MHz) using a low cost external crystal and varactor diode.

The dual   loop architecture consists of  two highperformance phase-locked loops (PLL), a low-noise crystal   oscillator  circuit,   and a high-performance voltage controlled oscillator  (VCO) .  The first  PLL(PLL1) provides low-noise jitter cleaner functionality while the second PLL (PLL2)  performs the clock generation.  PLL1 can be configured to either work with an external   VCXO module or  the integrated crystal oscillator with an external tunable crystal  and varactor diode. When paired with a very narrow loop bandwidth,  PLL1 uses the superior close-in phase noise (offsets below 50 kHz) of the VCXO module or the tunable crystal   to clean the input  clock.  The output of PLL1 is used as the clean input reference toPLL2 where it  locks the integrated VCO. The loop bandwidth of PLL2 can be optimized to clean the farout  phase noise (offsets above 50 kHz) where the integrated VCO outperforms the VCXO module ortunable crystal used in PLL1 .

Product Features

•   Ultra-Low RMS Jitter Performance

– 111 fs RMS Jitter (12 kHz to 20 MHz)

– 123 fs RMS Jitter (100 Hz to 20 MHz)

•   Dual Loop PLLatinum ™ PLL Architecture

•   PLL1

– Integrated Low-Noise Crystal Oscillator Circuit

– Holdover Mode when Input Clocks are Lost

– Automatic or Manual Triggering/Recovery

•   PLL2

– Normalized PLL Noise Floor of –227 dBc/Hz

– Phase Detector Rate up to 155 MHz

– OSCin Frequency-Doubler

– Integrated Low-Noise VCO

•   2 Redundant Input Clocks with LOS

– Automatic and Manual Switch-Over Modes

•   50 % Duty Cycle Output Divides, 1 to 1045 (Even and Odd)

•   12 LVPECL, LVDS, or LVCMOS Programmable Outputs

•   Digital Delay: Fixed or Dynamically Adjustable

•   25 ps Step Analog Delay Control.

•   14 Differential Outputs. Up to 26 Single Ended.

– Up to 6 VCXO/Crystal Buffered Outputs

•   Clock Rates of up to 1536 MHz

•   0-Delay Mode

•   Three Default Clock Outputs at Power Up

•   Multi-Mode: Dual PLL, Single PLL, and Clock Distribution

•   Industrial Temperature Range: –40 to 85°C

•   3. 15-V to 3.45-V Operation

•   2 Dedicated Buffered/Divided OSCin Clocks

•   Package: 64-Pin WQFN (9 .0 × 9.0 × 0.8 mm)

Product Applications

•   Data Converter Clocking

•   Wireless Infrastructure

•   Networking, SONET/SDH, DSLAM

•   Medical / Video / Military / Aerospace

•   Test and Measurement

Product Specification

Product Photos

For more product information, please download the PDF
