Hot-selling and scarce ADF4360-9BCPZ Clock Generator PLL with Integrated VCO LFCSP24 spot stock

Product Descriptions

The ADF4360-9 is an integrated integer-N synthesizer and voltage-controlled oscillator (VCO). External inductors set the ADF4360-9 center frequency. This allows a VCO frequency range of between 65 MHz and 400 MHz.

An additional divider stage allows division of the VCO signal. The CMOS level output is equivalent to the VCO signal divided by the integer value between 2 and 31. This divided signal can be further divided by 2, if desired.

Control of all the on-chip registers is through a simple 3-wire interface. The device operates with a power supply ranging from 3.0 V to 3.6 V and can be powered down when not in use.​

Product Features

Primary output frequency range: 65 MHz to 400 MHz

Auxiliary divider from 2 to 31,output from 1.1 MHz to 200 MHz

3.0 V to 3.6 V power supply

1.8 V logic compatibility

Integer-N synthesizer

Programmable output power level

3-wire serial interface

Digital lock detect

Software power-down mode

Product Applications

System clock generation

Test equipment

Wireless LANs

CATV equipment

Product Specifications

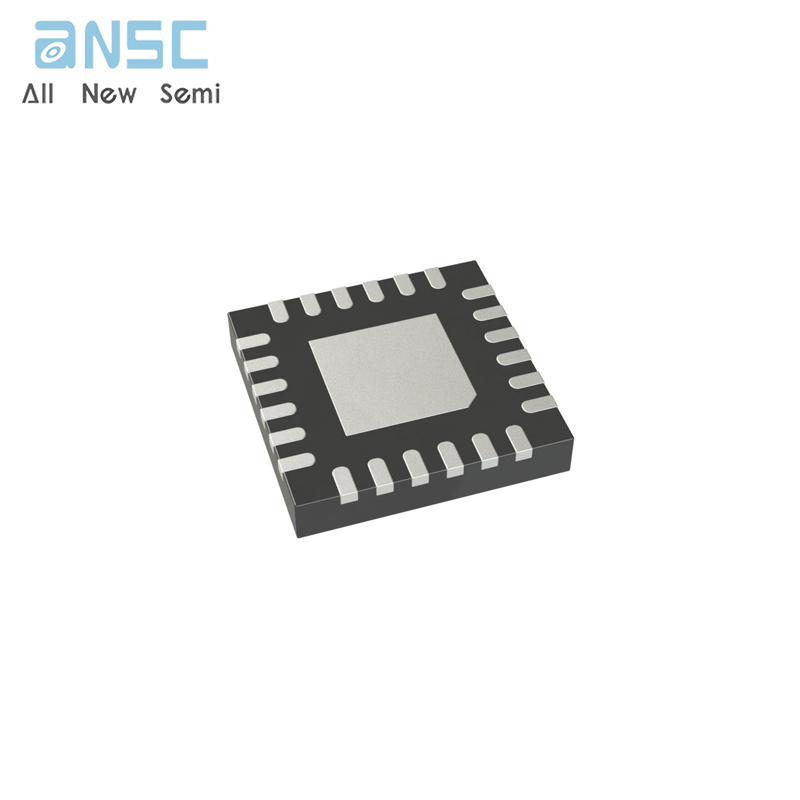

Product Photos

For more product information, please download the PDF
