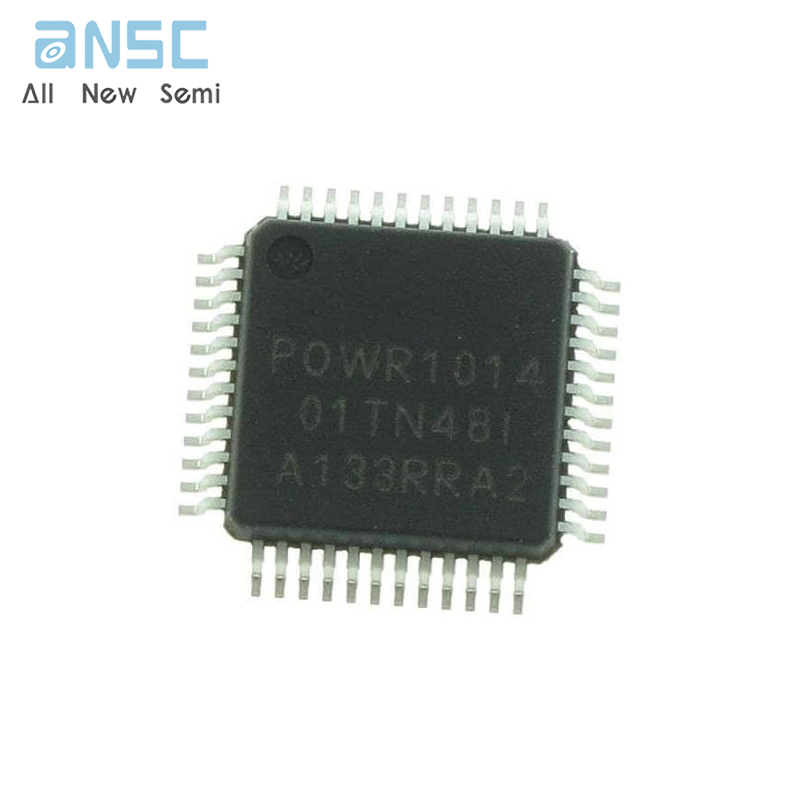

Hot-selling and scarce ISPPAC-POWR1014A-01TN48I In-System Programmable Power Supply Supervisor QFP48 spot stock

Product Descriptions

IspPAC-POWR1014/A is a  general-purpose power-supply monitor and sequence  controller, incorporating both in-system programmable  logic and in-system programmable analog functions  implemented in non-volatile E2 CMOS® technology. The  ispPAC-POWR1014/A device provides 10 independent  analog input channels to monitor up to 10 power supply  test points. Each of these input channels has two independently programmable comparators to support both  high/low and in-bounds/out-of-bounds (window-compare) monitor functions. Four general-purpose digital  inputs are also provided for miscellaneous control functions.

The ispPAC-POWR1014/A provides 14 open-drain digital outputs that can be used for controlling DC-DC converters, low-drop-out regulators (LDOs) and optocouplers, as well as for supervisory and general-purpose logic interface functions. Two of these outputs  (HVOUT1-HVOUT2) may be configured as high-voltage MOSFET drivers. In high-voltage mode these outputs can provide up to 12 V for driving the gates of n-channel  MOSFETs so that they can be used as high-side power switches controlling the supplies with a programmable  ramp rate for both ramp up and ramp down.

The ispPAC-POWR1014/A incorporates a 24-macrocell CPLD that can be used to implement complex state  machine sequencing for the control of multiple power supplies as well as combinatorial logic functions. The status  of all of the comparators on the analog input channels as well as the general purpose digital inputs are used as  inputs by the CPLD array, and all digital outputs may be controlled by the CPLD. Four independently programmable  timers can create delays and time-outs ranging from 32 µs to 2 seconds. The CPLD is programmed using LogiBuilder™, an easy-to-learn language integrated into the PAC-Designer® software. Control sequences are written to  monitor the status of any of the analog input channel comparators or the digital inputs.

Product Features

 Monitor and Control Multiple Power Supplies

• Simultaneously monitors up to 10 power supplies

• Provides up to 14 output control signals

• Programmable digital and analog circuitry

 Embedded PLD for Sequence Control

• 24-macrocell CPLD implements both state machines and combinatorial logic functions

 Embedded Programmable Timers

• Four independent timers

• 32µs to 2 second intervals for timing sequences

 Analog Input Monitoring

• 10 independent analog monitor inputs

• Two programmable threshold comparators peranalog input

• Hardware window comparison

• 10-bit ADC for I2C monitoring (ispPACPOWR1014A only)

 High-Voltage FET Drivers

• Power supply ramp up/down control

• Programmable current and voltage output

• Independently configurable for FET control or digital output

 2-Wire (I2C/SMBus™ Compatible) Interface

• Comparator status monitor

• ADC readout

• Direct control of inputs and outputs

• Power sequence control

• Only available with ispPAC-POWR1014A

 3.3 V Operation, Wide Supply Range 2.8 V to 3.96 V

• Industrial temperature range: –40°C to +85°C

• 48-pin TQFP package, lead-free option

 Multi-Function JTAG Interface

• In-system programming

• Access to all I2C registers

• Direct input control

Product Specification

Product Photos

For more product information, please download the PDF
