Product Details

The LMK1C110x is a modular,high-performance,low-skew,general-purpose clock buffer family fromTexasInstruments.

The entire family is  designed with a  modul arapproachin mind.

All of the devices with in this family are pin-compatible to each other and backwards compatible to the CDCLVC110x family for easy handling.

All family members share the same high performing characteristics such as low additive jitter,low skew,and wide operating temperature range.

The LMK1C110x supportsa synchronous output enable control(1G) which switches the outputs into a low state when 1G is low.

The LMK1C110x family operates in a 1.8-V,2.5-Vand3.3-V environment and are characterized for operation from–40°C to 125°C.

Product Features

•  High-performance1:4 LVCMOS clock buffer

•  Verylow output skew< 50 ps

•  Extremelylow additive jitter < 50-fsmaximum

–  7.5-fstypical at VDD= 3.3 V

–  10-fstypical at VDD= 2.5 V

–  19.2-fstypical at VDD= 1.8 V

•  Very low propagation delay< 3 ns

•  Synchronous output enable

•  Supply voltage:3.3-V,2.5-V,or 1.8-V

–  3.3-Vtolerant input at all supply voltages

•  fmax= 250 MHz for 3.3 V

fmax= 200-MHz for 2.5 V and 1.8 V

•  Operating temperature range:–40°C to 125°C

​•  Available in 8-pinTSSOP package

Specifications

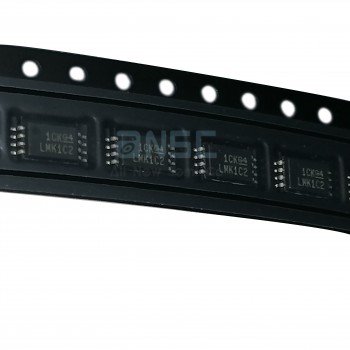

Actual product photos
