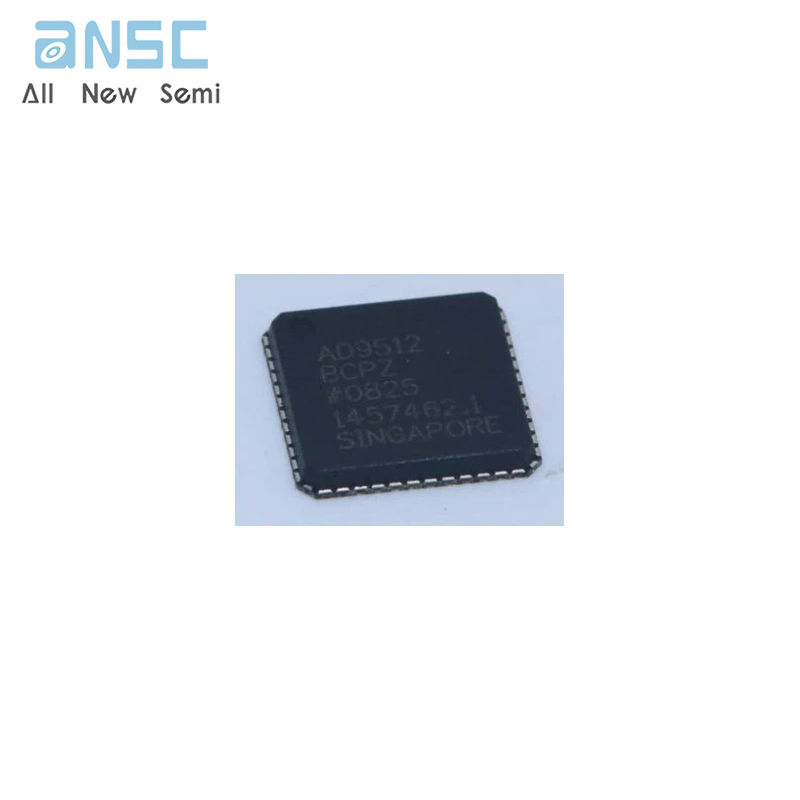

Hot-selling and scarce AD9512BCPZ 1.2 GHz Clock Distribution IC LSCFP48 spot stock

Product Descriptions

The AD9512 provides a multi-output clock distribution in adesign that emphasizes low jitter and low phase noise tomaximize data converter performance . Other applications withdemanding phase noise and jitter requirements can also benefitfrom this part .

There are five independent clock outputs . Three outputs areLVPECL (1 .2 GHz), and two are selectable as either LVDS(800 MHz) or CMOS (250 MHz) levels ..

Each output has a programmable divider that may be bypassedor set to divide by any integer up to 32. The phase of one clockoutput relative to another clock output may be varied by meansof a divider phase select function that serves as a coarse timingadjustment .

One of the LVDS/CMOS outputs features a programmabledelay element with a range of up to 10 ns of delay. This finetuning delay block has 5-bit resolution, giving 32 possible delaysfrom which to choose .​

Product Features

Two 1.6 GHz, differential clock inputs

5 programmable dividers, 1 to 32, all integers

Phase select for output-to-output coarse delay adjust

3 independent 1.2 GHz LVPECL outputs

Additive output jitter 225 fs rms

2 independent 800 MHz/250 MHz LVDS/CMOS clock outputs

Additive output jitter 275 fs rms

Fine delay adjust on 1 LVDS/CMOS output

Serial control port

Space-saving 48-lead LFCSP

Product Applications

Low jitter, low phase noise clock distribution

Clocking high speed ADCs, DACs, DDSs, DDCs, DUCs, MxFEs

High performance wireless transceivers

High performance instrumentation

Broadband infrastructure

Product Specification

Product Photos

For more product information, please download the PDF
