Hot-selling and scarce ADN2818ACPZ Clock and Data Recovery ICs LFCSP32 spot stock

Manufacturer Product Number
ADN2818ACPZ
Description

ADN2818ACPZ Clock and Data Recovery ICs LFCSP32 spot stock

Package Condition
Tray
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser. All intellectual property rights of products on our website belong to the original factory! (In addition to ANSC's own customized products)

Product Descriptions

The ADN2817/ADN2818 provide the receiver functions ofquantization, signal level detect, and clock and data recovery forcontinuous data rates from 10 Mbps to 2.7 Gbps.The ADN2817/ADN2818 automatically lock to all data rates without the need foran external reference clock or programming.All SONET jitterrequirements are exceeded,including jitter transfer,jitter generation,and jitter tolerance. All specifications are quoted for −40°C to+85°C ambient temperature, unless otherwise noted .

This device, together with a PIN diode and a TIA preamplifier,can implement a highly integrated, low cost, and low powerfiber optic receiver.

The ADN2817/ADN2818 have many optional features availablethrough an I2C interface . For example, the user can read backthe data rate onto which the ADN2817 or ADN2818 is locked,or the user can set the device to lock only to one particular datarate if provisioning of data rates is required.A BERMON circuitprovides an estimate of the received bit error rate (BER) withoutinterruption of the data . Alternatively, the user can adjust thedata sampling phase to optimize the received BER

The ADN2817/ADN2818 are available in a compact 5 mm ×5 mm, 32-lead, lead frame chip scale package .

Product Features

Serial data input: 10 Mbps to 2.7 Gbps

Exceeds ITU-T jitter specifications

Integrated limiting amplifier

5 mV p -p sensitivity (ADN2817 only)

Adjustable slice level: ±100 mV (ADN2817 only)

Patented dual-loop clock recovery architecture

Programmable LOS detect (ADN2817 only)

Integrated PRBS generator and detector

No reference clock required

Loss of lock indicator

Supports double data rate

Bit error rate monitor (BERMON)or sample phase adjust options

Rate selectivity without the use of a reference clock

I2C interface to access optional features

Single-supply operation: 3.3 V

Low power

650 mW (ADN2817)

600 mW (ADN2818)

5 mm × 5 mm 32-lead LFCSP

Product Applications

SONET OC-1, OC-3, OC-12, OC-48, and all associated FEC rates

Fibre Channel, 2× Fibre Channel, GbE, HDTV

WDM transponders

Regenerators/repeaters

Test equipment

Product Specification

Attribute Attribute value
ANSM-Part# ANSM-ADN2818ACPZ
Category Integrated Circuits (ICs)
Clock/Timing
Application Specific Clock/Timing
Manufacturer -
Packaging Tray
Part Status Discontinued at DigiKey
DigiKey Programmable Not Verified
PLL Yes
Main Purpose SONET/SDH
Input CML
Output CML
Number of Circuits 1
Ratio - Input:Output 1:2
Differential - Input:Output Yes/Yes
Frequency - Max 2.7GHz
Voltage - Supply 3V ~ 3.6V
Operating Temperature -40°C ~ 85°C
Mounting Type Surface Mount
Package / Case 32-WFQFN Exposed Pad, CSP
Supplier Device Package 32-LFCSP (5x5)
Base Product Number ADN2818

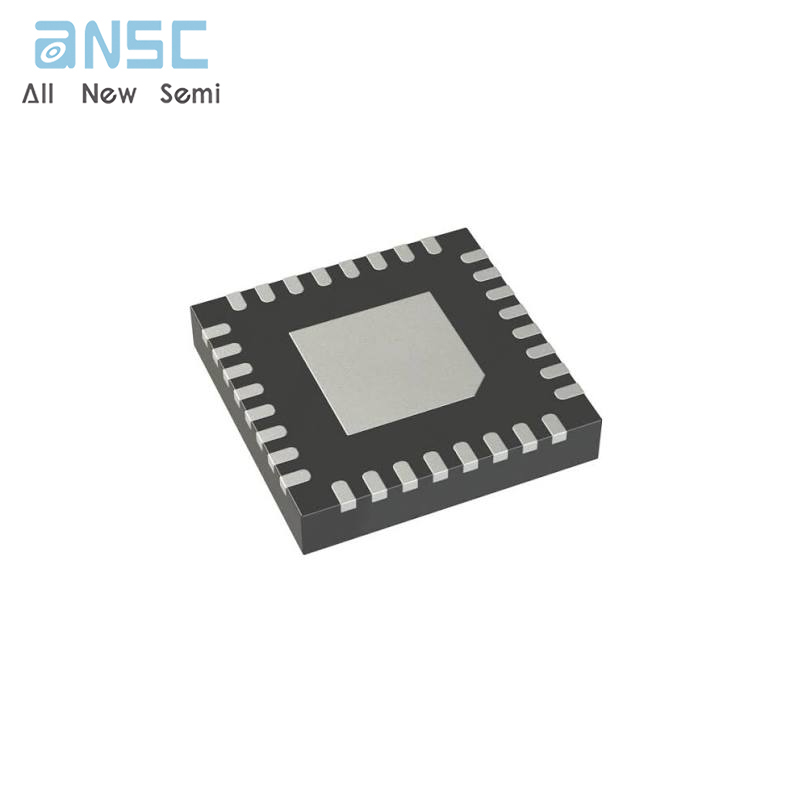

Product Photos

ADN2818ACPZ

For more product information, please download the PDF
