Hot-selling and scarce NB6L239MNR2 Clock Divider IC 3GHz 1 16-VFQFN spot stock

Product Descriptions

The NB6L239 is a high−speed, low skew clock divider with two divider circuits, each having selectable clock divide ratios; 1/2/4/8 and 2/4/8/16. Both divider circuits drive a pair of differential LVPECL outputs. (More device information on page 8). The NB6L239 is a member of the ECLinPS MAX™ Family of the high performance clock products.

Product Features

• Maximum Clock Input Frequency, 3.0 GHz

• CLOCK Inputs Compatible with LVDS/LVPECL/CML/HSTL

• EN, MR, and SEL Inputs Compatible with LVTTL/LVCMOS

• Rise/Fall Time 65 ps Typical

• < 10 ps Typical Output−to−Output Skew

• Example: 622.08 MHz Input Generates 38.88 MHz to 622.08 MHz Outputs

• Internal 50   Termination Provided

• Random Clock Jitter < 1 ps RMS

• QA  1 Edge Aligned to QB  n Edge

• Operating Range: VCC = 2.375 V to 3.465 V with VEE = 0 V

• Master Reset for Synchronization of Multiple Chips

• VBBAC Reference Output

• Synchronous Output Enable/Disable

• Pb−Free Packages are Available

Product Specification

​

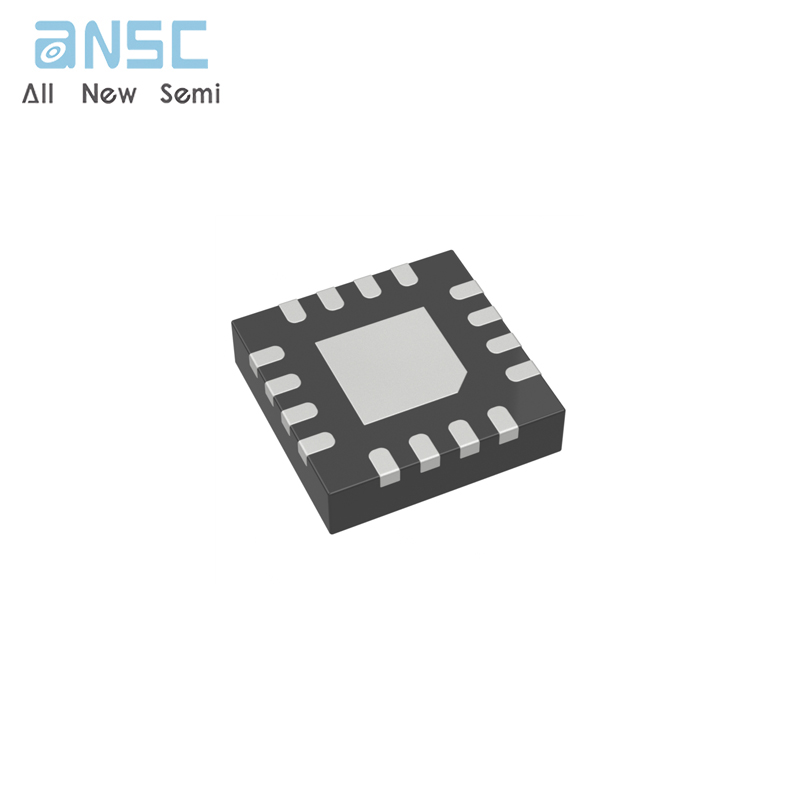

Product Photos

For more product information, please download the PDF
