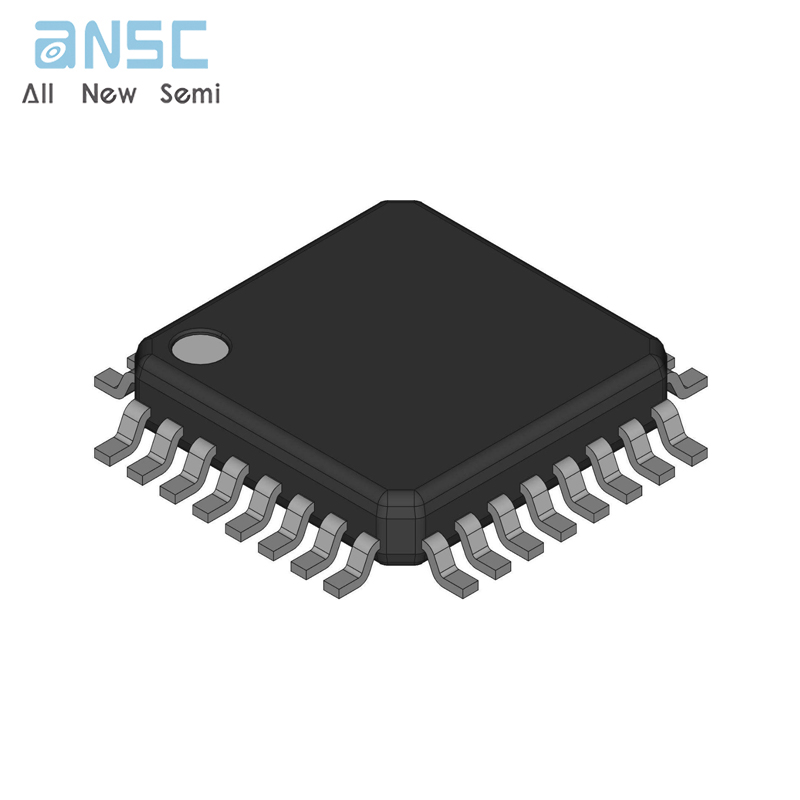

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
CDCLVP110VF Low-Voltage 110 LVPECL/HSTL With Selectable Input Clock Driver LQFP32 spot stock
Manufacturer Product Number
CDCLVP110VF
Description
CDCLVP110VF Low-Voltage 1:10 LVPECL/HSTL
Package Condition
Tray
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Features
• Distributes One Differential Clock Input Pair LVPECL/HSTL to 10 Differential LVPECL Clock Outputs
• Fully Compatible With LVECL/LVPECL/HSTL
• Single Supply Voltage Required, ±3.3-V or ±2.5-V Supply
• Selectable Clock Input Through CLK_SEL
• Low-Output Skew (Typ 15 ps) for Clock-Distribution Applications
• VBB Reference Voltage Output for Single-Ended Clocking
• Available in a 32-Pin LQFP Package
• Frequency Range From DC to 3.5 GHz
• Pin-to-Pin Compatible With MC100 Series EP111, ES6111, LVEP111, PTN1111
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-CDCLVP110VF |
| Category | Integrated Circuits (ICs) |
| Clock/Timing | |
| Clock Buffers, Drivers | |
| Manufacturer | - |
| Packaging | Tray |
| Part Status | Active |
| Type | Fanout Buffer (Distribution), Multiplexer |
| Number of Circuits | 1 |
| Ratio - Input:Output | 0.090277778 |
| Differential - Input:Output | Yes/Yes |
| Input | HSTL, LVPECL |
| Output | LVPECL |
| Frequency - Max | 3.5 GHz |
| Voltage - Supply | 2.375V ~ 3.8V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 32-LQFP |
| Supplier Device Package | 32-LQFP (7x7) |
| Base Product Number | CDCLVP110 |
Product Photos
For more product information, please download the PDF
