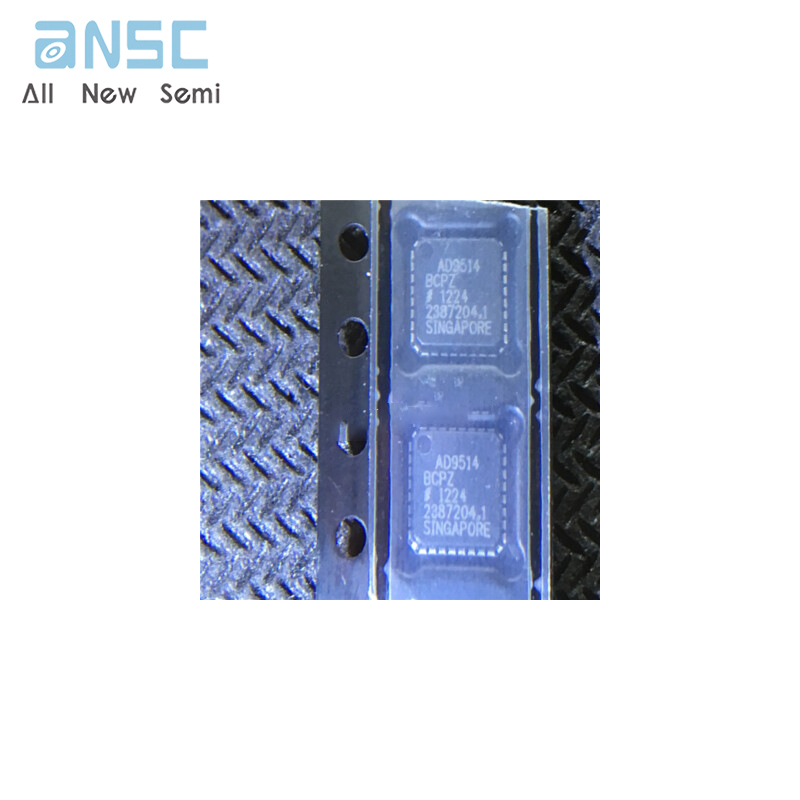

Hot-selling and scarce AD9514BCPZ 1.6 GHz Clock Distribution IC,Dividers, Delay Adjust, Three Outputs LFCSP32 spot stock

Product Descriptions

The AD9514 features a multi-output clock distribution IC in a design that emphasizes low jitter and phase noise to maximize data converter performance. Other applications with demanding phase noise and jitter requirements also benefit from this part.

There are three independent clock outputs. Two of the outputs are LVPECL, and the third output can be set to either LVDS orCMOS levels. The LVPECL outputs operate to 1.6 GHz, and the third output operates to 800 MHz in LVDS mode and to

250 MHz in CMOS mode.

Each output has a programmable divider that can be set to divide by a selected set of integers ranging from 1 to 32. The phase of one clock output relative to another clock output can be set by means of a divider phase select function that serves as a coarse timing adjustment.

Product Features

1.6 GHz differential clock input

3 programmable dividers

Divide-by in range from1 to 32

Phase select for coarse delay adjust

2 independent 1.6 GHz LVPECL clock outputs

Additive broadband output jitter 225 fs rms

1 independent 800 MHz/250 MHz LVDS/CMOS clock output

Additive broadband output jitter 300 fs rms/290 fs rms

Time delays up to 10 ns

Device configured with 4-level logic pins

Space-saving, 32-lead LFCSP

Product Applications

​

Low jitter, low phase noise clock distribution

Clocking high speed ADCs, DACs, DDSs, DDCs, DUCs, MxFEs

High performance wireless transceivers

High performance instrumentation

Broadband infrastructure

ATE

Product Specifications

Product Photos

For more product information, please download the PDF
