Hot-selling and scarce 8430S10BYI-02LF Clock Generator for Cavium Processors QFP spot stock

Product Descriptions

The 8430S10I-02 is a PLL-based clock generator specifically  designed for Cavium Networks SoC processors. This high  performance device is optimized to generate the processor core  reference clock, the DDR reference clocks, the PCI/PCI-X bus  clocks, and the clocks for both the Gigabit Ethernet MAC and PHY.  The clock generator offers ultra low-jitter, low-skew clock outputs,  and edge rates that easily meet the input requirements for the  CN30XX/CN31XX/CN38XX/CN58XX processors. The output  frequencies are generated from a 25MHz external input source or an  external 25MHz parallel resonant crystal. The extended temperature  range of the 8430S10I-02 supports telecommunication, networking,  and storage requirements.

Product Features

• One selectable differential output pair for DDR 533/400/667, LVPECL, LVDS interface levels

• Nine LVCMOS/ LVTTL outputs, 20 typical output impedance

• Selectable external crystal or differential (single-ended) input source

• Crystal oscillator interface designed for 25MHz, parallel resonant crystal

• Differential input pair (CLK, nCLK) accepts LVPECL, LVDS, SST input levels

• Internal resistor bias on nCLK pin allows the user to drive CLK input with external single-ended (LVCMOS/ LVTTL) input levels

• Power output supply modes LVDS and LVPECL – full 3.3V LVCMOS – full 3.3V or mixed 3.3V core/2.5V output

• -40°C to 85°C ambient operating temperature

• Available in lead-free (RoHS 6) package

Product Applications

• Systems using Cavium Processors

• CPE Gateway Design

• Home Media Servers

• 802.11n AP or Gateway

• Soho Secure Gateway

• Soho SME Gateway

• Wireless Soho and SME VPN Solutions

• Wired and Wireless Network Security

• Web Servers and Exchange Servers

​

Product Specification

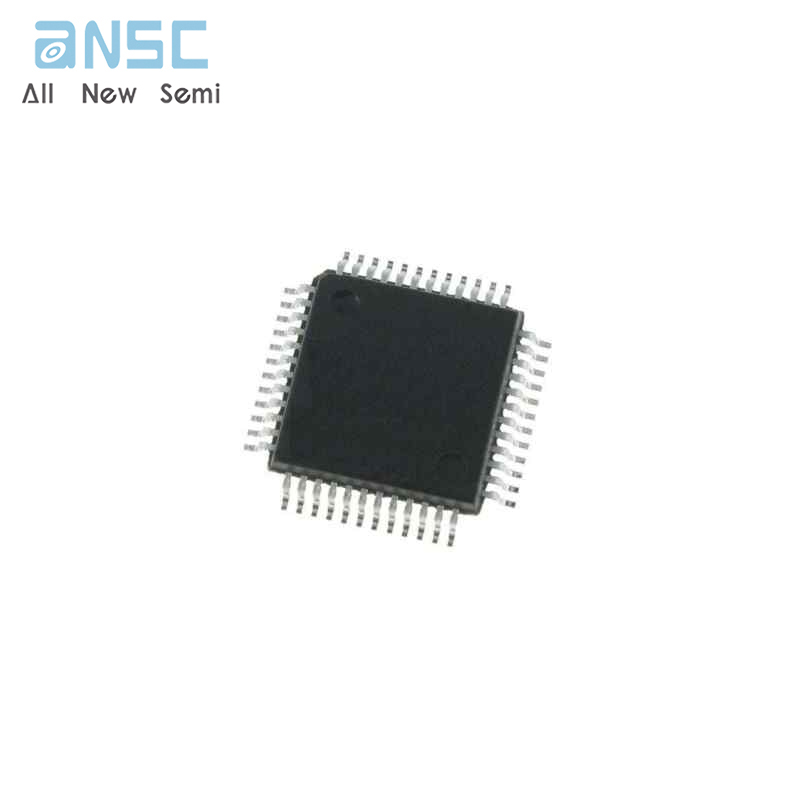

Product Photos

For more product information, please download the PDF
