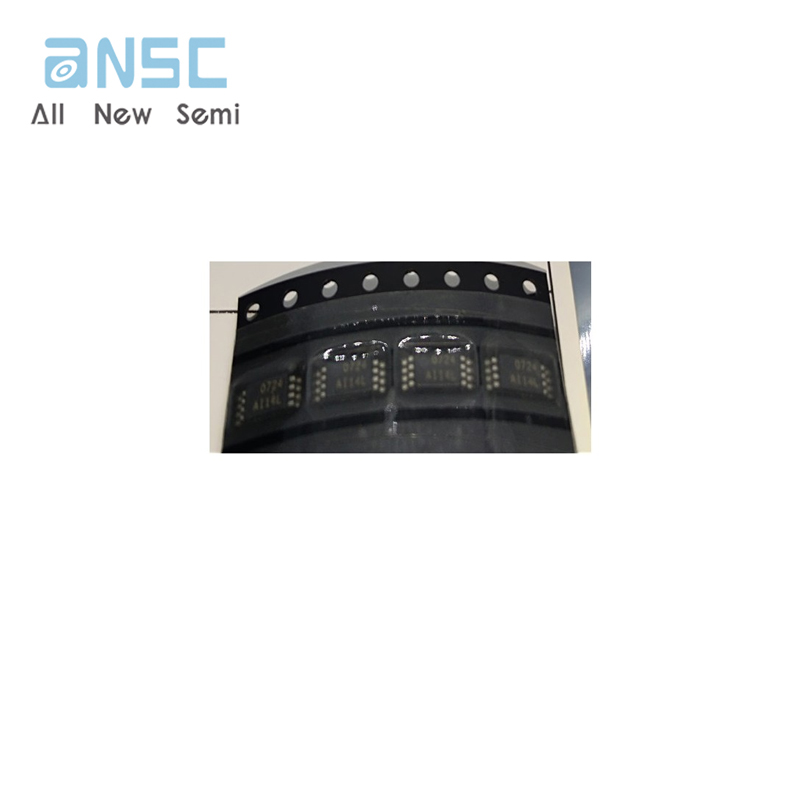

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
Hot sale Original ICS843251AGI-14LFT IC Clock Generator, 680MHz, PDSO8, 4.40 X 3 MM, 0.925 MM HEIGHT TSSOP-8
Manufacturer Product Number
ICS843251AGI-14LFT
Description
ICS843251AGI-14LFT IC Clock Generator, 680MHz, PDSO8, 4.40 X 3 MM, 0.925 MM HEIGHT TSSOP-8
Package Condition
Original
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details
| GENERAL DESCRIPTION The ICS84325 is a Crystal-to-3.3V LVPECL Frequency Synthesizer with Fanout Buffer and a member of the HiPerClockS™ family of High Performance Clock Solutions from ICS. The output frequency can be programmed using frequency select pins. The low phase noise characteristics of the ICS84325 make it an ideal clock source for Fibre Channel 1, Fibre Channel 2, Infiniband and Gigabit Ethernet applications. FEATURES • 6 differential 3.3V LVPECL outputs • Crystal oscillator interface • Output frequency range: 106.25MHz to 250MHz • Crystal input frequency: 25MHz and 25.5MHz • Output skew: 60ps (maximum) • RMS phase jitter at 212.5MHz, using a 25.5MHz crystal (637KHz to 10MHz): 2.76ps • Phase noise: Typical at 212.5MHz Offset Noise Power 100Hz ................. -92 dBc/Hz 1KHz ................. -112 dBc/Hz 10KHz ................. -120 dBc/Hz 100KHz ................ -122 dBc/Hz • 3.3V supply voltage • 0°C to 70°C ambient operating temperature • Lead-Free package available. • Industrial temperature information available upon request |
Product Description
| Type# | Description |
| ANSC PART# | ANSC- ICS843251AGI-14LFT |
| Ihs Manufacturer | Original |
| Part Package Code | TSSOP |
| Package Description | 4.40 X 3 MM, 0.925 MM HEIGHT, ROHS COMPLIANT, MO-153, TSSOP-8 |
| Pin Count | 8 |
| Additional Feature | ALSO OPERATES AT 3.3V SUPPLY |
| Length | 4.4 mm |
| Moisture Sensitivity Level | 1 |
| Number of Terminals | 8 |
| Operating Temperature-Max | 85 °C |
| Operating Temperature-Min | -40 °C |
| Output Clock Frequency-Max | 680 MHz |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | TSSOP |
| Package Equivalence Code | TSSOP8,.25 |
| Package Shape | RECTANGULAR |
| Package Style | SMALL OUTLINE, THIN PROFILE, SHRINK PITCH |
| Peak Reflow Temperature (Cel) | 260 |
| Primary Clock/Crystal Frequency-Nom | 27.2 MHz |
| Qualification Status | Not Qualified |
| Seated Height-Max | 1.2 mm |
| Supply Current-Max | 105 mA |
| Supply Voltage-Max | 2.625 V |
| Supply Voltage-Min | 2.375 V |
| Supply Voltage-Nom | 2.5 V |
| Surface Mount | YES |
| Technology | CMOS |
| Temperature Grade | INDUSTRIAL |
| Terminal Finish | Matte Tin (Sn) - annealed |
| Terminal Form | GULL WING |
| Terminal Pitch | 0.65 mm |
| Terminal Position | DUAL |
| Time@Peak Reflow Temperature-Max (s) | 30 |
| Width | 3 mm |
| uPs/uCs/Peripheral ICs Type | CLOCK GENERATOR, OTHER |
