Hot-selling and scarce ZL30361GDG2 IEEE 1588 and Synchronous Ethernet Packet Clock Network Synchronizer BGA spot stock

Product Features

• Frequency and Phase Sync over Packet Networks

• Frequency accuracy performance for WCDMA FDD, GSM, LTE-FDD and femtocell applications

• Frequency performance for ITU-T G.823 and G.824 synchronization interface, as well as G.8261 PNT PEC and CES interfaces

• Phase Synchronization performance for WCDMA-TDD, Mobile WiMAX, TD-SCDMA and CDMA2000 applications

• Client holdover and reference switching between multiple Servers

• Physical Layer Equipment Clocks Synchronizatin

• ITU-T G.8262 for SyncE EEC option 1 and 2

• ITU-T G.813 for SONET/SDH SEC option 1 and 2

• Telcordia GR-1244 and GR-253 Stratum 3 and SMC

• Support for G.781 SETS

• Any input clock rate from 1 Hz to 750 MHz

• Automatic hitless reference switching and digital holdover on reference fail

• Flexible two-stage architecture translates between arbitrary data, line coding and FEC rates

• Digital PLL with programmable bandwidth from 0.1 mHz up to 1 kHz

• Programmable synthesizers

• Any output clock rate from 1Hz to 750MHz

• Output jitter below 0.62 ps rms

• Operates from a single crystal resonator or clock oscillator

• Configurable via SPI/I2C interface

Product Specification

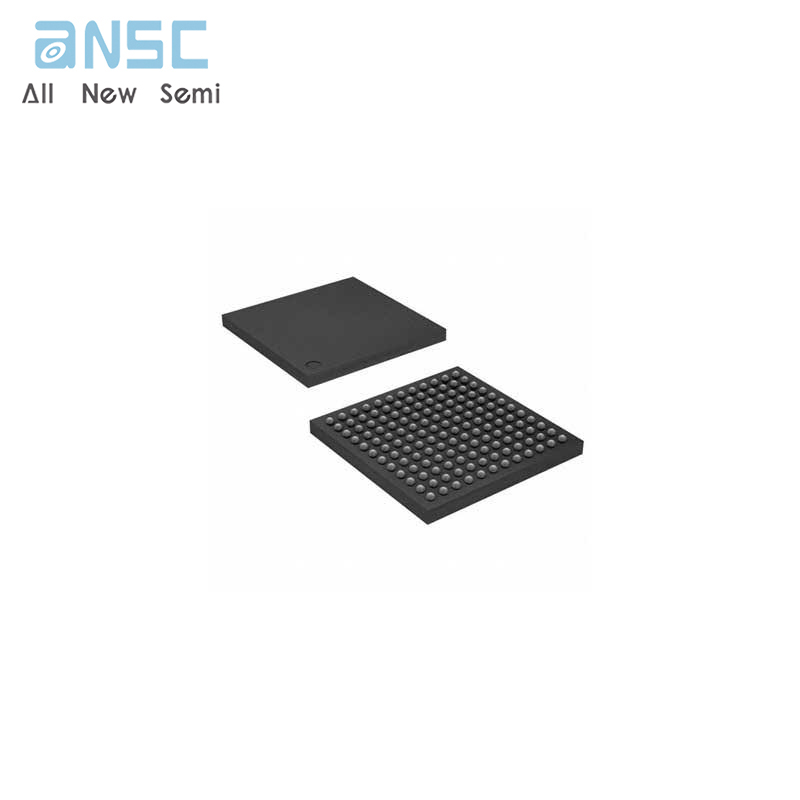

Product Photos

For more product information, please download the PDF
