Hot sale Original CY2308ZI-1H IC FANOUT BUFFER 16TSSOP Fanout Buffer (Distribution), Zero Delay Buffer IC 133.3MHz
Manufacturer Product Number
CY2308ZI-1H
Description
CY2308ZI-1H IC FANOUT BUFFER 16TSSOP Fanout Buffer (Distribution), Zero Delay Buffer IC 133.3MHz 1 16-TSSOP
Package Condition
Tube
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details

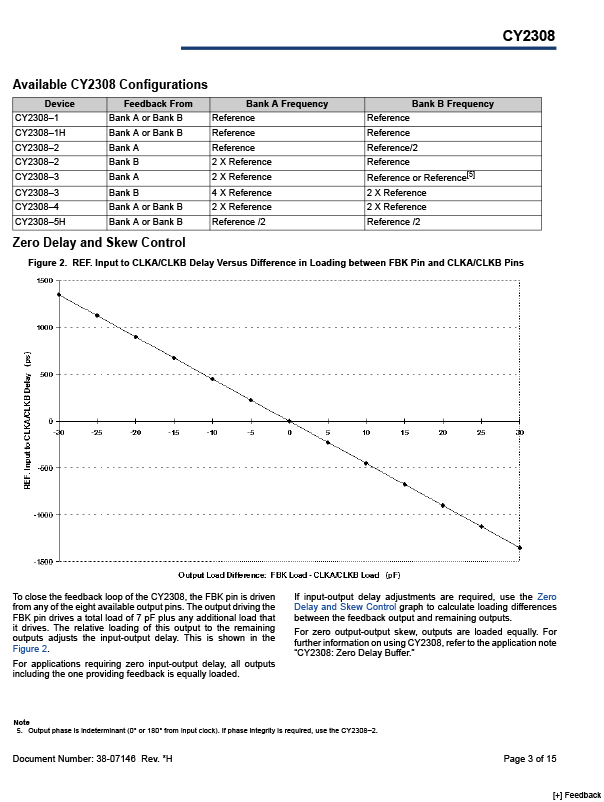

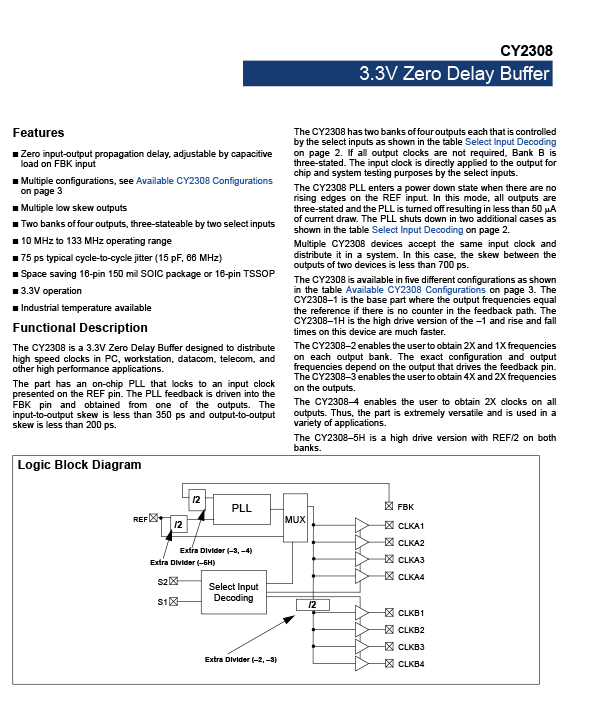

| Functional Description The CY2308 is a 3.3V Zero Delay Buffer designed to distribute high speed clocks in PC, workstation, datacom, telecom, and other high performance applications. The part has an on-chip PLL that locks to an input clock presented on the REF pin. The PLL feedback is driven into the FBK pin and obtained from one of the outputs. The input-to-output skew is less than 350 ps and output-to-output skew is less than 200 ps. Features ■ Zero input-output propagation delay, adjustable by capacitive load on FBK input ■ Multiple configurations, see “Available CY2308 Configurations” on page 3 ■ Multiple low skew outputs ■ Two banks of four outputs, three-stateable by two select inputs ■ 10 MHz to 133 MHz operating range ■ 75 ps typical cycle-to-cycle jitter (15 pF, 66 MHz) ■ Space saving 16-pin 150 mil SOIC package or 16-pin TSSOP ■ 3.3V operation ■ Industrial Temperature available |
Product Description
| Type | Description |
| ANSC PART# | ANSC- CY2308ZI-1H |
| Category | Integrated Circuits (ICs) |
| Clock/Timing | |
| Clock Generators, PLLs, Frequency Synthesizers | |
| Manufacturer | Original |
| Series | - |
| Packaging | Tube |
| Part Status | Obsolete |
| DigiKey Programmable | Not Verified |
| Type | Fanout Buffer (Distribution), Zero Delay Buffer |
| PLL | Yes with Bypass |
| Input | LVCMOS, LVTTL |
| Output | LVCMOS |
| Number of Circuits | 1 |
| Ratio - Input:Output | 1:08 |
| Differential - Input:Output | No/No |
| Frequency - Max | 133.3MHz |
| Divider/Multiplier | No/No |
| Voltage - Supply | 3V ~ 3.6V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 16-TSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 16-TSSOP |
| Base Product Number | CY2308 |

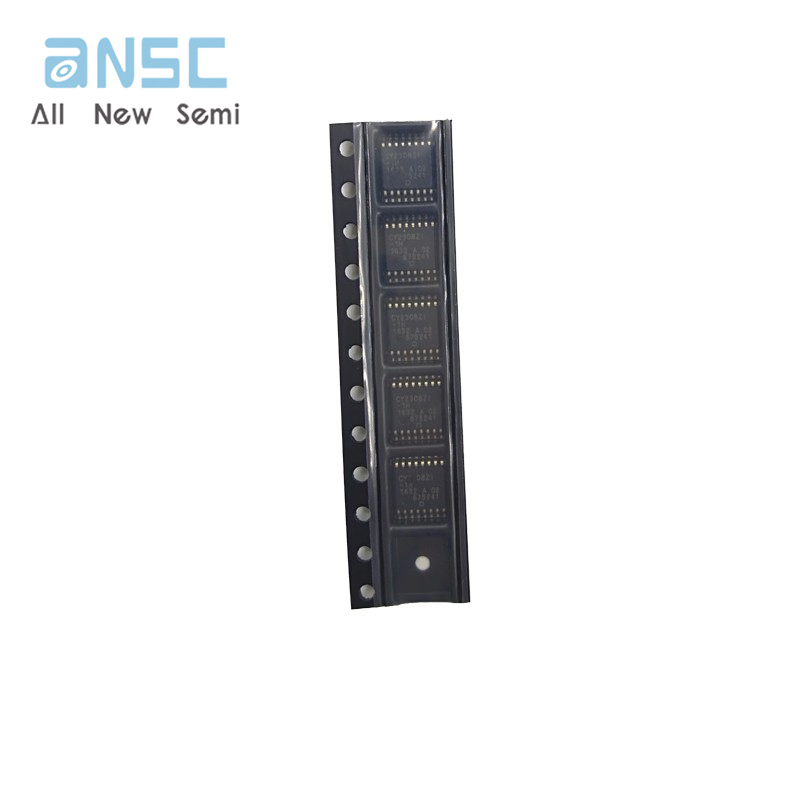

Actual image of the product

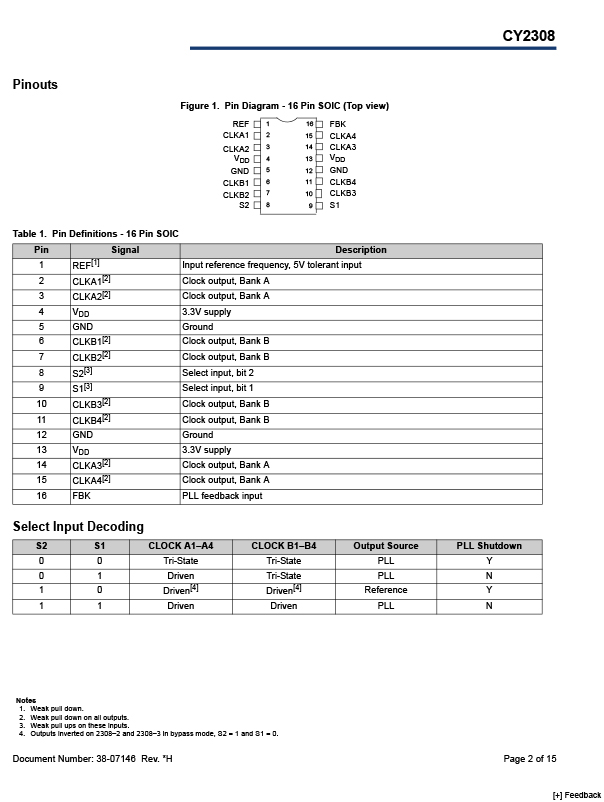

Product datasheet
For more information, please download
