Hot-selling and scarce ADF4350ABCPZ Wideband Synthesizer with Integrated VCO QFN32 spot stock

Product Descriptions

The ADF4350 allows implementation of fractional-N orinteger-N phase-locked loop (PLL) frequency synthesizersif used with an external loop filter and external referencefrequency.

The ADF4350 has an integrated voltage controlled oscillator(VCO) with a fundamental output frequency ranging from2200 MHz to 4400 MHz. In addition, divide-by-1/2/4/8 or 16circuits allow the user to generate RF output frequencies as lowas 137.5 MHz . For applications that require isolation, the RFoutput stage can be muted . The mute function is both pin - andsoftware -controllable. An auxiliary RF output is also available,which can be powered down if not in use .

Control of all the on-chip registers is through a simple 3-wireinterface . The device operates with a power supply rangingfrom 3.0 V to 3.6 V and can be powered down when not in use .

Product Features

Output frequency range: 137.5 MHz to 4400 MHz

Fractional-N synthesizer and integer-N synthesizer

Low phase noise VCO

Programmable divide-by-1/-2/-4/-8/-16 output

Typical rms jitter: <0.4 ps rms

Power supply: 3.0 V to 3.6 V

Logic compatibility: 1.8 V

Programmable dual-modulus prescaler of 4/5 or 8/9

Programmable output power level

RF output mute function

3-wire serial interface

Analog and digital lock detect

Switched bandwidth fast-lock mode

Cycle slip reduction

Product Applications

Wireless infrastructure (W-CDMA,TD-SCDMA,WiMAX,GSM, PCS, DCS, DECT)

Test equipment

Wireless LANs, CATV equipment

Clock generation

Product Specification

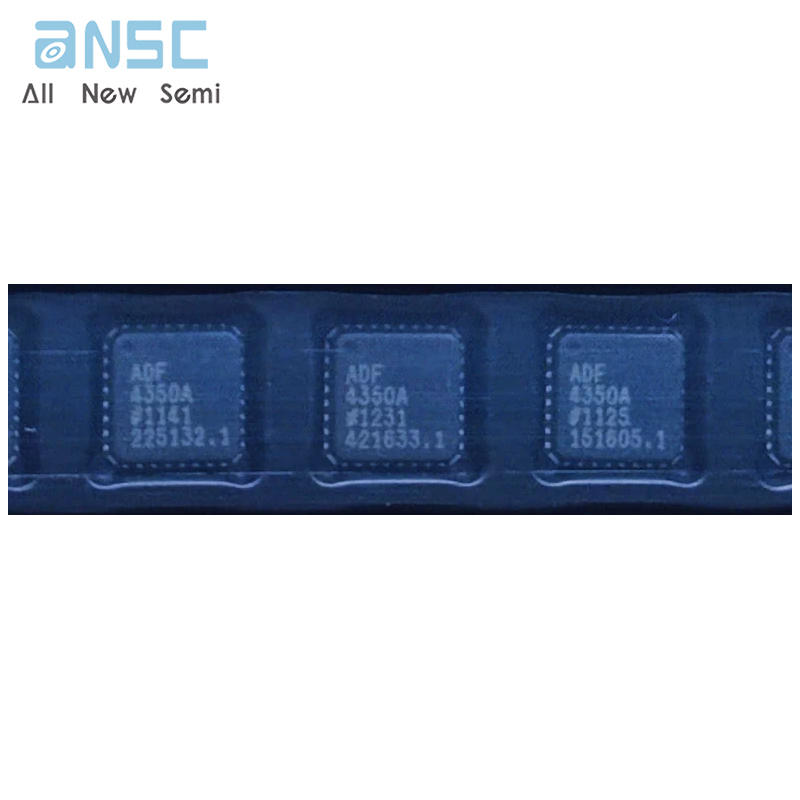

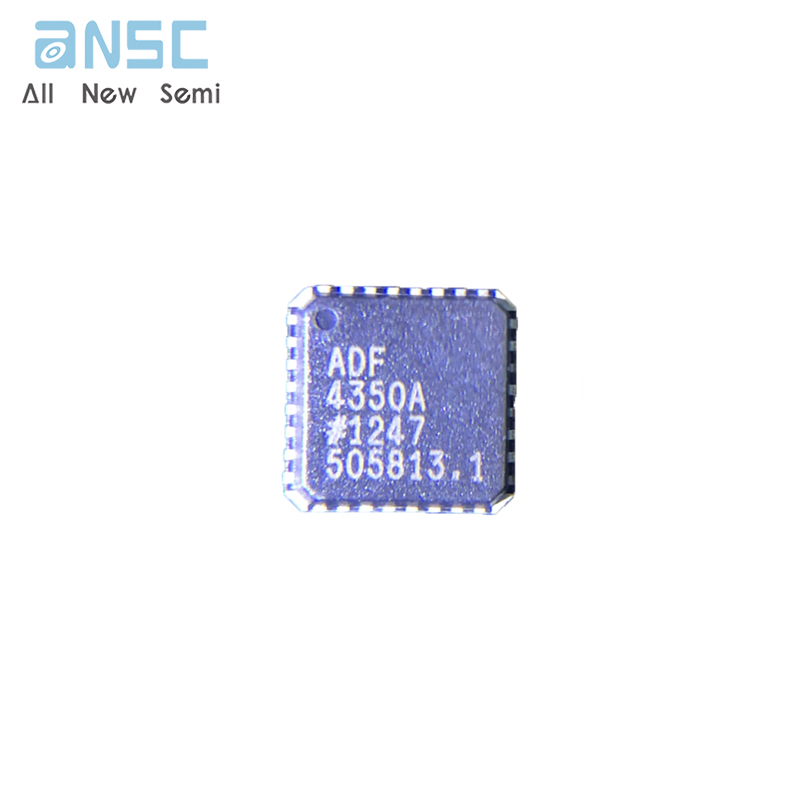

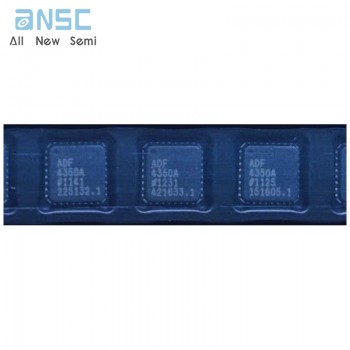

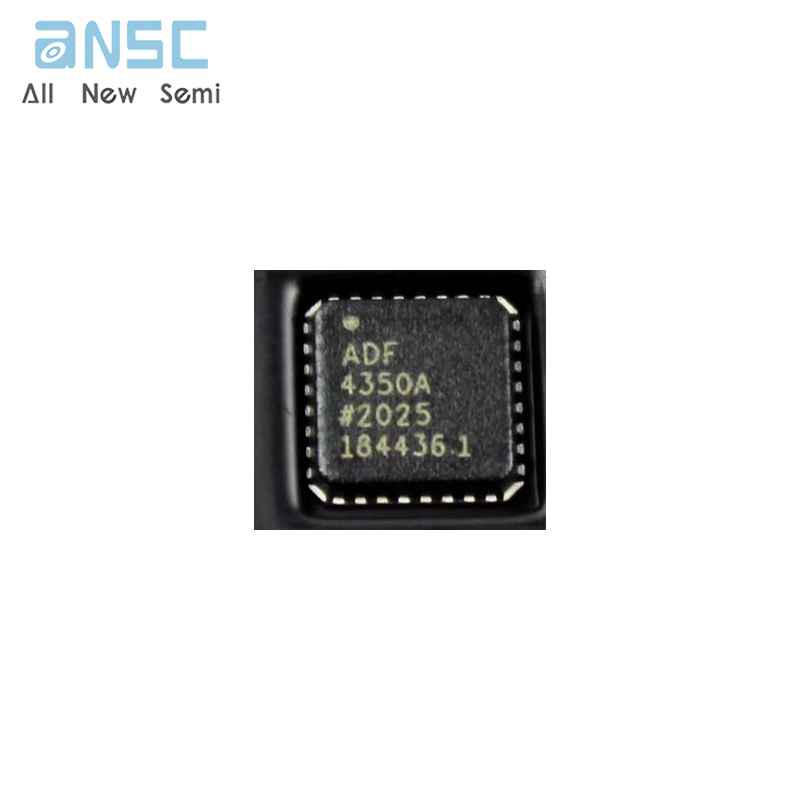

Product Photos

For more product information, please download the PDF
