Hot-selling and scarce ADF4350BCPZ Wideband Synthesizer with Integrated VCO LFCSP32 spot stock

Product Descriptions

The ADF4350 allows implementation of fractional-N or integer-N phase-locked loop (PLL) frequency synthesizers if used with an external loop filter and external reference frequency.

The ADF4350 has an integrated voltage controlled oscillator(VCO) with a fundamental output frequency ranging from2200 MHz to 4400 MHz. In addition, divide-by-1/2/4/8 or 16 circuits allow the user to generate RF output frequencies as low as 137.5 MHz. For applications that require isolation, the RF output stage can be muted. The mute function is both pin- and software-controllable.  An auxiliary RF output is also available, which can be powered down if not in use.

Control of all the on-chip registers is through a simple 3-wire interface. The device operates with a power supply ranging from 3.0 V to 3.6 V and can be powered down when not in use.

​

Product Features

Output frequency range: 137.5 MHz to 4400 MHz

Fractional-N synthesizer and integer-N synthesizer

Low phase noise VCO

Programmable divide-by-1/-2/-4/-8/-16 output

Typical rms jitter: 0.5 ps rms

Power supply: 3.0 V to 3.6 V

Logic compatibility: 1.8 V

Programmable dual-modulus prescaler of 4/5 or 8/9

Programmable output power level

RF output mute function

3-wire serial interface

Analog and digital lock detect

Switched bandwidth fast-lock mode

Cycle slip reduction

Product Applications

Wireless infrastructure (W-CDMA,TD-SCDMA,WiMAX,

GSM, PCS, DCS, DECT)

Test equipment

Wireless LANs, CATV equipment

Clock generation

Product Specifications

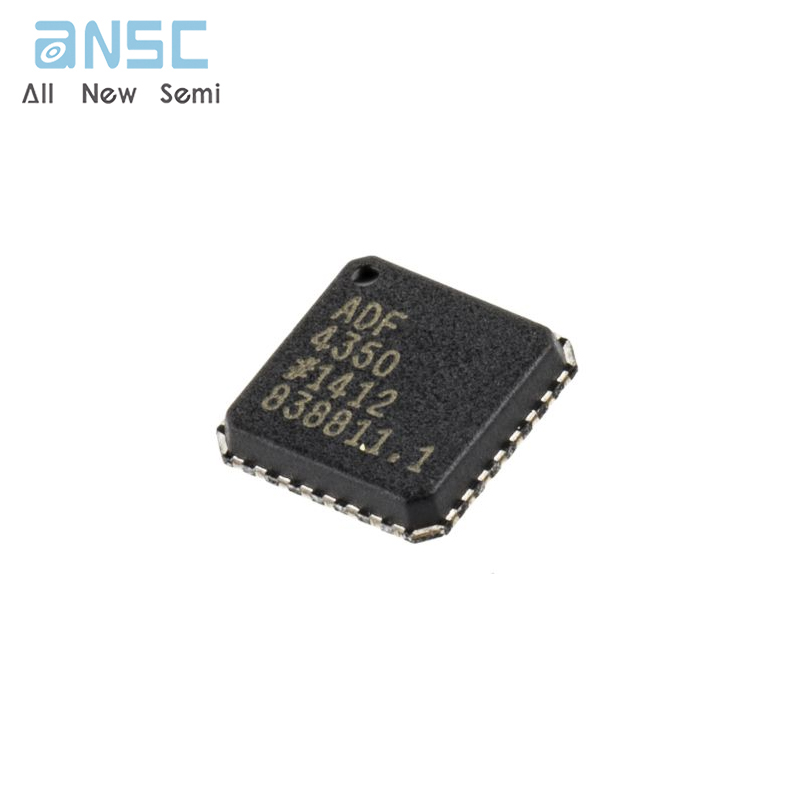

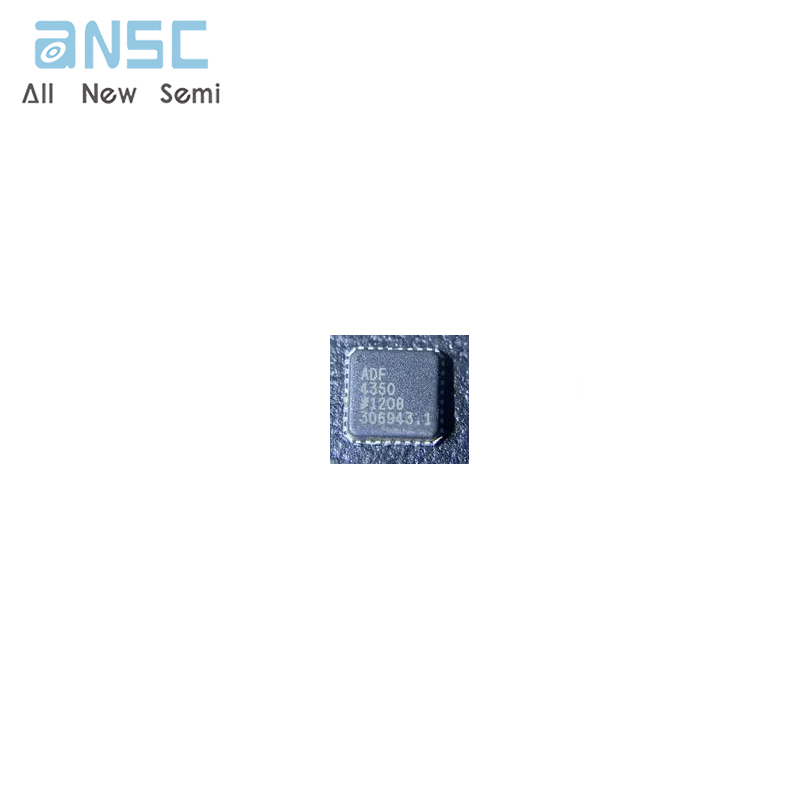

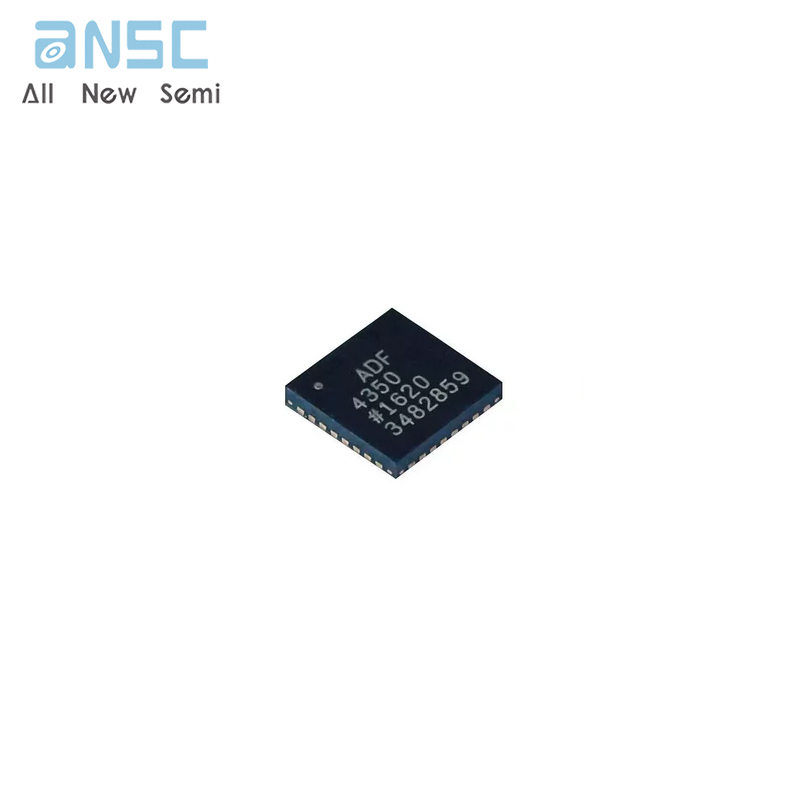

Product Photos

For more product information, please download the PDF
