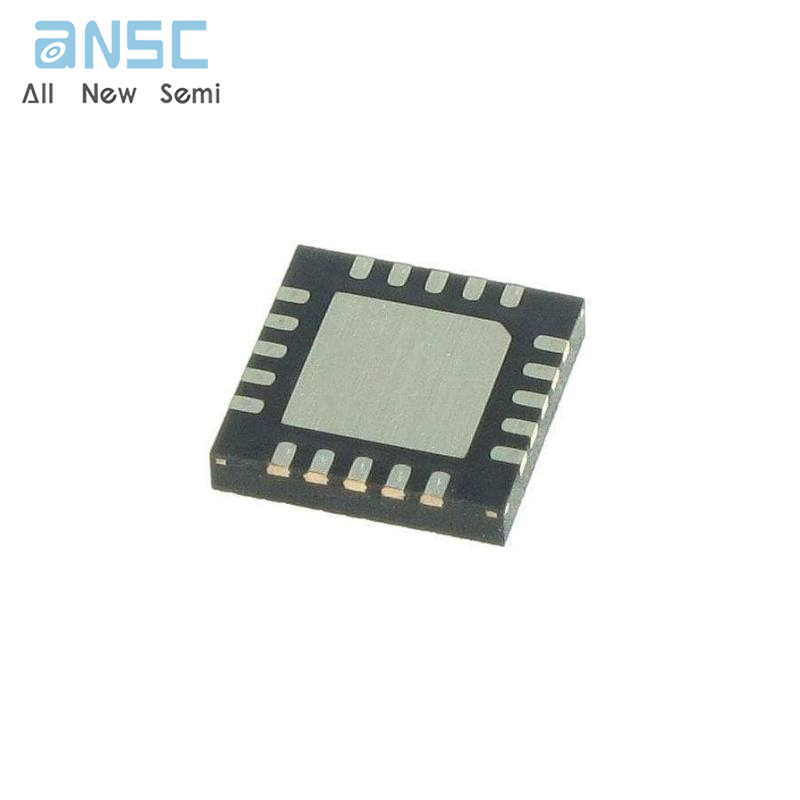

Hot-selling and scarce ADF4110BCPZ RF PLL Frequency Synthesizers LFCSP20 spot stock

Product Descriptions

The ADF4110 family of frequency synthesizers can be used toimplement local oscillators in the upconversion and downconversion sections of wireless receivers and transmitters. Theyconsist of a low noise digital PFD (phase frequency detector), aprecision charge pump, a programmable reference divider,programmable A and B counters, and a dual -modulus prescaler(P/P + 1). The A (6-bit) and B (13-bit) counters, in conjunctionwith the dual -modulus prescaler (P/P + 1), implement an Ndivider (N = BP + A). In addition, the 14-bit reference counter(R counter) allows selectable REFIN frequencies at the PFDinput. A complete phase-locked loop (PLL) can be implementedif the synthesizer is used with an external loop filter and voltagecontrolled oscillator (VCO).

Control of all the on-chip registers is via a simple 3-wireinterface . The devices operate with a power supply rangingfrom 2.7 V to 5.5 V and can be powered down when not in use .

Product Features

ADF4110: 550 MHz; ADF4111: 1.2 GHz; ADF4112: 3.0 GHz;

ADF4113: 4.0 GHz

2.7 V to 5.5 V power supply

Separate charge pump supply (VP) allows extended tuning

voltage in 3 V systems

Programmable dual-modulus prescaler 8/9, 16/17, 32/33,

64/65

Programmable charge pump currents

Programmable antibacklash pulse width

3-wire serial interface

Analog and digital lock detect

Hardware and software power-down mode

Product Applications

Base stations for wireless radio (GSM, PCS, DCS, CDMA,

WCDMA)

Wireless handsets (GSM, PCS, DCS, CDMA,WCDMA)

Wireless LANS

Communications test equipment

CATV equipment

Product Specification

Product Photos

For more product information, please download the PDF
