Hot-selling and scarce AD9516-3BCPZ 14-Output Clock Generator QFN64 spot stock

Product Descriptions

The AD9516-3 ¹ provides a multi-output clock distributionfunction with subpicosecond jitter performance, along with an onchip PLL and VCO.The on-chip VCO tunes from 1.75 GHz to2.25 GHz . Optionally, an external VCO/VCXO of up to 2.4 GHzcan be used

The AD9516-3 emphasizes low jitter and phase noise tomaximize data converter performance,and it can benefit otherapplications with demanding phase noise and jitter requirements .

The AD9516-3 features six LVPECL outputs (in three pairs)and four LVDS outputs (in two pairs). Each LVDS output canbe reconfigured as two CMOS outputs . The LVPECL outputsoperate to 1.6 GHz, the LVDS outputs operate to 800 MHz, andthe CMOS outputs operate to 250 MHz .

Product Features

Low phase noise, phase-locked loop (PLL)

On-chip VCO tunes from 1.75 GHz to 2.25 GHz

External VCO/VCXO to 2.4 GHz optional

1 differential or 2 single-ended reference inputs

Reference monitoring capability

Automatic revertive and manual reference

switchover/holdover modes

Accepts LVPECL, LVDS, or CMOS references to 250 MHz

Programmable delays in path to PFD

Digital or analog lock detect, selectable

6 pairs of 1.6 GHz LVPECL outputs

Each output pair shares a 1-to-32 divider with coarse

phase delay

Additive output jitter: 225 fs rms

Channel-to-channel skew paired outputs of <10 ps

4 pairs of 800 MHz LVDS clock outputs

Each output pair shares two cascaded 1-to-32 dividers

with coarse phase delay

Additive output jitter: 275 fs rms

Fine delay adjust (Δt) on each LVDS output

Each LVDS output can be reconfigured as two 250 MHz

CMOS outputs

Automatic synchronization of all outputs on power -up

Manual output synchronization available

64-lead LFCSP

Product Applications

Low jitter, low phase noise clock distribution

10/40/100 Gb/sec networking line cards, including SONET,

Synchronous Ethernet, OTU2/3/4

Forward error correction (G.710)

Clocking high speed ADCs, DACs, DDSs, DDCs, DUCs, MxFEs

High performance wireless transceivers

ATE and high performance instrumentation

Product Specification

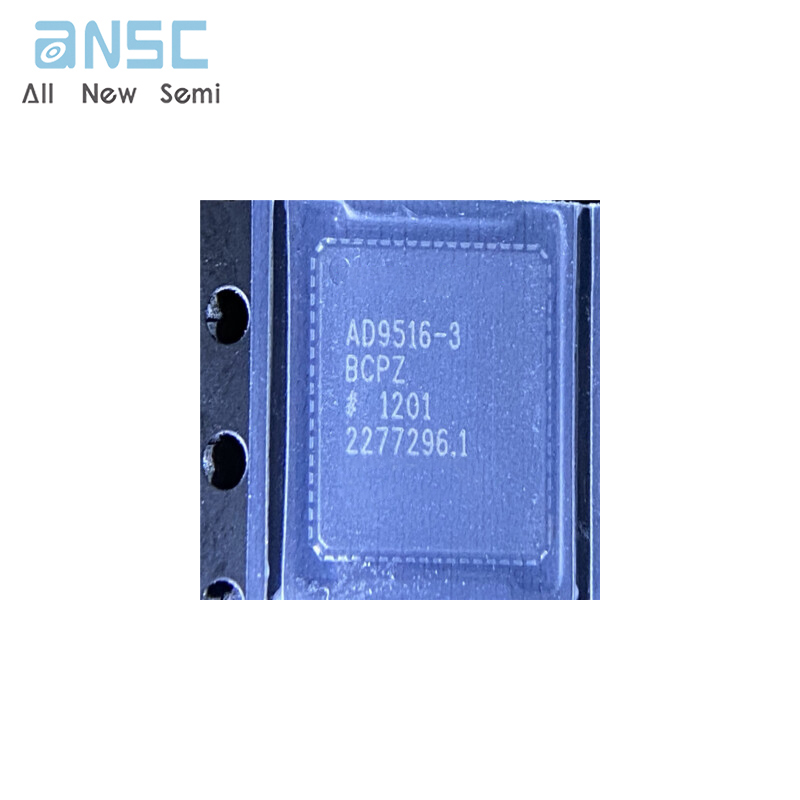

Product Photos

For more product information, please download the PDF
