Hot-selling and scarce NB3F8L3005CMNTXG 1:5 LVCMOS Fanout Buffer QFN spot stock

Product Descriptions

​The NB3F8L3005C is a 2:1:5 Clock / Data fanout buffer operating on a 3.3 V / 2.5 V Core VDD and two flexible 3.3 V / 2.5 V / 1.8 V / 1.5 V VDDO x supplies which must be equal or less than V DD.

A Mux selects between a Crystal input, or a differential/SE Clock / Data inputs. Differential Inputs accept LVPECL, LVDS, HCSL, or SSTL and Single−Ended levels. The MUX control line, SEL selects CLK/CLK, or Crystal input pins per Table 3. The Crystal input is disabled when  a  Clock input is  selected.  Output  enable pin,  OE, synchronously forces a High Impedance state (Hi−Z) when Low per Table 4.

Outputs consist of five single−ended LVCMOS outputs.

Product Features

• Five LVCMOS / LVTTL Outputs up to 200 MHz

• Differential Inputs Accept LVPECL, LVDS, HCSL, SSTL, or LVCMOS/LVTTL

• Crystal Interface

• Crystal Input Frequency Range: 10 MHz to 50 MHz

• Output Skew: 10 ps Typical

• Additive RMS Phase Jitter @ 156.25 MHz, (12 kHz – 20 MHz): 0.03 ps (Typical)

• Synchronous Output Enable

• Output Defined Level When Input is Floating

• Power Supply Modes:

♦  Single 3.3 V ± 5%

♦  Single 2.5 V ± 5%

♦  Mixed 3.3 V ± 5% Core/2.5 V ± 5% Output Operating Supply

♦  Mixed 3.3 V ± 5% Core/1.8 V ± 0.2 V Output Operating Supply

♦  Mixed 3.3 V ± 5% Core/1.5 V ± 0.15 V Output Operating Supply

♦  Mixed 2.5 V ± 5% Core/ 1.8 V ± 0.2 V Output Operating Supply

♦  Mixed 2.5 V ± 5% Core /1.5 V ± 0.15 V Output Operating Supply

• Two Separate Output Bank Power Supplies

• Industrial Temperature Range: −40°C to 85°C

• These are Pb−Free Devices

Product Applications

• Clock Distribution

• Networking and Communications

• High End Computing

• Wireless and Wired Infrastructure

Product Specification

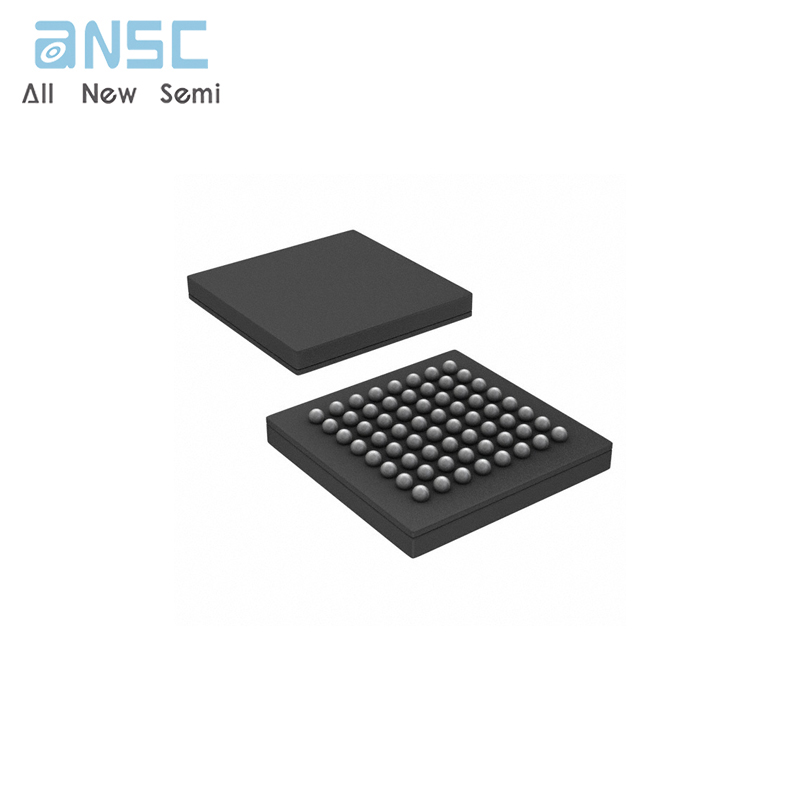

Product Photos

For more product information, please download the PDF
