Hot-selling and scarce CDCLVC1104PW x 3.3-V and 2.5-V LVCMOS High-Performance Clock Buffer TSSOP8 spot stock

Product Descriptions

The CDCLVC11xx is a modular,  high-performance, low-skew,  general-purpose clock buffer family from Texas Instruments.

The entire family is designed with a modular approach in mind.  It  is intended to round up TI's series of LVCMOS clock generators.

Seven different  fan-out  variations,  1:2 to 1:12,  are available.  All  of  the devices are pin-compatible to each other for easy handling.

All  family members share the same high performing characteristics such as low additive jitter, low skew, and wide operating temperature range.

The CDCLVC11xx supports an asynchronous output enable control (1G) which switches the outputs into a low state when 1G is low.

The CDCLVC11xx family operates in a 2. 5-V and3. 3-V environment    and  are  characterized  for operation from –40°C to 85°C.

Product Features

•   High-Performance 1:2, 1:3, 1:4, 1:6, 1:8, 1:10,1:12 LVCMOS Clock Buffer Family

•   Very Low Pin-to-Pin Skew < 50 ps

•   Very Low Additive Jitter < 100 fs

•   Supply Voltage: 3.3 V or 2.5 V

•   fmax = 250 MHz for 3.3 V

fmax = 180 MHz for 2.5 V

•   Operating Temperature Range: –40°C to 85°C

•   Available in 8- , 14- , 16- , 20- , 24-Pin TSSOP Package (All Pin-Compatible)

Product Applications

General-Purpose Communication,  Industrial,  and Consumer Applications

Product Specification

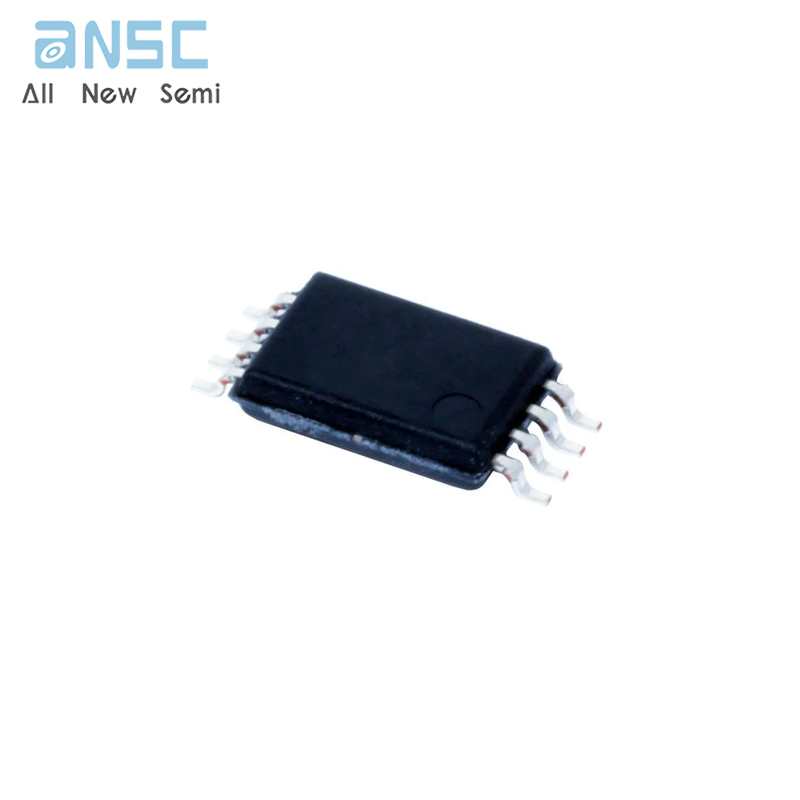

Product Photos

For more product information, please download the PDF
