Hot sale original ZX62-AB-5PA(31) USB - micro AB USB 2.0 Receptacle Connector 5 Position Surface Mount, Right Angle
Manufacturer Product Number
ZX62-AB-5PA(31)
Description
ZX62-AB-5PA(31) CONN RCPT USB2.0 MICRO AB SMD RA
Package Condition
Tape & Reel (TR) Cut Tape (CT)
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details
| ■Overview Extremely small high reliability connectors complying with physical, electrical and environmental requirements of Micro-USB standard (USB 2.0). Receptacles and plugs are available in a wide variety of mounting and termination configurations, permitting their use in various applications. ■Features 1. Size reduction Compared with the standard Mini-B connectors, the size of ZX connectors is reduced by approximately 60% while still allowing a high-speed data transfer of 480 Mbps, specified in USB 2.0. 2. Receptacle styles Two interface configurations: Micro-B and Micro-AB in standard, mid-mount and reverse mounting styles. SMT and through-hole (shell) PC board terminations 3. Plug styles Corresponding to the receptacle styles, two interface configurations: Micro-B and Micro-A, with direct wire or PCB wire soldering. Several plug styles can be used for data transmission, earphone or charging applications. 4. High durability Unique contact and lock configuration assures high durability while maintaining easy insertion / disconnection. Fully mated condition (when mated with corresponding HRS connector) is confirmed by a definite tactile sensation 5. RoHS compliant All components and materials comply with the requirements of EU directive 20/95/EC ■Applications Mobile phones, PDA, portable music players, digital cameras, digital camcorders and other applications requiring high reliability Micro-B interface connectors. |
Product Description
| Type | Description |
| ANSC PART# | ANSC - ZX62-AB-5PA(31) |
| Category | Connectors, Interconnects |
| USB, DVI, HDMI Connectors | |
| USB, DVI, HDMI Connector Assemblies | |
| Manufacturer | Original |
| Series | ZX |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| / | |
| Part Status | Active |
| Connector Type | USB - micro AB |
| Number of Contacts | 5 |
| Gender | Receptacle |
| Specifications | USB 2.0 |
| Mounting Type | Surface Mount, Right Angle |
| Mounting Feature | Bottom Mount, Horizontal |
| Termination | Solder |
| Features | Pick and Place, Solder Retention |
| Ingress Protection | - |
| Operating Temperature | -30°C ~ 85°C |
| Number of Ports | 1 |
| Current Rating (Amps) | 1A per Contact |
| Voltage - Rated | 30VAC |
| Mating Cycles | 10000 |
| Shielding | Shielded |
| Contact Finish | Gold |
| Shell/Shielding Material | Steel, Stainless |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Gray |
| Base Product Number | ZX62 |

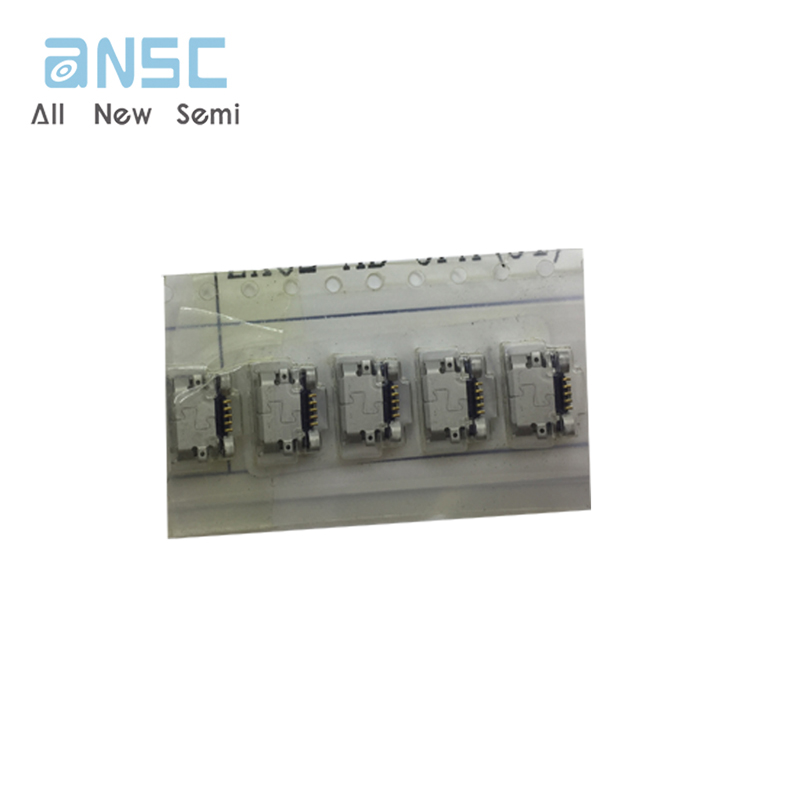

Product Photos

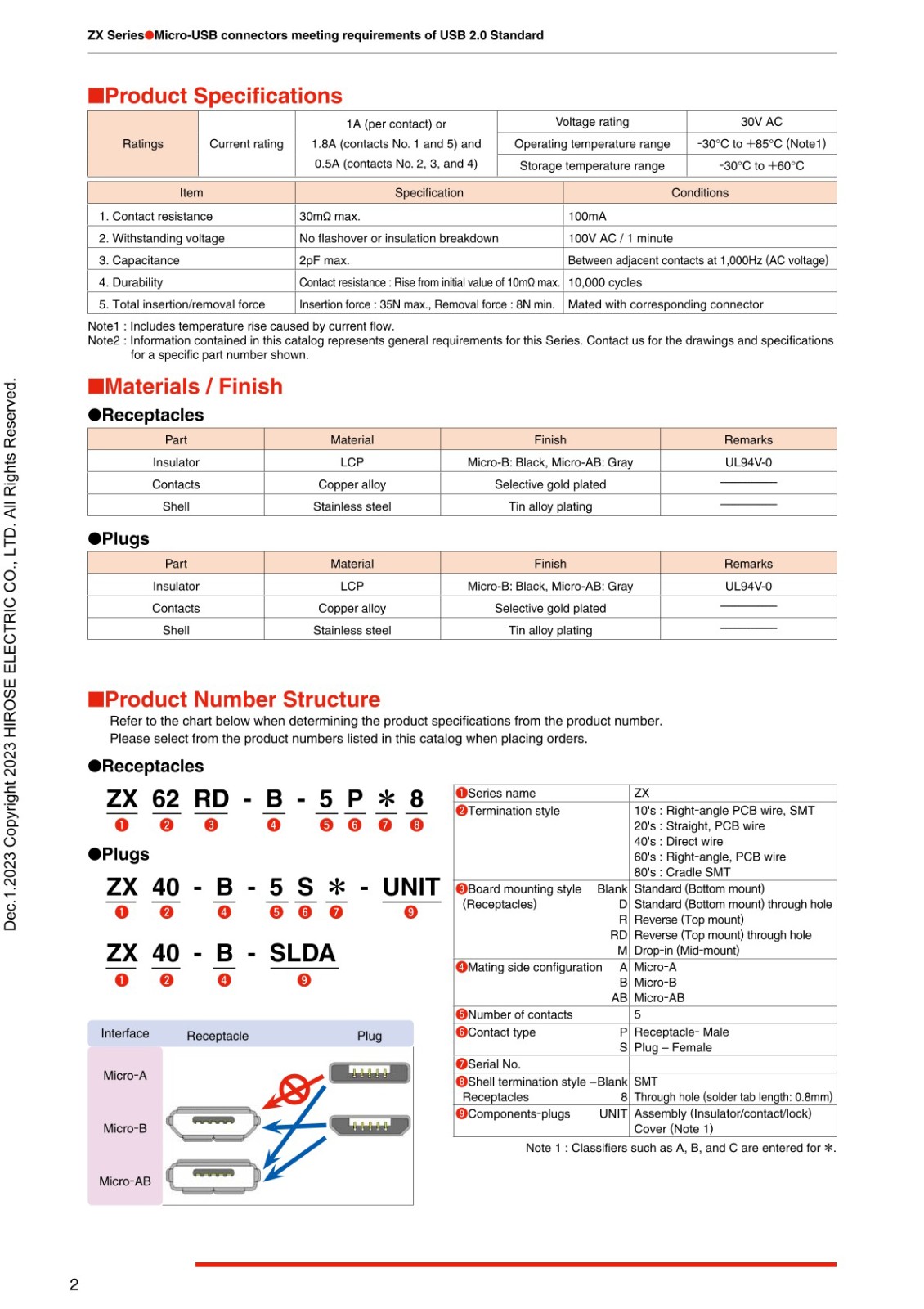

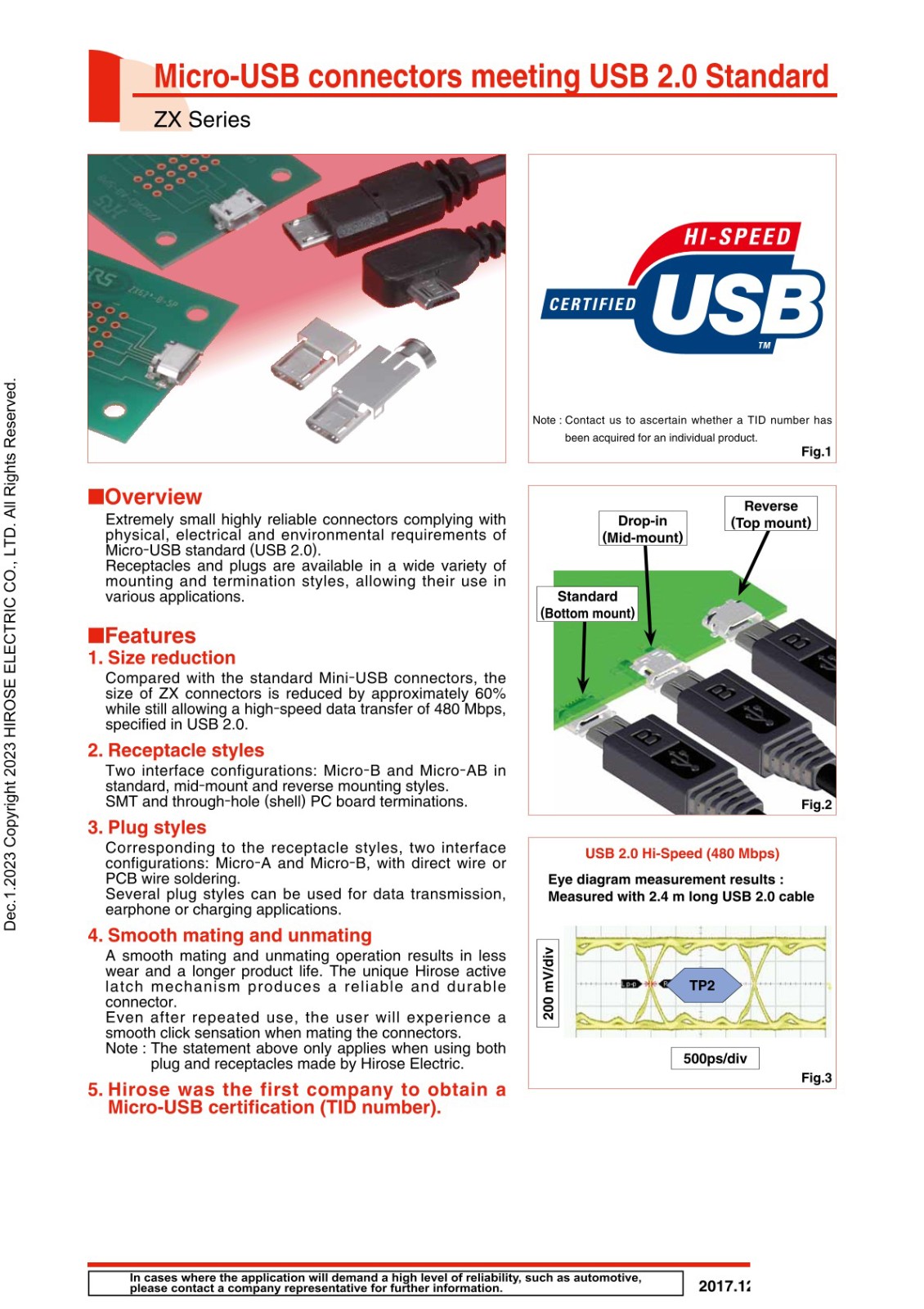

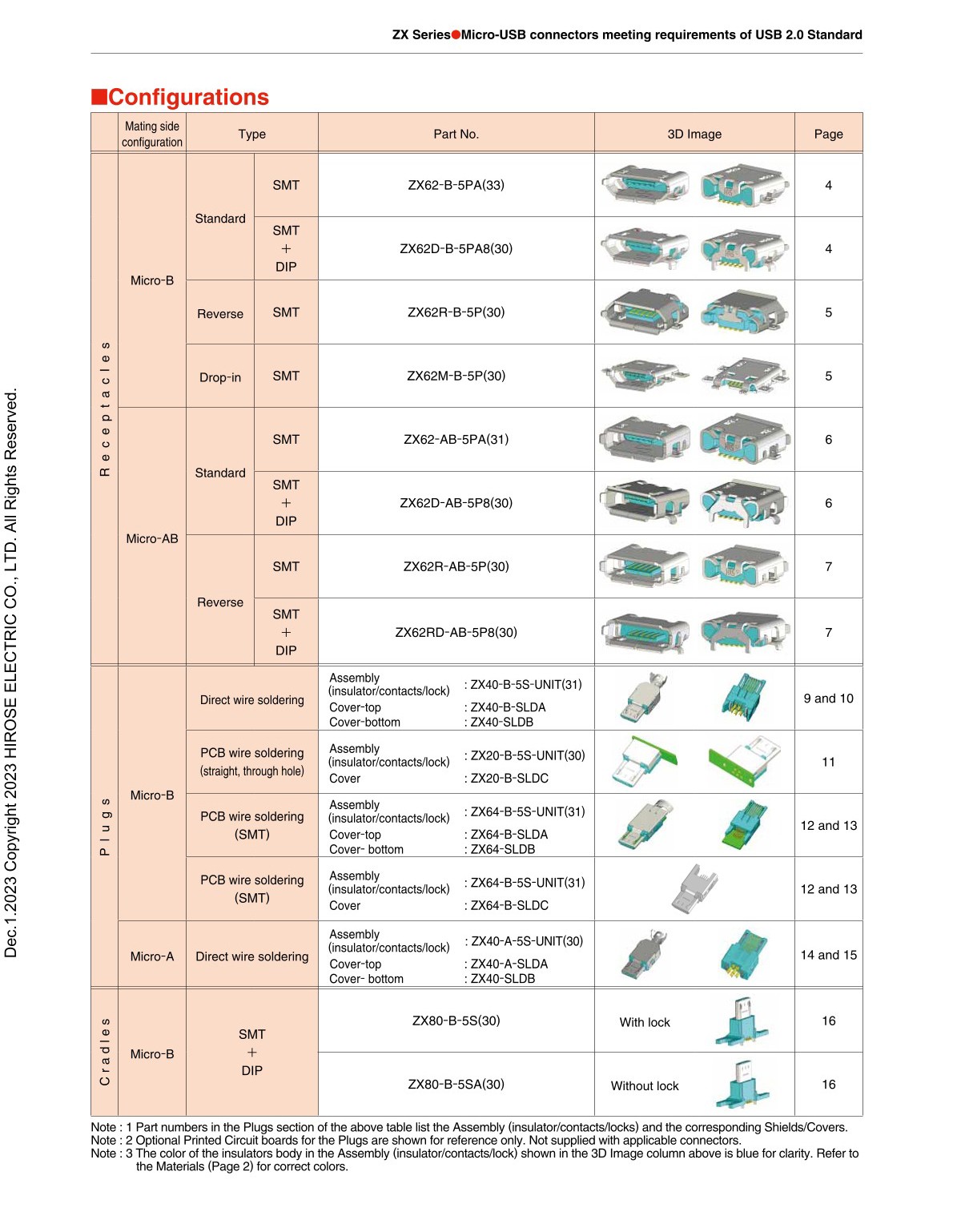

Product datasheet
