Hot sale original electronics 1761682-3 CONN HEADER R/A 10POS 2.54MM Connector Header Through Hole, Right Angle 10 position

Manufacturer Product Number

1761682-3

Description

1761682-3 CONN HEADER R/A 10POS 2.54MM Connector Header Through Hole, Right Angle 10 position 0.100" (2.54mm)

Package Condition

Bulk

Product Details
Reviews

We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser. All intellectual property rights of products on our website belong to the original factory! (In addition to ANSC's own customized products)

Product Details

HEADER ASSEMBLY, VERTICAL, LOW PROFILE, IDC

Product Description

Type	Description
ANSC PART#	ANSC- 1761682-3
Category	Connectors, Interconnects
	Rectangular Connectors
	Headers, Male Pins
Mfr	/
Series	AMP-Latch
Packaging	Bulk
Part Status	Active
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Number of Positions	10
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting Type	Through Hole, Right Angle
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.240" (6.10mm)
Contact Length - Post	0.114" (2.90mm)
Overall Contact Length	-
Insulation Height	0.350" (8.89mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	15.0µin (0.38µm)
Contact Finish - Post	Tin
Contact Material	Phosphor Bronze
Insulation Material	Polycyclohexylenedimethylene Terephthalate (PCT)
Features	Keying Slot
Operating Temperature	-65°C ~ 105°C
Ingress Protection	-
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	1A per Contact
Voltage Rating	250VAC
Mated Stacking Heights	-
Contact Finish Thickness - Post	100.0µin (2.54µm)
Applications	-
Base Product Number	1761682

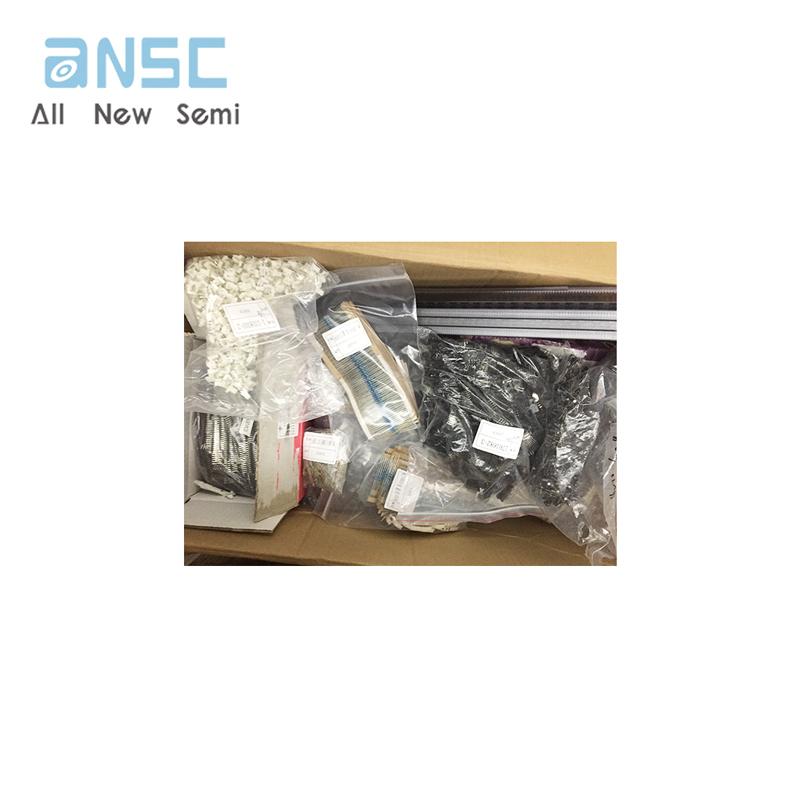

Actual image of the product

1761682-3

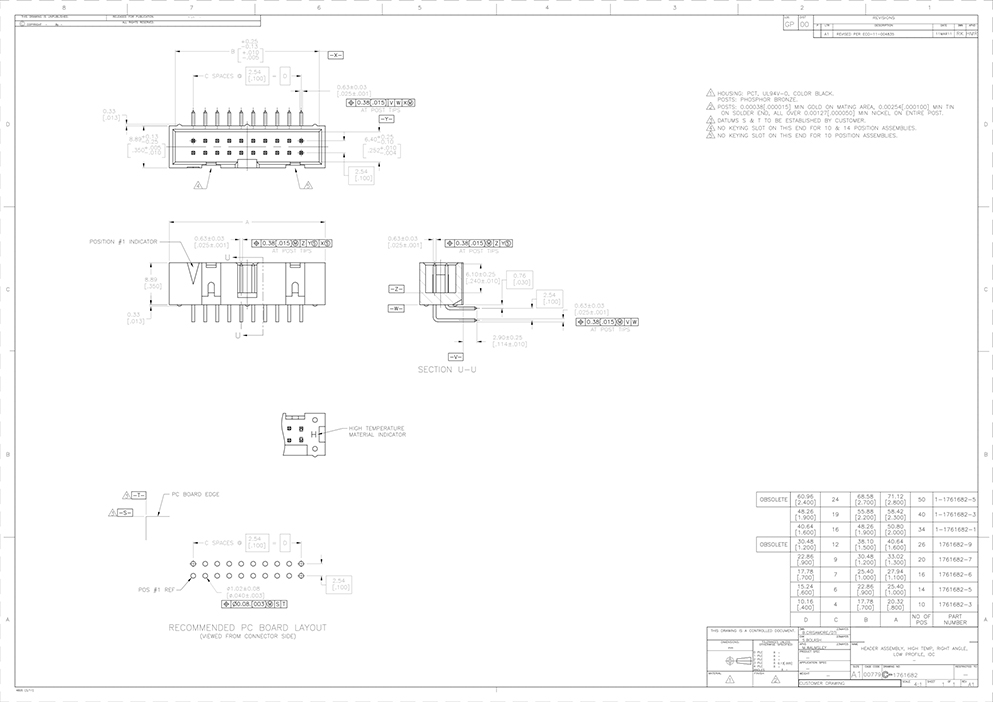

Product datasheet

For more information, please download

1761682-3-1
