Hot sale Original 691323100007 Connector 7 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.138" (3.50mm) Vertical
Manufacturer
Manufacturer Product Number
691323100007
Description
Original 691323100007 Connector 3.50 MM TERMINAL BLOCK HEADER 7 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.138" (3.50mm) Vertical Through Hole
Package Condition
Bulk
Product Overview
The device's mounting type is Through Hole.In order to package the product, a Bulk case is used.It belongs to the WR-TBL Series 3231 Series of products.The device runs in -40°C~105°C Operating Temperature.This part shares lots of benefits with other Header, Male Pins, Shrouded (4 Side) products.
Product Features
WR-TBL Series 3231 series
Product Applications
There are a lot of Würth Elektronik
691323100007 Terminal Blocks applications.
· Industrial Automation
· Transportation
· Embedded systems
· Datacom
· Communication
· Medical technology
· Military Technology
· Measuring & Control Technology
· Instrumentation
· Automotive Electronics
Product Description
|
Type |
Description |
|---|---|
|
ANSC PART# |
ANSC - 691323100007 |
|
Category |
Connectors, Interconnects Terminal Blocks Headers, Plugs and Sockets |
|
Manufacturer |
Würth Elektronik |
|
Series |
WR-TBL Series 3231 |
|
Packaging |
Bulk |
|
Part Status |
Active |
|
Type |
Header, Male Pins, Shrouded (4 Side) |
|
Number of Positions |
7 |
|
Positions Per Level |
7 |
|
Number of Levels |
1 |
|
Pitch |
0.138" (3.50mm) |
|
Header Orientation |
Vertical |
|
Plug Wire Entry |
- |
|
Termination Style |
Solder |
|
Mounting Type |
Through Hole |
|
Current - IEC |
- |
|
Current - UL |
10 A |
|
Voltage - UL |
300 V |
|
Wire Gauge or Range - AWG |
- |
|
Wire Gauge or Range - mm² |
- |
|
Color |
Green |
|
Operating Temperature |
-40°C ~ 105°C |
|
Contact Mating Finish |
Tin |
|
Features |
Mating Flange |
|
Material Flammability Rating |
UL94 V-0 |
|
Ingress Protection |
- |
|
Screw Size |
- |
|
Torque - Screw |
- |
|
Wire Strip Length |
- |
|
Contact Material |
Brass |
|
Housing Material |
Polyamide (PA66), Nylon 6/6 |
|
Contact Tail Length |
0.138" (3.50mm) |
|
Insulation Height |
0.362" (9.20mm) |

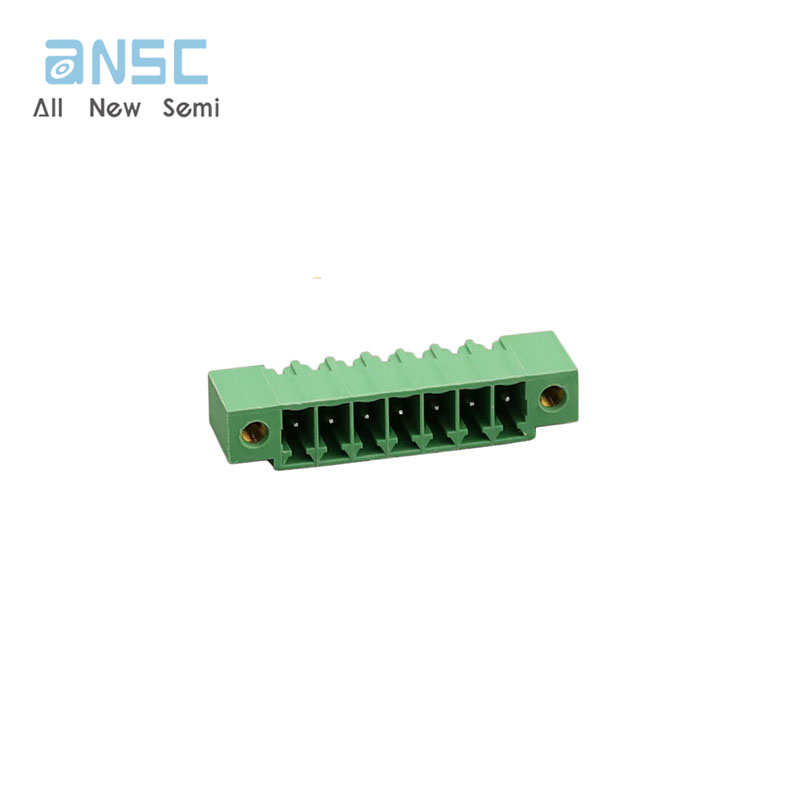

Actual image of the product

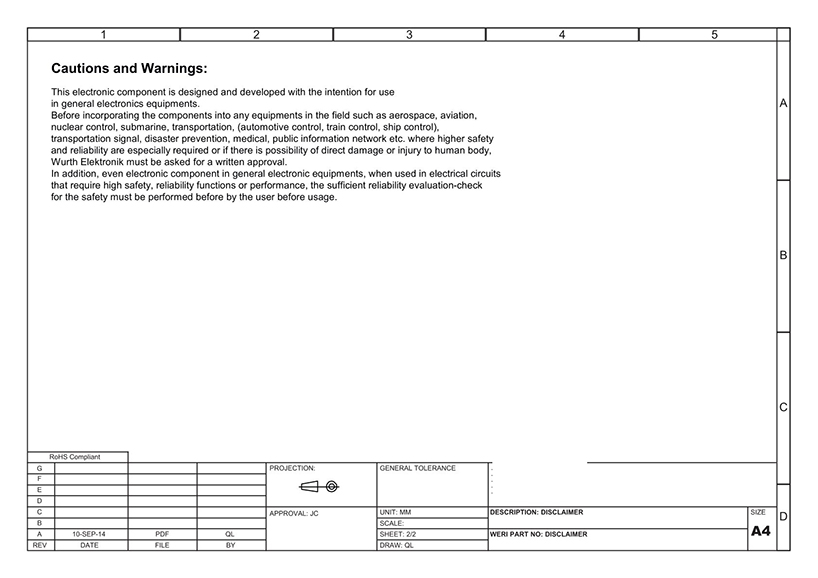

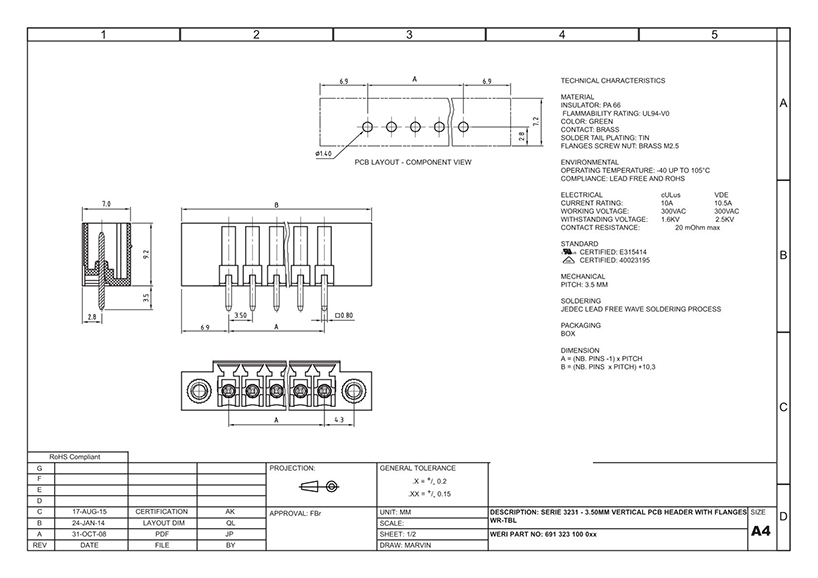

Product datasheet
For more information, please download
