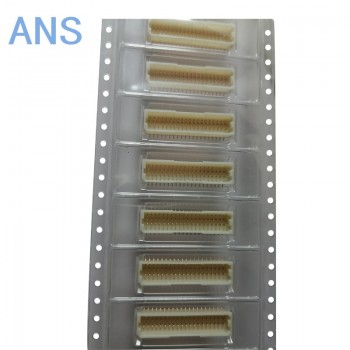

Hot offer One-Stop New Original IC BM40B-SRDS-G-TF(LF)(SN) SMD C 1.0mm pitch/Disconnectable Crimp style connectors
Manufacturer Product Number
BM40B-SRDS-G-TF(LF)(SN)
Description
Connectors, Interconnects
Package Condition
REEL
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
| Part# | BM40B-SRDS-G-TF(LF)(SN) |
| Category | Connectors, Interconnects |
| Rectangular Connectors | |
| Headers, Male Pins | |
| Mfr | - |
| Series | SHD |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Product Status | Active |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.039" (1.00mm) |
| Number of Positions | 40 |
| Number of Rows | 2 |
| Row Spacing - Mating | - |
| Number of Positions Loaded | All |
| Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall |
| Mounting Type | Surface Mount |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Length - Mating | - |
| Contact Length - Post | - |
| Overall Contact Length | - |
| Insulation Height | 0.167" (4.25mm) |
| Contact Shape | Square |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | - |
| Contact Finish - Post | - |
| Contact Material | Phosphor Bronze |
| Insulation Material | Polyamide (PA), Nylon, Glass Filled |
| Features | Pick and Place, Solder Retention |
| Operating Temperature | -25°C ~ 85°C |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Natural |
| Current Rating (Amps) | 1A |
| Voltage Rating | 50V |
| Mated Stacking Heights | 6.3mm |
| Contact Finish Thickness - Post | - |
| Applications | - |
| Base Product Number | BM40B-SR |
