Original Axial flow fan FFB1224EHE-R00 24V 24W 120X120X38mm 1.5A 4000RPM Industrial DC cooling fan
Manufacturer
Manufacturer Product Number
FFB1224EHE-R00
Description
FFB1224EHE-R00 FAN AXIAL 120X38MM 24VDC WIRE
Package Condition
Bulk
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Description
|
Type |
Description |
|---|---|
| PART# | FFB1224EHE-R00 |
|
Category |
Fans, Blowers, Thermal Management Fans DC Brushless Fans (BLDC) |
|
Mfr |
/ |
|
Series |
FFB |
|
Packaging |
Box |
|
Part Status |
Active |
|
Voltage - Rated |
24VDC |
|
Size / Dimension |
Square - 120mm L x 120mm H |
|
Width |
38.00mm |
|
Air Flow |
190.0 CFM (5.32m³/min) |
|
Static Pressure |
0.700 in H2O (174.4 Pa) |
|
Bearing Type |
Ball |
|
Fan Type |
Tubeaxial |
|
Features |
Locked Rotor Sensor |
|
Noise |
59.0dB(A) |
|
Power (Watts) |
24 W |
|
RPM |
4000 RPM |
|
Termination |
3 Wire Leads |
|
Ingress Protection |
- |
|
Operating Temperature |
14 ~ 122°F (-10 ~ 50°C) |
|
Approval Agency |
CE, CSA, UL, VDE |
|
Weight |
0.816 lb (370.13 g) |
|
Current Rating (Amps) |
1.00A |
|
Voltage Range |
14 ~ 26.4VDC |
|
Material - Frame |
Plastic |
|
Material - Blade |
Plastic |
|
Lifetime @ Temp. |
70000 Hrs @ 40°C |
|
Base Product Number |
FFB1224 |

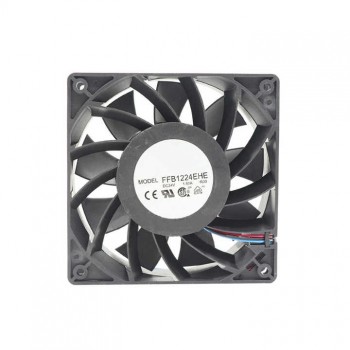

Actual image of the product
