Original Axial flow fan W2E200-HK38-01 80W 200mm Diameter 2800rpm Axial flow fan for cabinet
Manufacturer
Manufacturer Product Number
W2E200-HK38-01
Description
W2E200-HK38-01 FAN AXIAL 225X80MM BALL 230VAC
Package Condition
Original
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Description
|
Type |
Description |
|---|---|
|
PART# |
W2E200-HK38-01 |
|
Category |
Fans, Blowers, Thermal Management Fans AC Fans |
|
Manufacturer |
/ |
|
Series |
W2E200 |
|
Packaging |
Box |
|
Part Status |
Active |
|
Voltage - Rated |
230VAC |
|
Size / Dimension |
Square - 225mm L x 225mm H |
|
Width |
80.00mm |
|
Air Flow |
606.0 CFM (16.97m³/min) |
|
Static Pressure |
0.381 in H2O (95.0 Pa) |
|
Bearing Type |
Ball |
|
Fan Type |
Tubeaxial |
|
Features |
- |
|
Noise |
61.0dB(A) |
|
Power (Watts) |
80.0W |
|
RPM |
2800 RPM |
|
Termination |
Terminal Block |
|
Ingress Protection |
- |
|
Operating Temperature |
-40 ~ 176°F (-40 ~ 80°C) |
|
Approval Agency |
CCC, CE, CSA, GOST, UL, VDE |
|
Weight |
4.7 lbs (2.1 kg) |
|
Current Rating (Amps) |
0.350A |
|
Voltage Range |
- |
|
Material - Frame |
Aluminum |
|
Material - Blade |
Steel |
|
Lifetime @ Temp. |
- |
|
Base Product Number |
W2E200 |

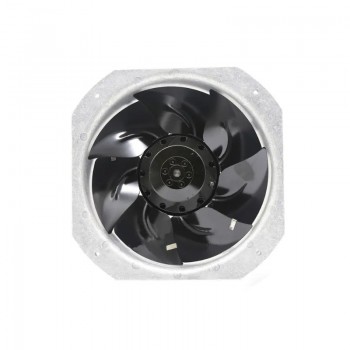

Actual image of the product
