Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
Original Axial fan 5114N 24V 9.5W 135*135*38MM High temperature fan
Manufacturer
Manufacturer Product Number
5114N
Description
5114N FAN AXIAL 135X38MM 24VDC WIRE
Package Condition
Original
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Description
|
Type |
Description |
|---|---|
|
PART# |
5114N |
|
Category |
Fans, Blowers, Thermal Management Fans DC Brushless Fans (BLDC) |
|
Mfr |
/ |
|
Series |
5100N |
|
Packaging |
Box |
|
Part Status |
Active |
|
Voltage - Rated |
24VDC |
|
Size / Dimension |
Square - 135mm L x 135mm H |
|
Width |
38.00mm |
|
Air Flow |
147.0 CFM (4.12m³/min) |
|
Static Pressure |
- |
|
Bearing Type |
Ball |
|
Fan Type |
Tubeaxial |
|
Features |
- |
|
Noise |
48.0dB(A) |
|
Power (Watts) |
9 W |
|
RPM |
2900 RPM |
|
Termination |
2 Wire Leads |
|
Ingress Protection |
IP20 |
|
Operating Temperature |
-13 ~ 162°F (-25 ~ 72°C) |
|
Approval Agency |
CE |
|
Weight |
1.4 lbs (635.0 g) |
|
Current Rating (Amps) |
0.460A |
|
Voltage Range |
12 ~ 32VDC |
|
Material - Frame |
Aluminum |
|
Material - Blade |
Aluminum |
|
Lifetime @ Temp. |
80000 Hrs @ 40°C |

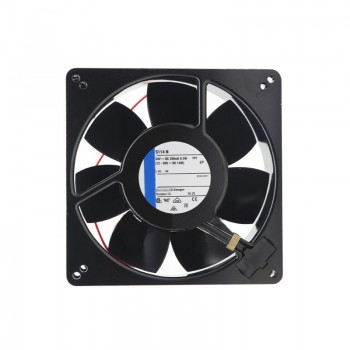

Actual image of the product
