Original Axial fan 4414/12M 12038 DC24V 4.1W
Manufacturer
Manufacturer Product Number
4414/12M
Description
Fan Tubeaxial 24VDC Square - 119mm L x 119mm H Ball 108.4 CFM (3.03m³/min) 3 Wire Leads
Package Condition
Original
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Description
|
Type |
Description |
|---|---|
| PART# | 4414/12M |
|
Category |
Fans, Blowers, Thermal Management Fans DC Brushless Fans (BLDC) |
|
Mfr |
/ |
|
Series |
4400 |
|
Packaging |
Bulk |
|
Part Status |
Active |
|
Voltage - Rated |
24VDC |
|
Size / Dimension |
Square - 119mm L x 119mm H |
|
Width |
38.00mm |
|
Air Flow |
108.4 CFM (3.03m³/min) |
|
Static Pressure |
0.414 in H2O (103.0 Pa) |
|
Bearing Type |
Ball |
|
Fan Type |
Tubeaxial |
|
Features |
Auto Restart, Locked Rotor Protection, Speed Sensor (Tach) |
|
Noise |
46.0dB(A) |
|
Power (Watts) |
4.1 W |
|
RPM |
3300 RPM |
|
Termination |
3 Wire Leads |
|
Ingress Protection |
- |
|
Operating Temperature |
-4 ~ 176°F (-20 ~ 80°C) |
|
Approval Agency |
CE, CSA, UL, VDE |
|
Weight |
0.609 lb (276.24 g) |
|
Current Rating (Amps) |
- |
|
Voltage Range |
18 ~ 28VDC |
|
Material - Frame |
Polybutylene Terephthalate (PBT), Fiberglass Reinforced |
|
Material - Blade |
Polyamide (PA), Nylon, Fiberglass Reinforced |
|
Lifetime @ Temp. |
65000 Hrs @ 40°C |
|
Base Product Number |
4414 |

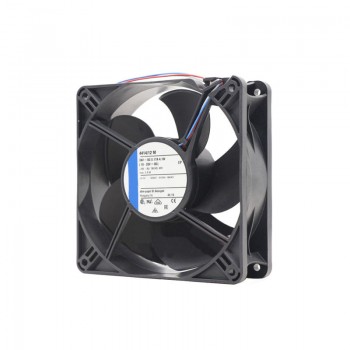

Actual image of the product
