Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
Original AFB1248VHE 48V 0.27A 12CM 12038 inverter cooling fan
Manufacturer
Manufacturer Product Number
AFB1248VHE
Description
AFB1248VHE FAN AXIAL 120X38MM 48VDC WIRE
Package Condition
Original
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Description
|
Type |
Description |
|---|---|
|
PART# |
AFB1248VHE |
|
Category |
Fans, Blowers, Thermal Management Fans DC Brushless Fans (BLDC) |
|
Mfr |
/ |
|
Series |
AFB |
|
Packaging |
Box |
|
Part Status |
Active |
|
Voltage - Rated |
48VDC |
|
Size / Dimension |
Square - 120mm L x 120mm H |
|
Width |
38.00mm |
|
Air Flow |
130.0 CFM (3.64m³/min) |
|
Static Pressure |
0.420 in H2O (104.6 Pa) |
|
Bearing Type |
Ball |
|
Fan Type |
Tubeaxial |
|
Features |
Locked Rotor Protection |
|
Noise |
48.0dB(A) |
|
Power (Watts) |
8.64 W |
|
RPM |
3200 RPM |
|
Termination |
2 Wire Leads |
|
Ingress Protection |
- |
|
Operating Temperature |
14 ~ 140°F (-10 ~ 60°C) |
|
Approval Agency |
CE, CSA, UL, VDE |
|
Weight |
0.565 lb (256.28 g) |
|
Current Rating (Amps) |
0.180A |
|
Voltage Range |
28 ~ 56VDC |
|
Material - Frame |
Plastic |
|
Material - Blade |
Plastic |
|
Lifetime @ Temp. |
70000 Hrs @ 40°C |
|
Base Product Number |
AFB1248 |

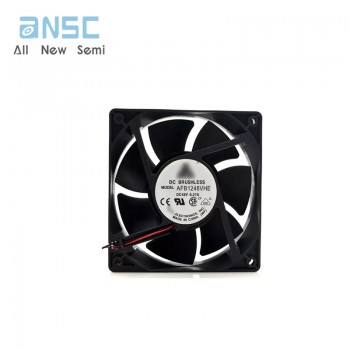

Actual image of the product
