Hot sale Original 1N4007 DIODE 1 A 1000V SILICON SIGNAL DIODE DO-41 GLASS PACKAGE-2 Signal Diode
Manufacturer Product Number
1N4007
Description
Original 1N4007 DIODE 1 A 1000V SILICON SIGNAL DIODE DO-41 GLASS PACKAGE-2 Signal Diode
Package Condition
Original
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details
| Brief Description: The 1N4007 is a standard rectifier diode. It is a non-RoHS compliant, obsolete product with a DO-41 package and a cut tape packaging option. Features: Voltage - Forward (Vf) (Max): 1.1V @ 1A Voltage - DC Reverse (Vr) (Max): 1000V Reverse Recovery Time: 2μs Current - Average Rectified (Io): 1A Current - Reverse Leakage @ Vr: 5μA @ 1000V Operating Temperature - Junction: -55°C ~ 150°C Speed: Standard Recovery >500ns, > 200mA (Io) Diode Type: Standard Application Grade: The 1N4007 is a general-purpose rectifier diode suitable for a wide range of applications. Applications: Power supplies Switching power supplies DC-DC converters Inverters Battery chargers Automotive electronics Industrial control systems Medical equipment This diode is suitable for applications where high voltage and high current rectification is required, such as in power supplies, switching power supplies, and DC-DC converters. Its standard recovery speed and high reverse voltage make it a good choice for applications where high voltage and high current rectification is required. |
Product Description
| Type# | Description |
| ANSC PART# | ANSC - 1N4007 |
| Ihs Manufacturer | / |
| Part Package Code | DO-41 |
| Package Description | GLASS PACKAGE-2 |
| Pin Count | 2 |
| Reach Compliance Code | Unknown |
| ECCN Code | EAR99 |
| HTS Code | 8541.10.00.80 |
| Samacsys Manufacturer | Toshiba |
| Case Connection | ISOLATED |
| Configuration | SINGLE |
| Diode Element Material | SILICON |
| Diode Type | RECTIFIER DIODE |
| Forward Voltage-Max (VF) | 1.1 V |
| JEDEC-95 Code | DO-41 |
| JESD-30 Code | O-LALF-W2 |
| Non-rep Pk Forward Current-Max | 30 A |
| Number of Elements | 1 |
| Number of Phases | 1 |
| Number of Terminals | 2 |
| Operating Temperature-Max | 175 °C |
| Output Current-Max | 1 A |
| Package Body Material | GLASS |
| Package Shape | ROUND |
| Package Style | LONG FORM |
| Qualification Status | Not Qualified |
| Rep Pk Reverse Voltage-Max | 1000 V |
| Surface Mount | NO |
| Terminal Form | WIRE |
| Terminal Position | AXIAL |

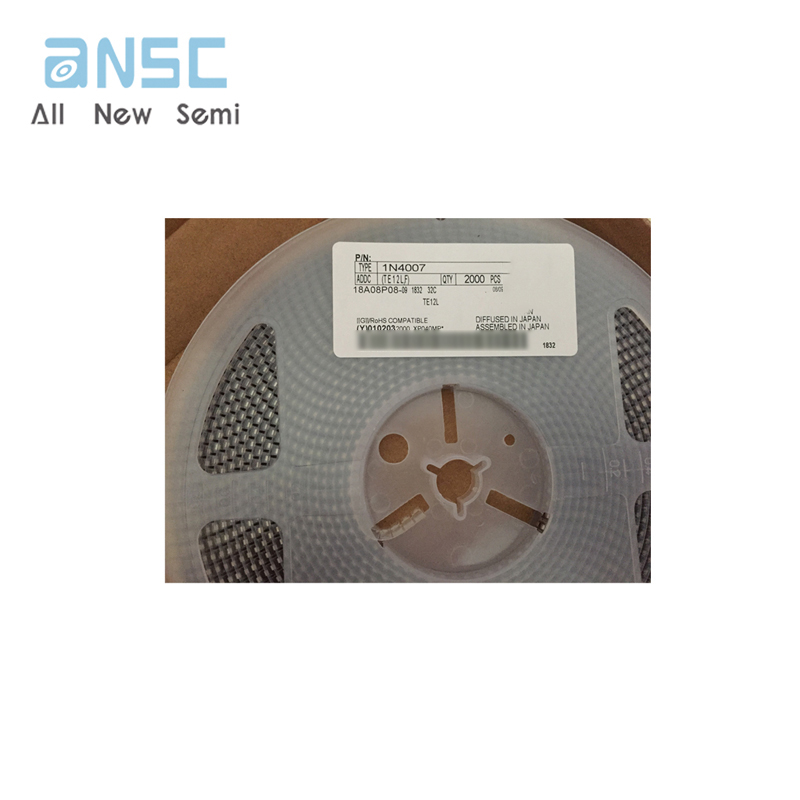

Actual image of the product

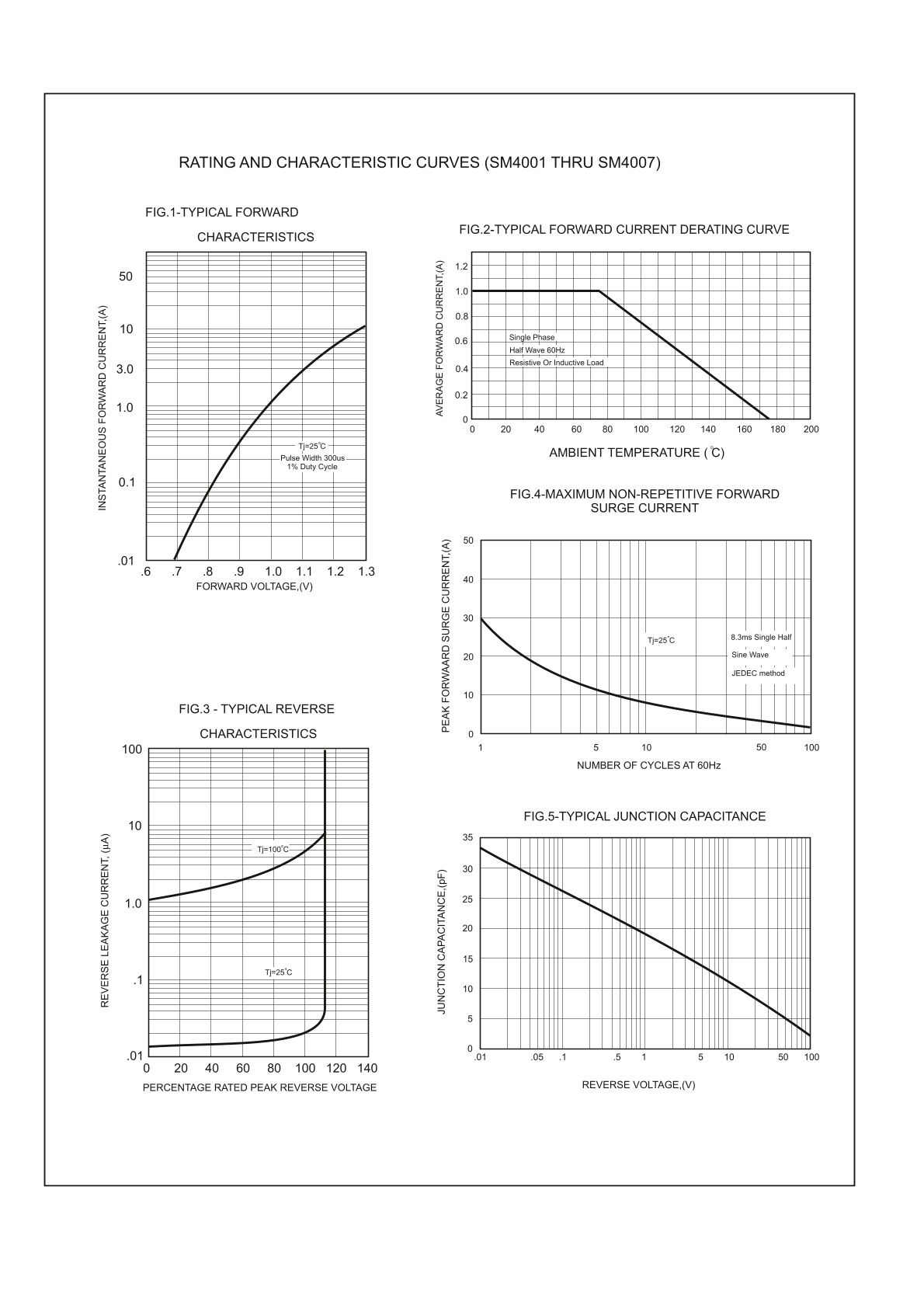

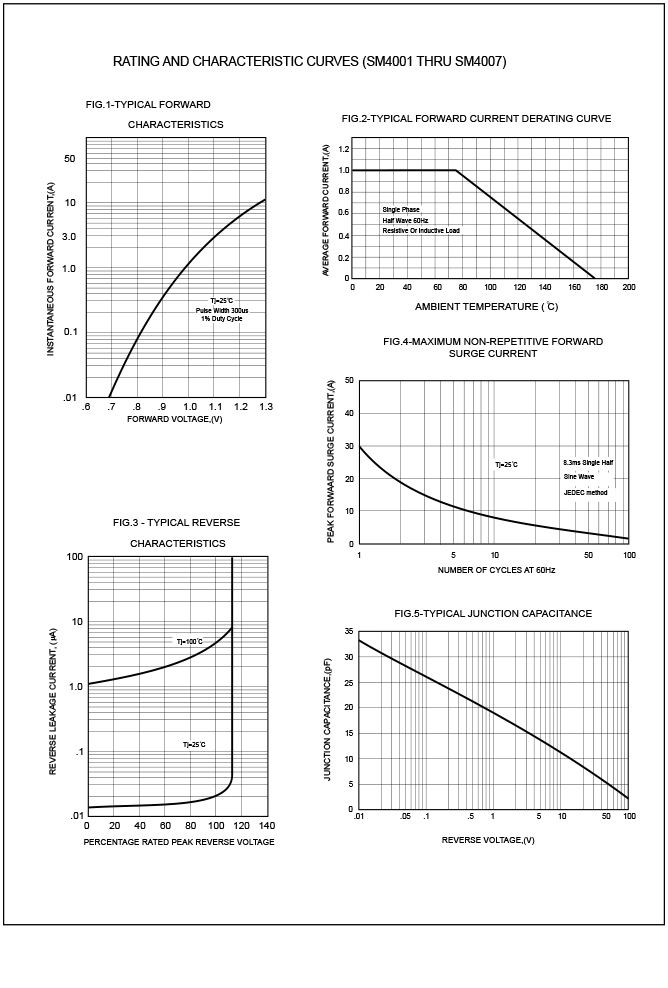

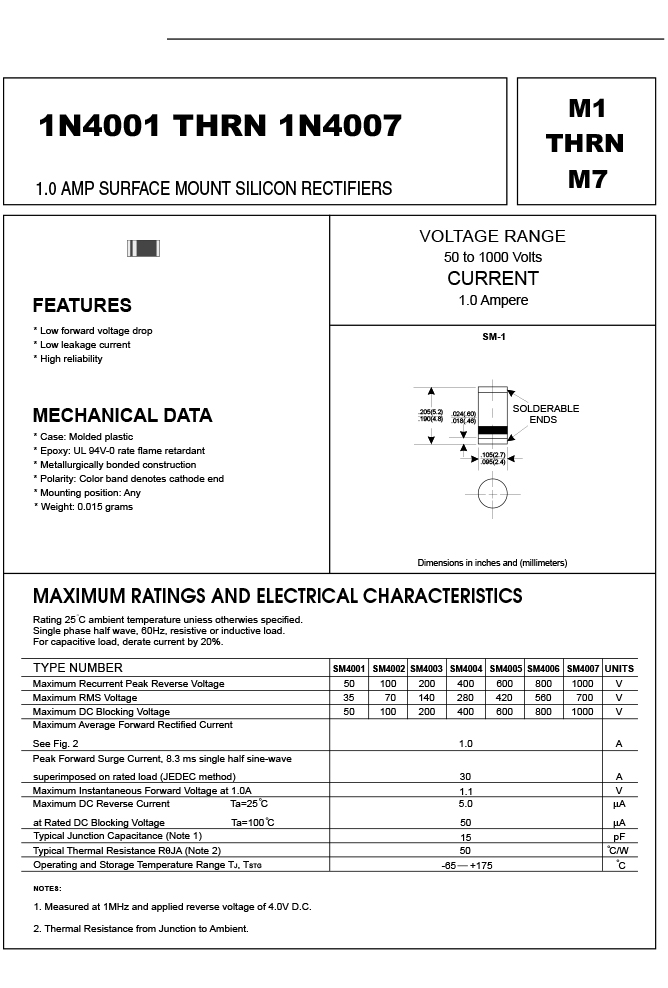

Product datasheet
For more information, please download
