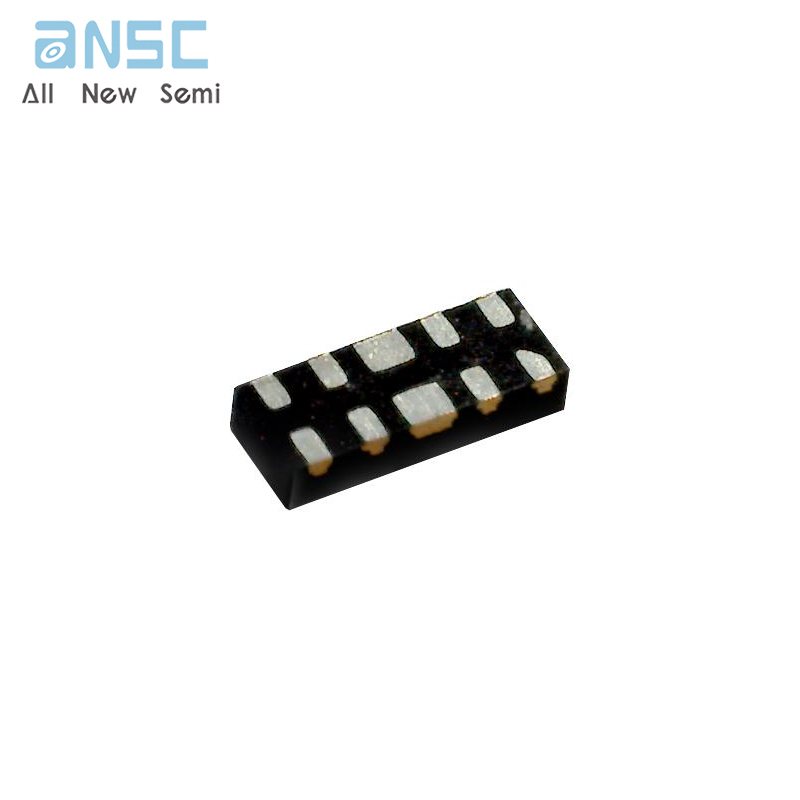

Hot-selling and scarce ESD8104MUTAG ESD Protection Diode UQFN10 spot stock
Manufacturer Product Number
ESD8104MUTAG
Description
ESD8104MUTAG ESD Protection Diode UQFN10 spot stock
Package Condition
Tape & Reel (TR)
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
The ESD8104 is designed to protect high speed data lines from ESD.Ultra−low capacitance and low ESD clamping voltage make this device an ideal solution for protecting voltage sensitive high speed data lines.The flow−through style package allows for easy PCB layout and matched trace lengths necessary to maintain consistent impedance between high speed differential lines such as USB 3.0/3.1 and HDMI2.0.
Product Features
Low Capacitance (0.37 pF Max,I/O to GND)
Protection for the Following IEC Standards: IEC 61000−4−2 (Level 4)
Low ESD Clamping Voltage
SZ Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements;AEC−Q101 Qualified and PPAP Capable
These Devices are Pb−Free,Halogen Free/BFR Free and are RoHS Compliant
Product Applications
USB 3.0/3 .1
eSATA
HDMI 1.3/1 .4/2 .0
DisplayPort
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-ESD8104MUTAG |
| Category | Circuit Protection |
| Transient Voltage Suppressors (TVS) | |
| TVS Diodes | |
| Mfr | - |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Part Status | Active |
| Type | Zener |
| Unidirectional Channels | 4 |
| Voltage - Reverse Standoff (Typ) | 3.3V (Max) |
| Voltage - Breakdown (Min) | 4V |
| Voltage - Clamping (Max) @ Ipp | 11.4V (Typ) |
| Current - Peak Pulse (10/1000us) | 16A (100ns) |
| Power Line Protection | No |
| Applications | HDMI, USB |
| Capacitance @ Frequency | 0.3pF @ 1MHz |
| Operating Temperature | -55°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 10-UFDFN |
| Supplier Device Package | 10-UDFN (2.5x1) |
| Base Product Number | ESD8104 |
Product Photos
For more product information, please download the PDF
Other Products In The same category:
ESD8104MUTAG ESD Protection Diode UQFN10 spot stock
4In stock:
Can ship immediately
