Hot sale original MAX3490ESA IC TRANSCEIVER FULL 1/1 8SOIC 1/1 Transceiver Full RS422, RS485 8-SOIC
Manufacturer Product Number
MAX3490ESA
Description
MAX3490ESA IC TRANSCEIVER FULL 1/1 8SOIC 1/1 Transceiver Full RS422, RS485 8-SOIC
Package Condition
Bulk
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details
| Product Description The MAX3490ESA+ is a high-performance, surface-mount, 8-pin, 3.3V, RS422/RS485 transceiver . This transceiver is designed to operate at data rates of up to 10Mbps and features a differential output, making it suitable for various industrial and commercial applications. Features Differential Output: The MAX3490ESA+ has a differential output, which provides improved noise immunity and increased signal-to-noise ratio. Full Duplex Operation: The transceiver supports full duplex operation, allowing data to be transmitted and received simultaneously. Schmitt Trigger Input: The input characteristics are based on differential Schmitt trigger logic, which provides improved noise immunity and faster switching times. Totem-Pole Output: The output characteristics are based on totem-pole logic, which provides a high output current and improved noise immunity. Applications Primary Applications: The MAX3490ESA+ is suitable for use in industrial control systems, medical devices, and other applications where high-speed, noise-immune data transmission is required. Secondary Applications: The transceiver can also be used in other applications such as data acquisition systems, industrial automation, and telecommunications equipment. |
Product Description
|
Type |
Description |
|---|---|
| ANSC PART# | ANSC - MAX3490ESA |
|
Category |
Integrated Circuits (ICs) Interface Drivers, Receivers, Transceivers |
|
Manufacturer |
/ |
|
Series |
- |
|
Packaging |
Bulk |
|
Part Status |
Active |
|
Type |
Transceiver |
|
Protocol |
RS422, RS485 |
|
Number of Drivers/Receivers |
1/1 |
|
Duplex |
Full |
|
Receiver Hysteresis |
50 mV |
|
Data Rate |
12Mbps |
|
Voltage - Supply |
3V ~ 3.6V |
|
Operating Temperature |
-40°C ~ 85°C (TA) |
|
Mounting Type |
Surface Mount |
|
Package / Case |
8-SOIC (0.154", 3.90mm Width) |
|
Supplier Device Package |
8-SOIC |

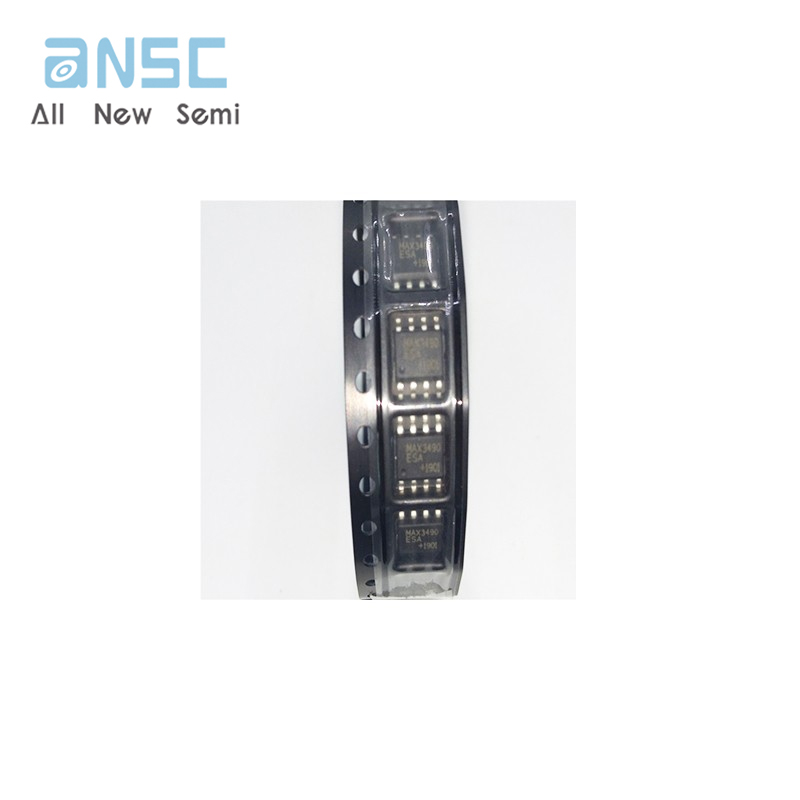

Actual image of the product

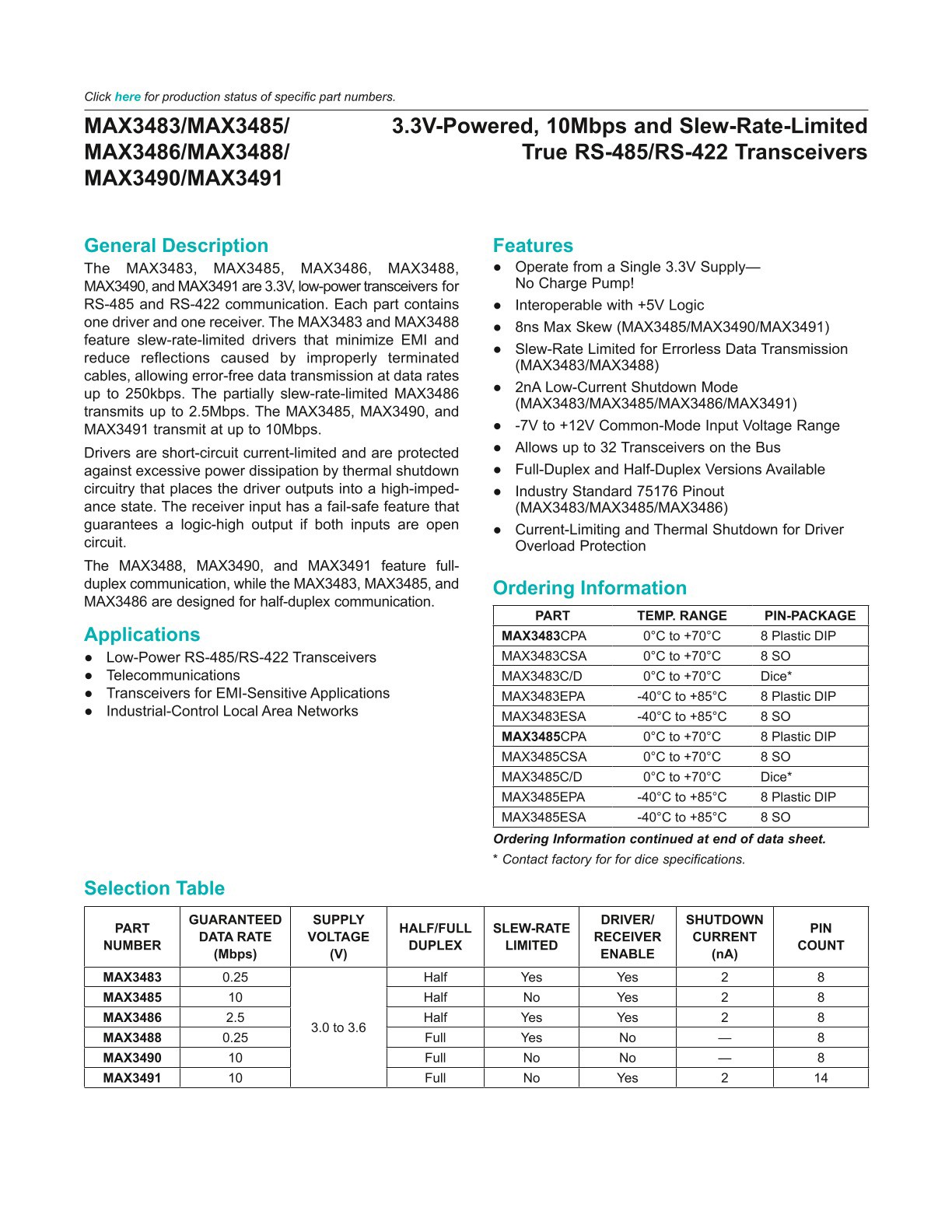

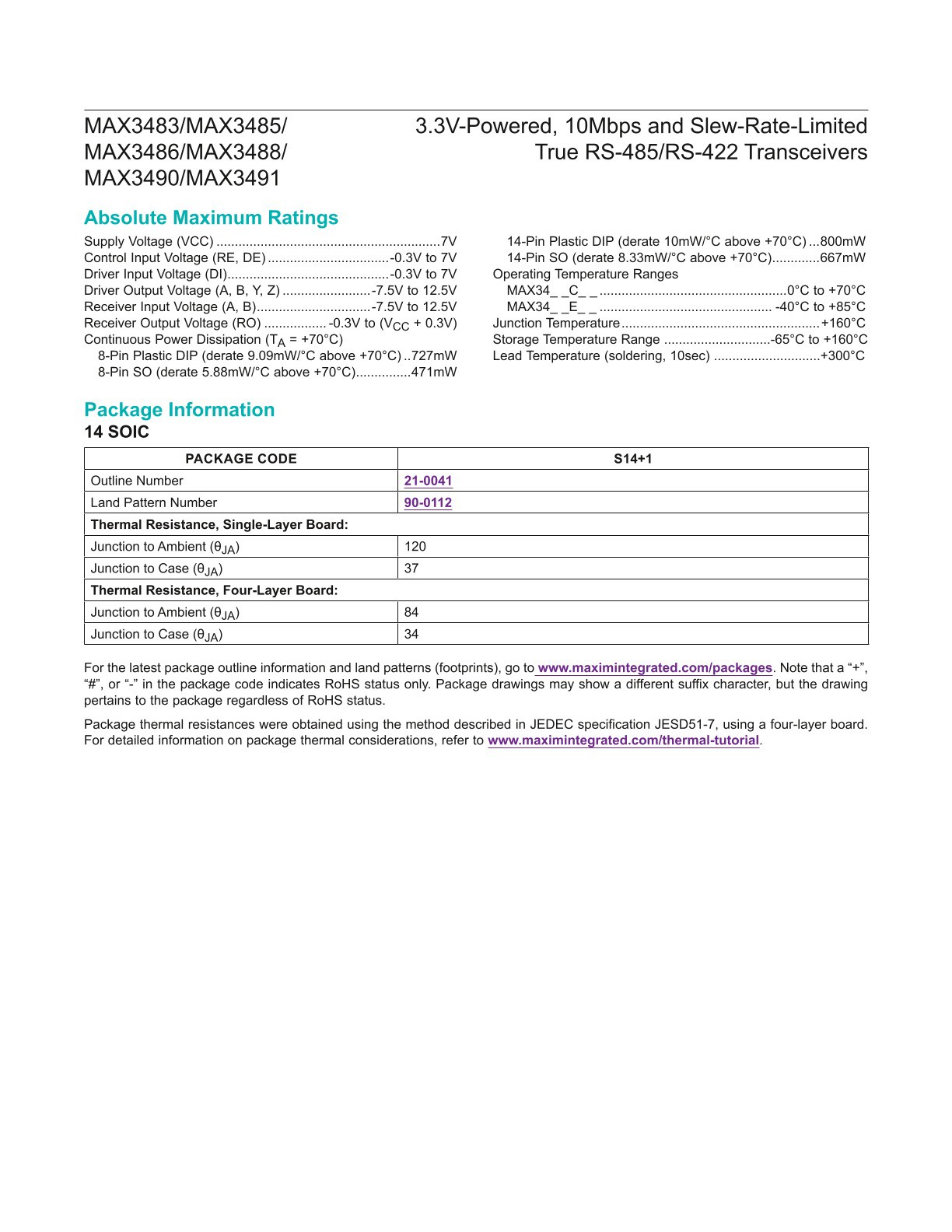

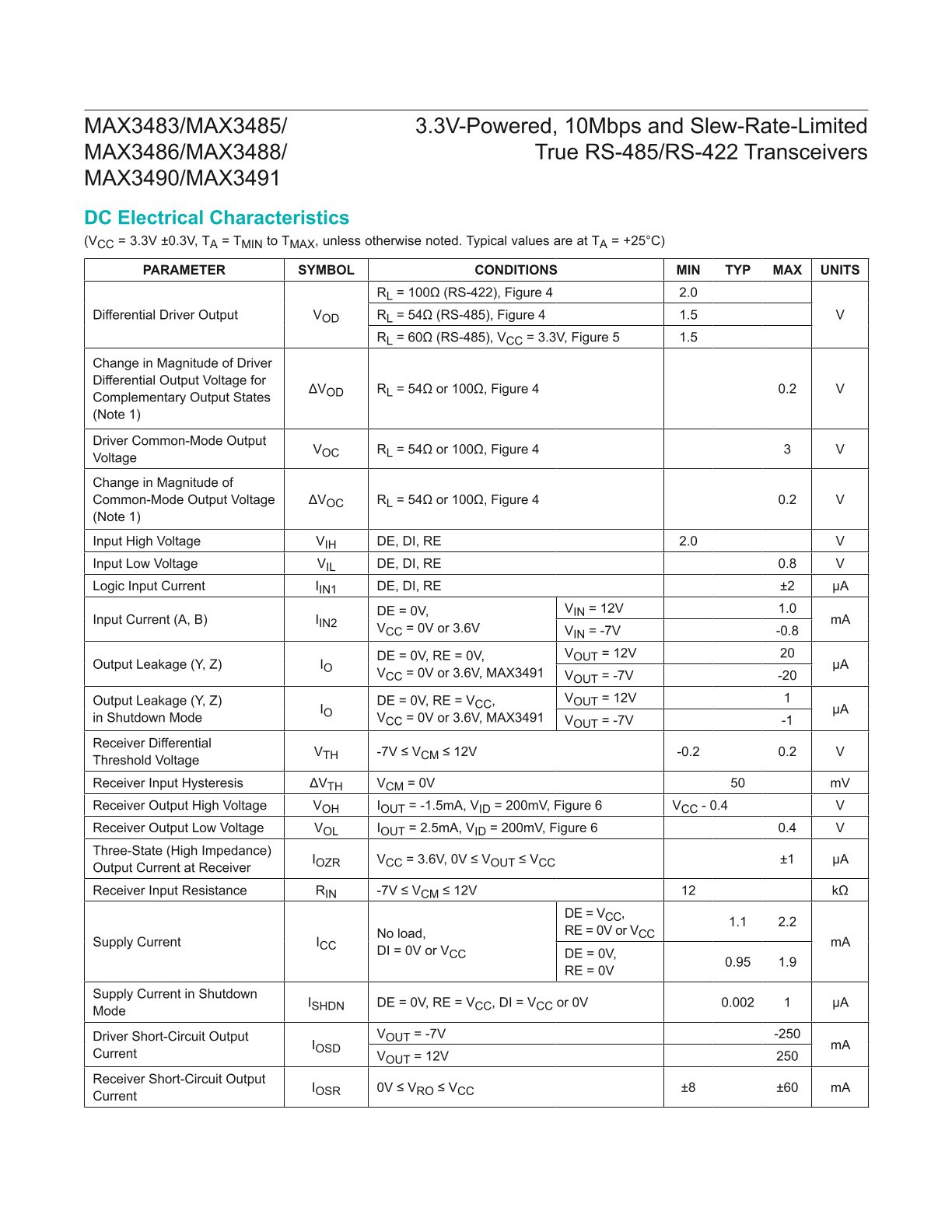

Product datasheet
For more information, please download
