Hot sale Original TCLT1000 Optoisolators 5KV TRANSISTOR 4-SOP Optoisolator Transistor Output 5000Vrms 1 Channel 4-SOP
Manufacturer Product Number
TCLT1000
Description
Original TCLT1000 Optoisolators 5KV TRANSISTOR 4-SOP Optoisolator Transistor Output 5000Vrms 1 Channel 4-SOP
Package Condition
Tape & Reel (TR) Cut Tape (CT)
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details

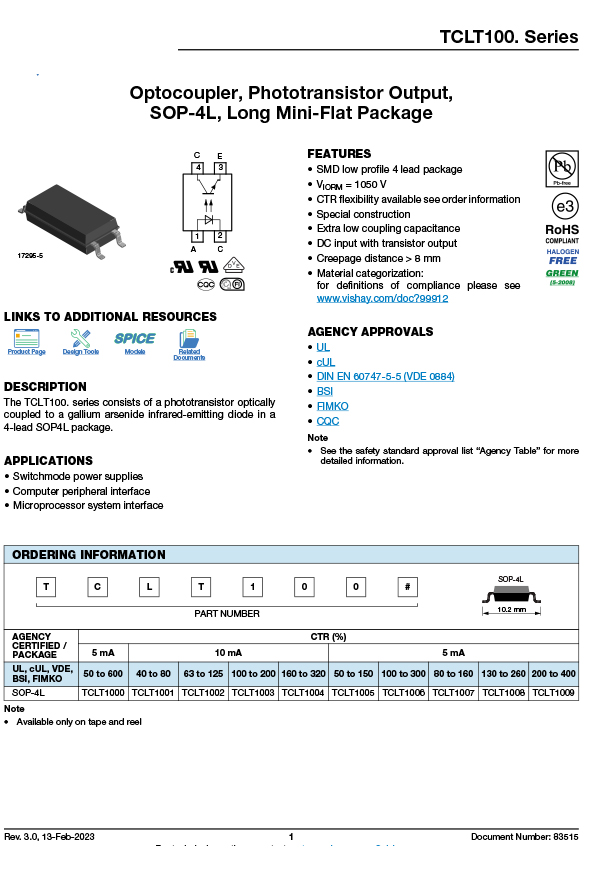

| DESCRIPTION The TCLT10.. series consists of a phototransistor optically coupled to a gallium arsenide infrared-emitting diode in a 4 lead SOP4L package. The elements are mounted on one leadframe providing a fixed distance between input and output for highest safety requirements. FEATURES • SMD low profile 4 lead package • VIORM = 1050 V • CTR flexibility available see order information • Special construction • Extra low coupling capacitance • DC input with transistor output • Creepage distance > 8 mm • Lead (Pb)-free component • Component in accordance to RoHS 2002/95/EC and WEEE 2002/96/EC APPLICATIONS • Switchmode power supplies • Computer peripheral interface • Microprocessor system interface |
Product Description
| Type# | Description |
| ANSC PART# | ANSC -TCLT1000 |
| Category | Isolators |
| Optocouplers, Optoisolators | |
| Transistor, Photovoltaic Output Optoisolators | |
| Manufacturer | / |
| Series | - |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| / | |
| Part Status | Active |
| Number of Channels | 1 |
| Voltage - Isolation | 5000Vrms |
| Current Transfer Ratio (Min) | 50% @ 5mA |
| Current Transfer Ratio (Max) | 600% @ 5mA |
| Turn On / Turn Off Time (Typ) | 6µs, 5µs |
| Rise / Fall Time (Typ) | 3µs, 4.7µs |
| Input Type | DC |
| Output Type | Transistor |
| Voltage - Output (Max) | 70V |
| Current - Output / Channel | 50mA |
| Voltage - Forward (Vf) (Typ) | 1.25V |
| Current - DC Forward (If) (Max) | 60 mA |
| Vce Saturation (Max) | 300mV |
| Operating Temperature | -55°C ~ 100°C |
| Mounting Type | Surface Mount |
| Package / Case | 4-SMD, Gull Wing |
| Supplier Device Package | 4-SOP |
| Base Product Number | TCLT1000 |

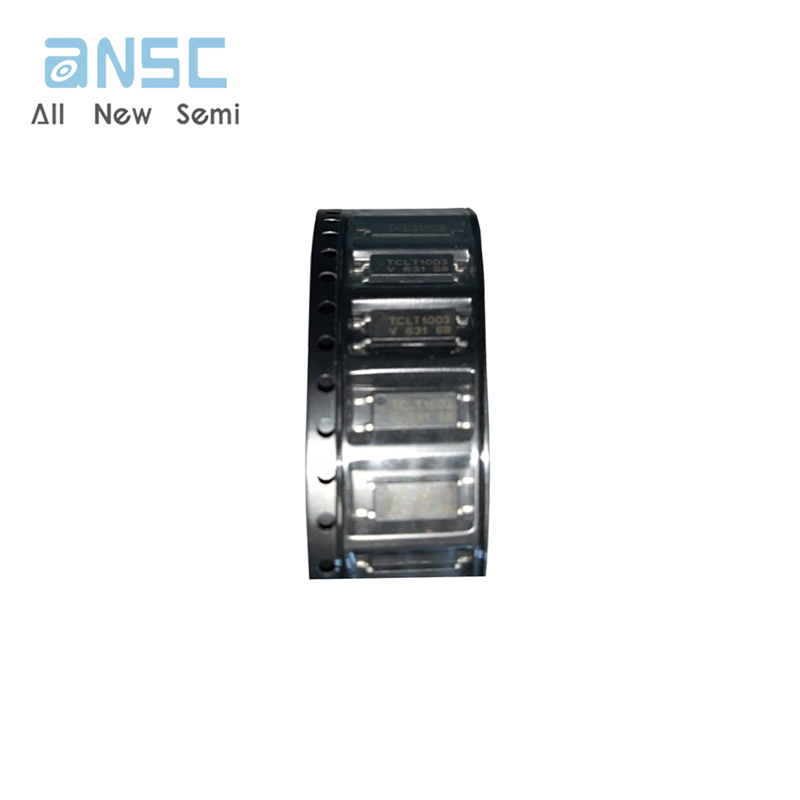

Product Photos

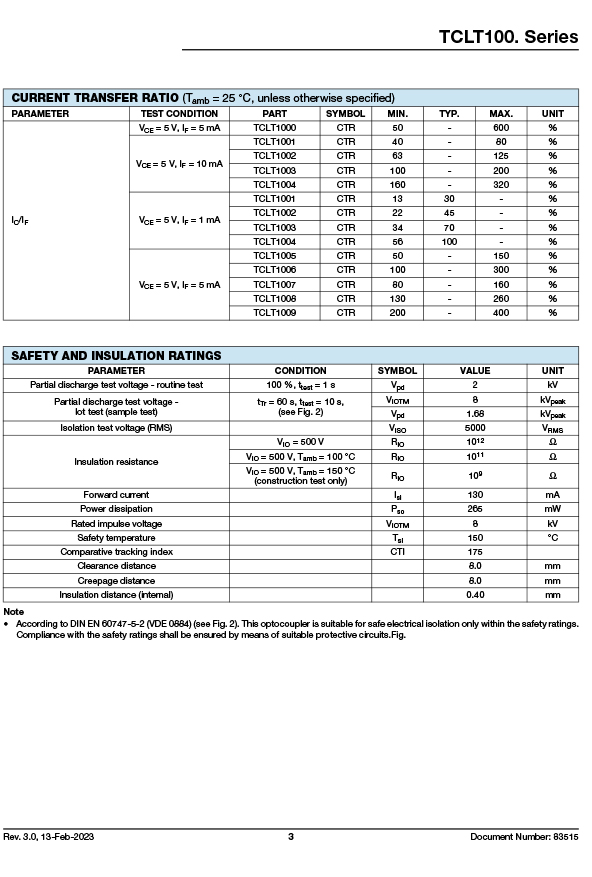

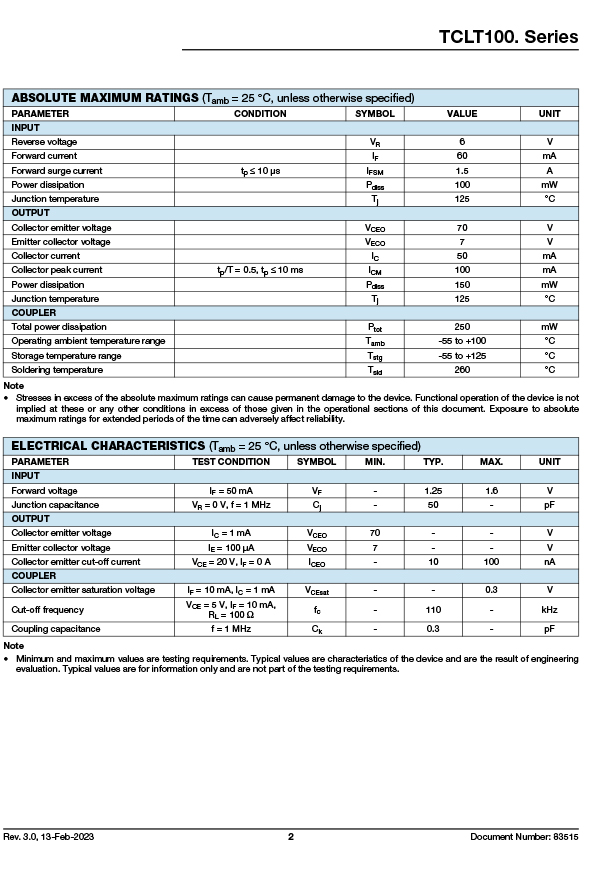

Product datasheet
For more information, please download
