Hot sale Original ADG467BRSZ TVS DEVICE MIXED 40V 20SSOP ±40V Mixed Technology 8 Circuits General Purpose 20-SSOP

Product Description

Product Description: ADG467BRSZ TVS Diode

Description

The ADG467BRSZ is a mixed technology TVS (Transient Voltage Suppressor) diode designed by Analog Devices Inc. It is part of the ADG467 series, which offers robust protection against voltage spikes and transient surges in electronic circuits. This device is specifically engineered for surface mount applications, providing reliable and efficient protection in a variety of electronic systems.

Product Features

· Mixed Technology: Combines different protection technologies to offer comprehensive protection against transient voltage spikes.

· Surface Mount: Designed for easy integration into modern PCBs, ensuring minimal space usage.

· High Voltage Clamping: Capable of clamping voltages up to ±40V, making it suitable for a wide range of applications.

· Low Power Dissipation: With a power dissipation of just 15μW, this device minimizes heat generation and energy consumption.

· Enhancement Mode: Operates in enhancement mode, allowing for precise control over the flow of current.

· Lead-Free: Contains lead, which may be a concern for some users; however, it is still compliant with certain industry standards.

Product Applications

General Purpose Protection: Ideal for general-purpose applications where transient voltage protection is required.

Automotive Electronics: Suitable for automotive systems due to its high voltage clamping capability and robust construction.

Industrial Control Systems: Used in industrial control systems to protect against electrical surges and spikes.

Consumer Electronics: Protects consumer electronics from power line transients and other electrical disturbances.

Embedded Modules

The ADG467BRSZ is commonly used in various embedded modules designed

for transient voltage protection:

- Power Supply Modules: Often integrated into power supply modules to protect against voltage spikes during power-up or power-down cycles.

- Communication Modules: Used in communication modules like Ethernet switches and routers to safeguard against electrical surges.

- Industrial Automation Systems: Embedded in industrial automation systems like PLCs (Programmable Logic Controllers) and HMIs (Human Machine Interfaces).

By choosing the ADG467BRSZ from Analog Devices Inc., you can ensure reliable transient voltage protection in your electronic designs while leveraging its compact surface mount package and high-performance capabilities.

Product Description

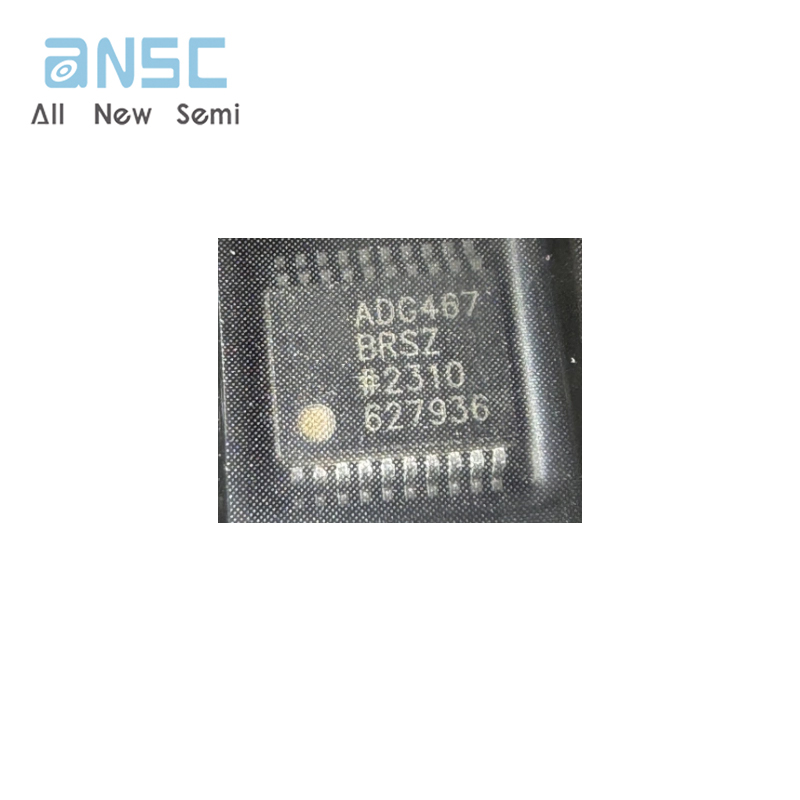

Actual image of the product

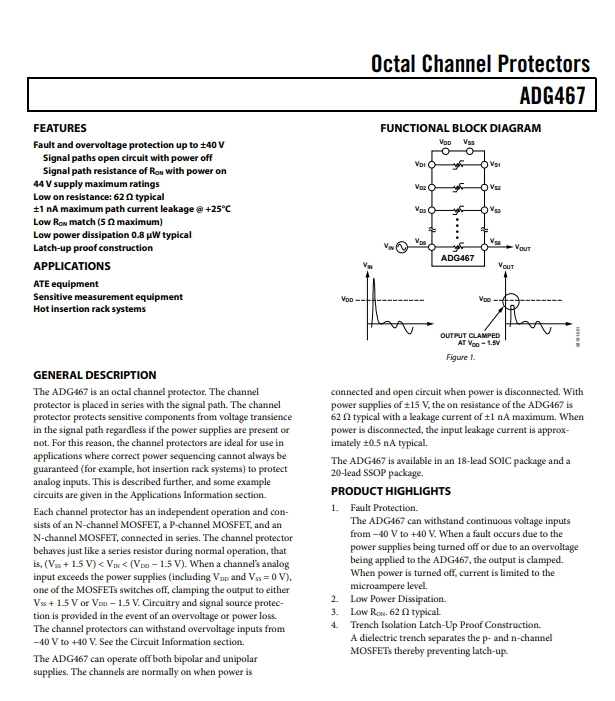

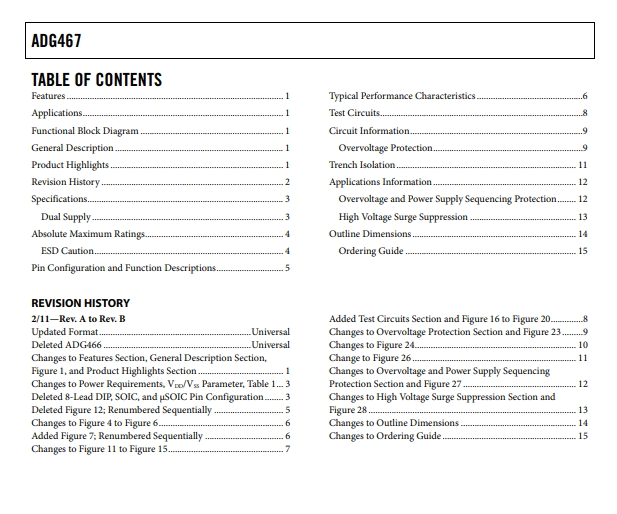

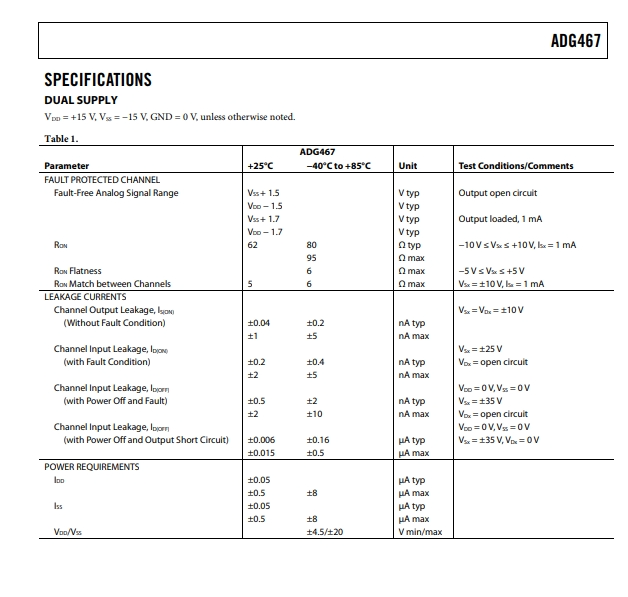

Product datasheet

For more information, please download
