Hot selling One stop supply of electronic components KFC-A06X5H is an on/off electronic tact switch SOP4
Manufacturer
Manufacturer Product Number
KFC-A06X5H
Description
Hot selling One stop supply of electronic components KFC-A06X5H is an on/off electronic tact switch SOP4
Package Condition
Original
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details
KFC-A06-H is an on/off electronic tact switch that is only on when the button is pressed or if there is a definitive change in
pressure.

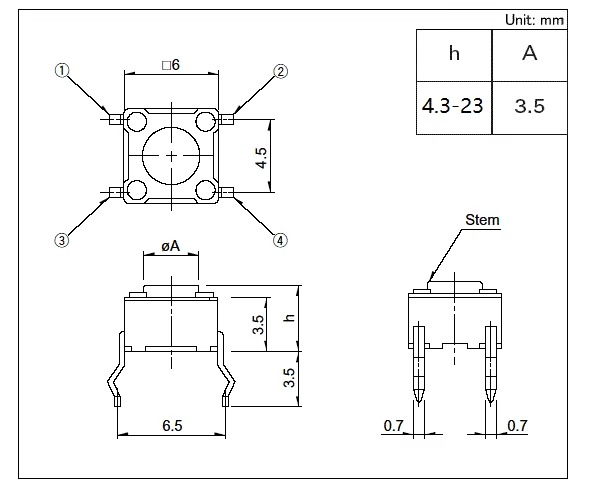

It was used for circuit board, there are many different kinds of height for the switch knob, the standard height range is 4.3mm to 23mm.
The Tactile Switch applications include: Low power, miniature devices, digital switching, anything where operator feedback is required (a switch confirmation coming from the switch being depressed) will find that the perfect choice is a Tactile switch.
Product Description
|
Attribute |
Attribute value |
|
ANSM-Part# |
ANSM-KFC-A06X5H |
|
Mfr |
CN |
|
Type: |
Snap-in |
|
Operating Direction: |
Top Push |
|
Operating Life: |
Over 100,000 cycles |
|
Stem color: |
Black |
|
Stem height: |
H=4.3-23mm |
|
Rating (max.): |
50mA 12V DC |
|
SPQ: |
1,000pcs |
|
Operating force: |
0.98N |
|
Travel: |
0.25mm |
|
Initial contact resistance: |
100mΩ max. |
|
Operating Temperature: |
-40℃~+90℃ |
|
Series type: |
Sharp feeling type |
|
Rating (min.): |
10µA 1V DC |
|
OEM or ODM: |
Available |
|
Package / Case |
SOP4 |

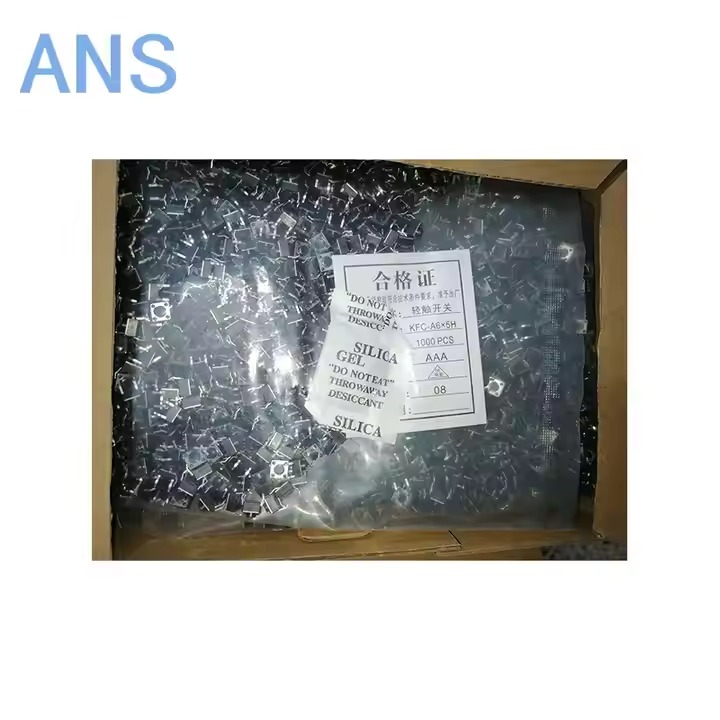

Actual image of the product
