Encoder OIH48-2500P8-L6-5V TS5214N8566 servo motor rotary encoder

Manufacturer
Original
Manufacturer Product Number
TS5214N8566
Description

Encoder OIH48-2500P8-L6-5V TS5214N8566 servo motor rotary encoder

Package Condition
Original
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser. All intellectual property rights of products on our website belong to the original factory! (In addition to ANSC's own customized products)

Product Features

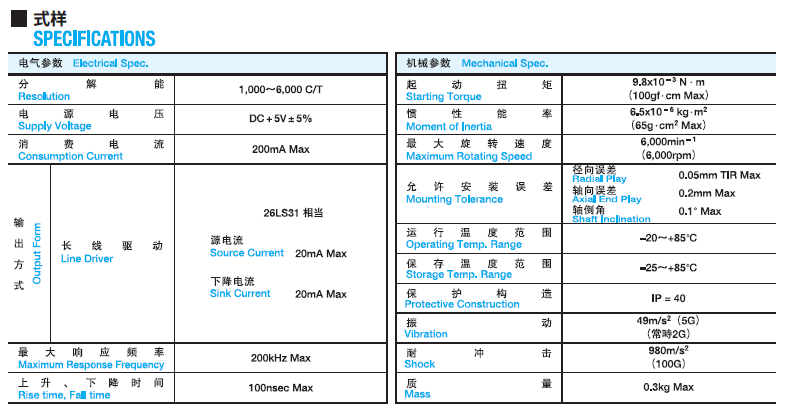

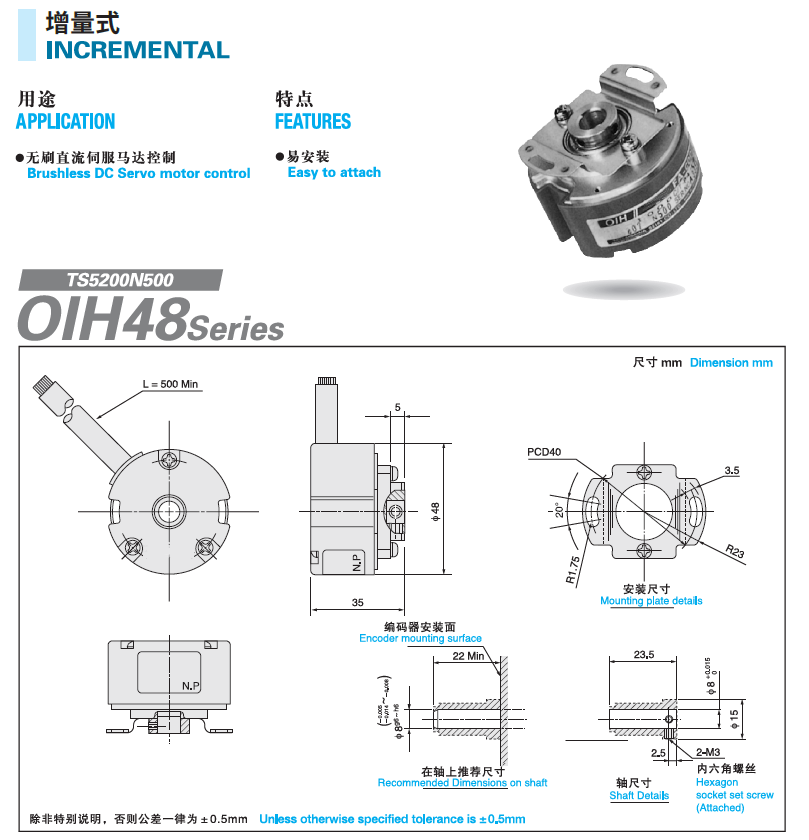

Outer diameter: 48mm

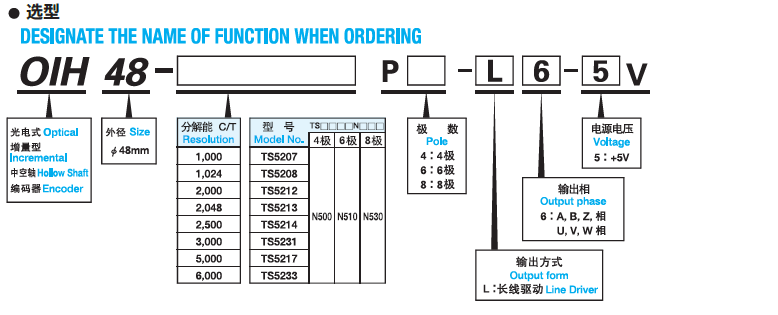

Resolution: 1000 - 6000 C/T with U, V, W commutation signals

High frequency response: 200 kHz max.-20° C to +100° C operating temperature

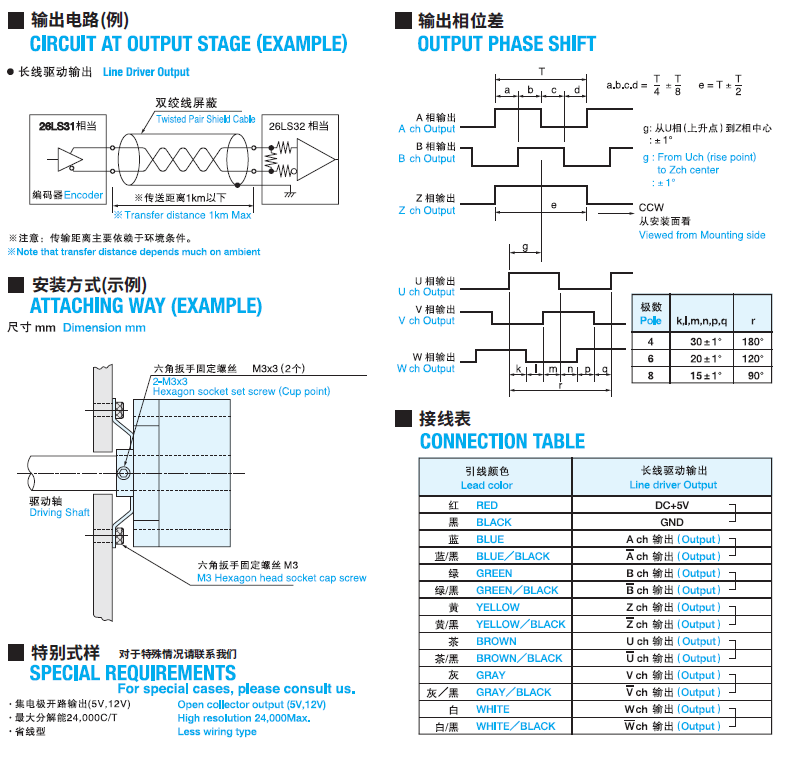

Standard line driver outputs provide increased noise immunity and longer cable capability (up to 1 km)

Typical applications: AC servo motor feedback devices

Two types available: Standard, 14 wire and Reduced wiring, 8 wire

Application

·Brushless DC servo motor control

Features

·Easy to install

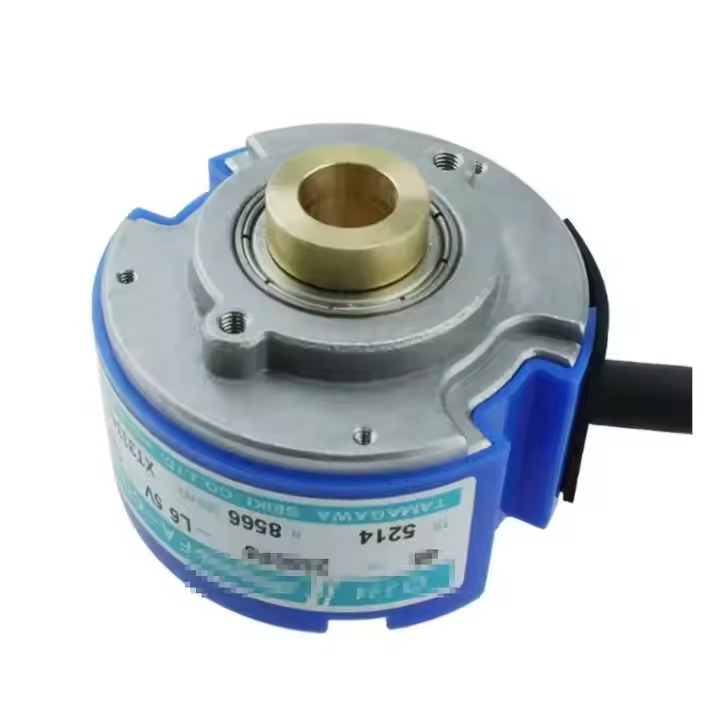

Actual image of the product






​
