SSR-100DD DC controlled DC 60A80DD25DD40DD25DD contactless relay Solid state relay
Manufacturer
Manufacturer Product Number
SSR-10DD
Description
SSR-100DD DC controlled DC 60A80DD25DD40DD25DD contactless relay Solid state relay
Package Condition
Original
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Display
|
model: |
SSR-10DA SSR-25DA SSR-40DA SSR-60DA SSR-80DA SSR-100DA |
|
|
Load current: |
10A 25A 40A 60A 80A 100A |
|
|
Control voltage: |
3-32VDC |
|
|
Load voltage range: |
24-380VAC |
|
|
Cooling conditions: |
10-25A with radiator 40-100A with radiator |
|
|
Load current: |
Resistive load 3 times Inductive load 7 times |
|
|
Switching off voltage: |
<1.5vDC |
|
|
Control current: |
<25mA |
|
|
Starting current: |
5mA |
|
|
Insulation voltage: |
>2500mA |
|
|
Weight: |
90g |
|
|
Work instructions: |
LED |
|
|
Fixing method: |
Bolt fixation |
|
model: |

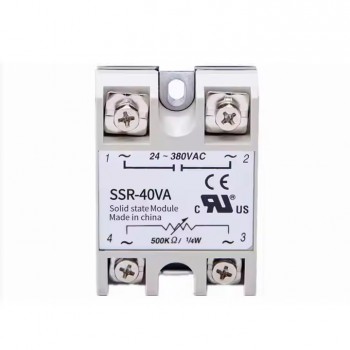

SSR-10VA SSR-25VA SSR-40VA SSR-60VA SSR-80VA SSR-100VA |
|
|
Load current: |
10A 25A 40A 60A 80A 100A |
|
|
Control voltage: |
24-380VDC |
|
|
Voltage regulation method： |
500KΩ/1 || 4W |
|
|
Cooling conditions: |
10-25A with radiator 40-100A with radiator |
|
|
Load current: |
Resistive load 3 times Inductive load 7 times |
|
|
Switching off voltage: |
≤1.5vDC |
|
|
Control current: |
<25mA |
|
|
Starting current: |
5mA |
|
|
Insulation voltage: |
≥2500mA |
|
|
Weight: |
90g |
|
|
Work instructions: |
LED |
|
|
Fixing method: |
Bolt fixation |
|
model: |
SSR-10DA-H SSR-25DA-H SSR-40DA-H SSR-60DA-H SSR-80DA-H SSR-100DA-H |
|
|
Load current: |
10A 25A 40A 60A 80A 100A |
|
|
Control voltage: |
3-32VDC |
|
|
Load voltage range: |
24-480VAC |
|
|
Cooling conditions: |
10-25A with radiator 40-100A with radiator |
|
|
Load current: |
Resistive load 3 times Inductive load 7 times |
|
|
Switching off voltage: |
≤1.5vDC |
|
|
Control current: |
<25mA |
|
|
Starting current: |
5mA |
|
|
Insulation voltage: |
≥2500mA |
|
|
Weight: |
90g |
|
|
Work instructions: |
LED |
|
|
Fixing method: |
Bolt fixation |
|
model: |
SSR-10AA SSR-25AA SSR-40AA SSR-60AA SSR-80AA SSR-100AA |
|
|
Load current: |
10A 25A 40A 60A 80A 100A |
|
|
Control voltage: |
80-250VDC |
|
|
Load voltage range: |
24-480VAC |
|
|
Cooling conditions: |
10-25A with radiator 40-100A with radiator |
|
|
Load current: |
Resistive load 3 times Inductive load 7 times |
|
|
Switching off voltage: |
≤1.5vDC |
|
|
Control current: |
<25mA |
|
|
Starting current: |
5mA |
|
|
Insulation voltage: |
≥2500mA |
|
|
Weight: |
90g |
|
|
Work instructions: |
LED |
|
|
Fixing method: |
Bolt fixation |
|
model: |
SSR-10AA-H SSR-25AA-H SSR-40AA-H SSR-60AA-H SSR-80AA-H SSR-100AA-H |
|
|
Load current: |
10A 25A 40A 60A 80A 100A |
|
|
Control voltage: |
80-250VDC |
|
|
Load voltage range: |
24-480VAC |
|
|
Cooling conditions: |
10-25A with radiator 40-100A with radiator |
|
|
Load current: |
Resistive load 3 times Inductive load 7 times |
|
|
Switching off voltage: |
≤1.5vDC |
|
|
Control current: |
<25mA |
|
|
Starting current: |
5mA |
|
|
Insulation voltage: |
≥2500mA |
|
|
Weight: |
90g |
|
|
Work instructions: |
LED |
|
|
Fixing method: |
Bolt fixation |
|
model: |
SSR-10DD SSR-25DD SSR-40DD SSR-60DD SSR-80DD SSR-100DD |
|
|
Load current: |
10A 25A 40A 60A 80A 100A |
|
|
Control voltage: |
3-32VDC |
|
|
Load voltage range: |
5-60VAC |
|
|
Cooling conditions: |
10-25A with radiator 40-100A with radiator |
|
|
Load current: |
Resistive load 3 times Inductive load 7 times |
|
|
Switching off voltage: |
≤1.5vDC |
|
|
Control current: |
<25mA |
|
|
Starting current: |
5mA |
|
|
Insulation voltage: |
≥2500mA |
|
|
Weight: |
90g |
|
|
Work instructions: |
LED |
|
|
Fixing method: |
Bolt fixation |
