Hot sale Original 0685T7000-01 FUSE 7A 63V AC 63 V DC Fuse Board Mount (Cartridge Style Excluded) Surface Mount 1206
Manufacturer
Manufacturer Product Number
0685T7000-01
Description
0685T7000-01 FUSE BRD MNT 7A 63VAC 63VDC 1206 Fuses
Package Condition
Tape & Reel (TR) Cut Tape (CT)
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details
| Features - Slow Blow - Small size, 1206 SMD - Current rating from 750mA to 8A - Wide operating temperature range from -55℃ to 125℃ - Tape and Reel for automatic SMD placement - Compatible with 260℃ IR Pb-free and wave soldering process - Full compliance with EU Directive 2011/65/EU and amending directive 2015/863 (MSL = 1) - Halogen Free and Lead Free - AEC-Q Compliant - Meets Bel automotive qualification* * - Largely based on internal AEC-Q test plan Applications - Notebook - Automotive Navigation System - LED Headlights - Thin film transistor LCD flat-panel display screen - PC computer - Office electronic equipment - Industrial equipment - Medical equipment - POE, POE+ - LCD / LED monitor and LCD / LED TV - Power supply - DC-DC Converter |
Product Description
| Type# | Description |
| ANSC PART# | ANSC- 0685T7000-01 |
| Category | Circuit Protection |
| Fuses | |
| Mfr | / |
| Series | C1T |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Part Status | Active |
| Mounting Type | Surface Mount |
| Fuse Type | Board Mount (Cartridge Style Excluded) |
| Current Rating (Amps) | 7 A |
| Voltage Rating - AC | 63 V |
| Voltage Rating - DC | 63 V |
| Response Time | Slow Blow |
| Package / Case | 1206 (3216 Metric) |
| Breaking Capacity @ Rated Voltage | 50A |
| Melting I²t |
6.9 |
| Approval Agency | AEC-Q200, CE, cURus |
| Operating Temperature | -55°C ~ 125°C |
| Color | - |
| Size / Dimension | 0.126" L x 0.062" W x 0.025" H (3.20mm x 1.58mm x 0.63mm) |
| DC Cold Resistance | 0.013 Ohms |

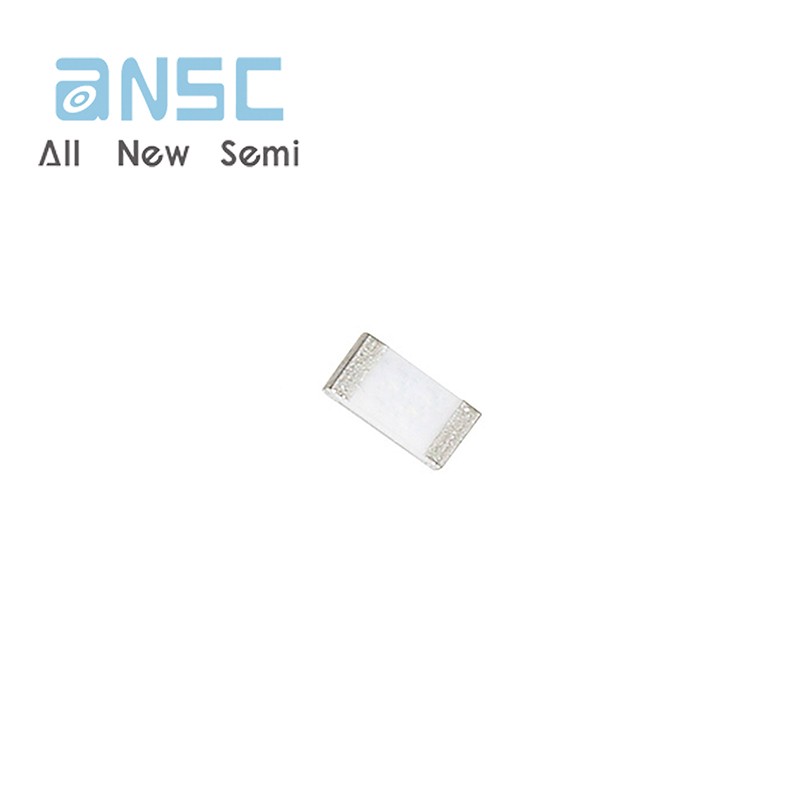

Actual image of the product

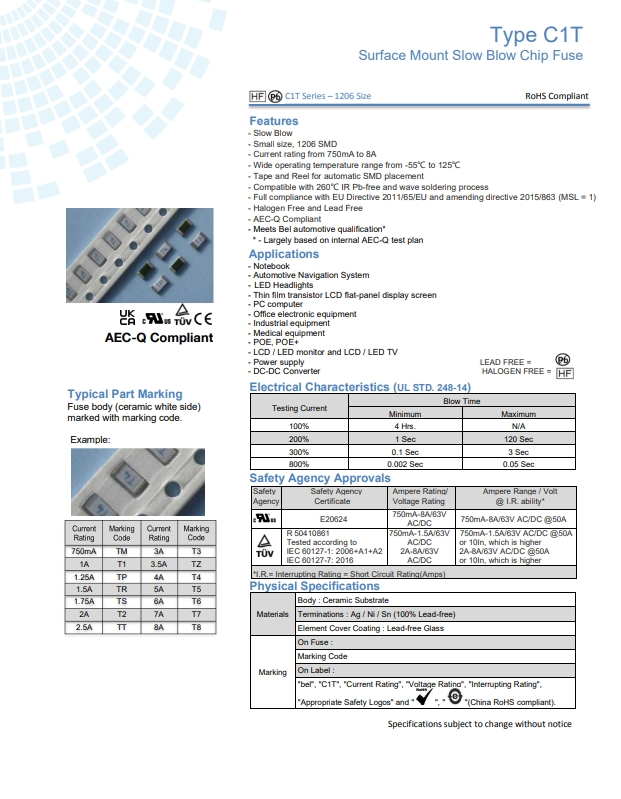

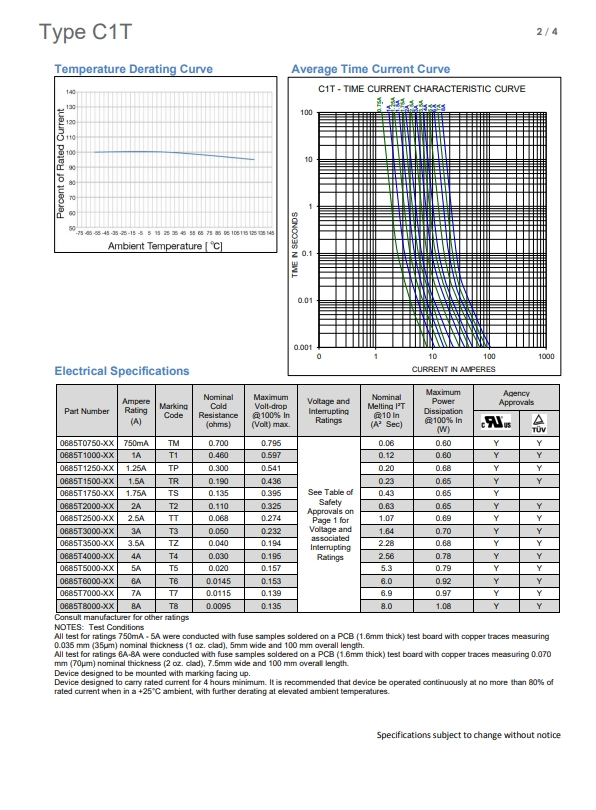

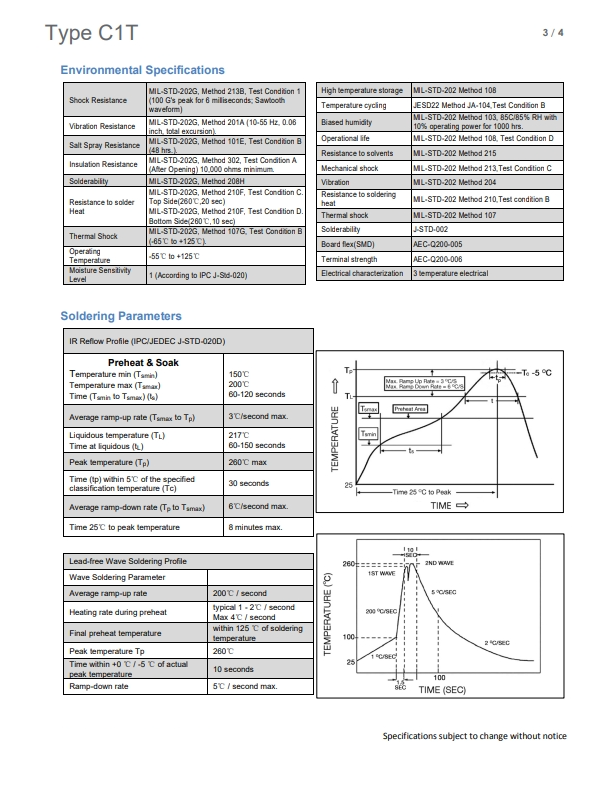

Product datasheet
For more information, please download
