Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.

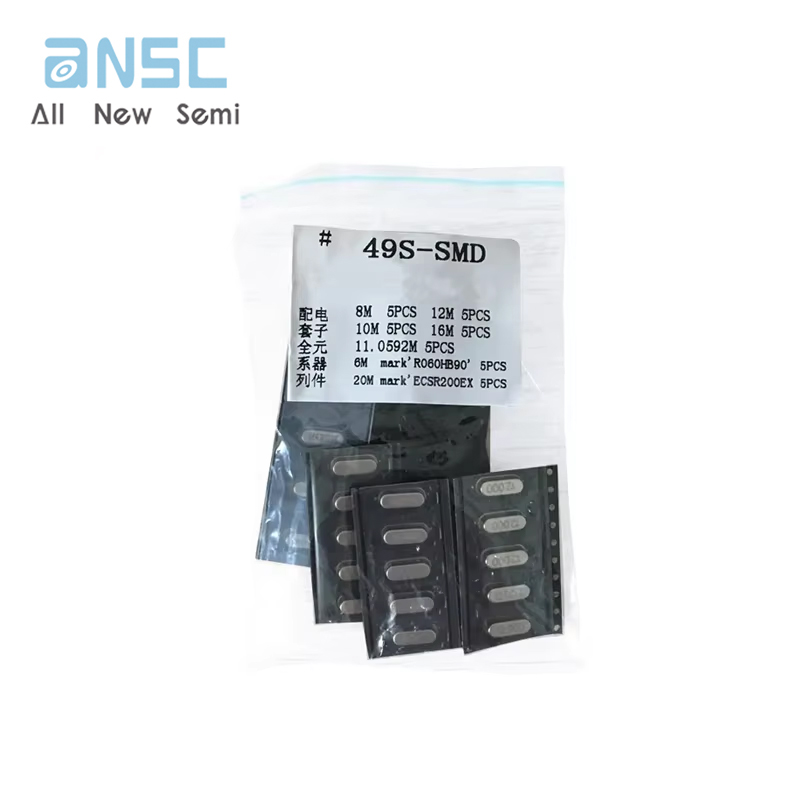

49S-SMD 35PCS/Lot SMD Crystals 6Mhz 8Mhz 10Mhz 12Mhz 16Mhz 20Mhz 11.0592Mhz Mhz 49SMD Crystal Oscillator Kit 7 kinds* 5pcs
Manufacturer Product Number
49S-SMD
Description
49S-SMD CRYSTAL RESONATOR
Package Condition
Original
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Description
| 规格型号Specification | 49S-SMD |
| 频率范围FrequencyRange | 3.579545MHZ ~ 75.000MHZ |
| 振动模式Mode of Oscillation | Fundamental /3rd/ 5rd |
| 调整频差 FrequencyTolerance | 10ppm ~30ppm |
| 温度频差 Temperature Drift | 土30ppm ~ 50ppm |
| 工作温度 Operating Temperature | (-40C~+85C) |
| 储存温度 Storage Temperature | (-55C~+125C) |
| 负载电容 Load capacitance | 6PF~ 50PF/Series |
| 谐振电阻Resonance Resistance | 25 ~ 2500 |
| 激励功率DriveLevel | 0.01mW ~ 2mW |
| 年老化率Aging | 5PPM/Year |
| 绝缘电阻Insulation Resistance | 500M2 Min.(:DC 100V10V) |
| 静态电容 Shunt Capacitance | 7PF max |

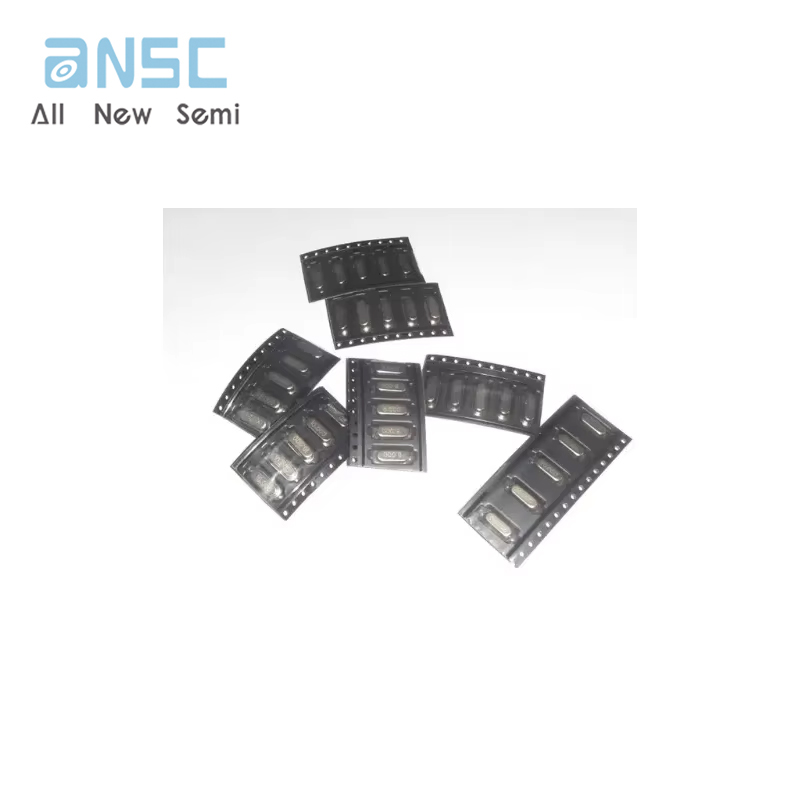

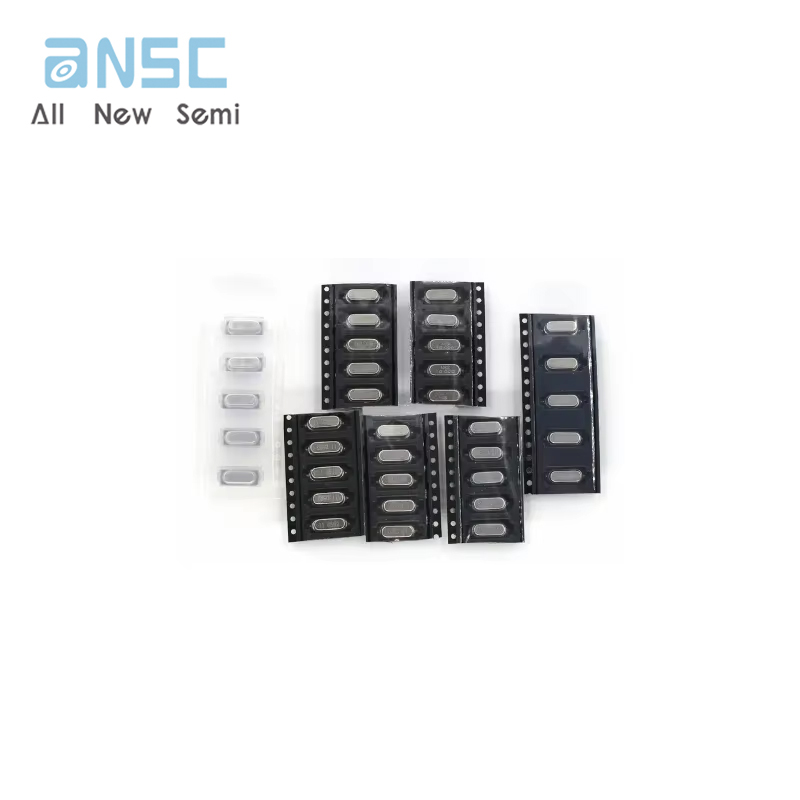

Actual image of the product
