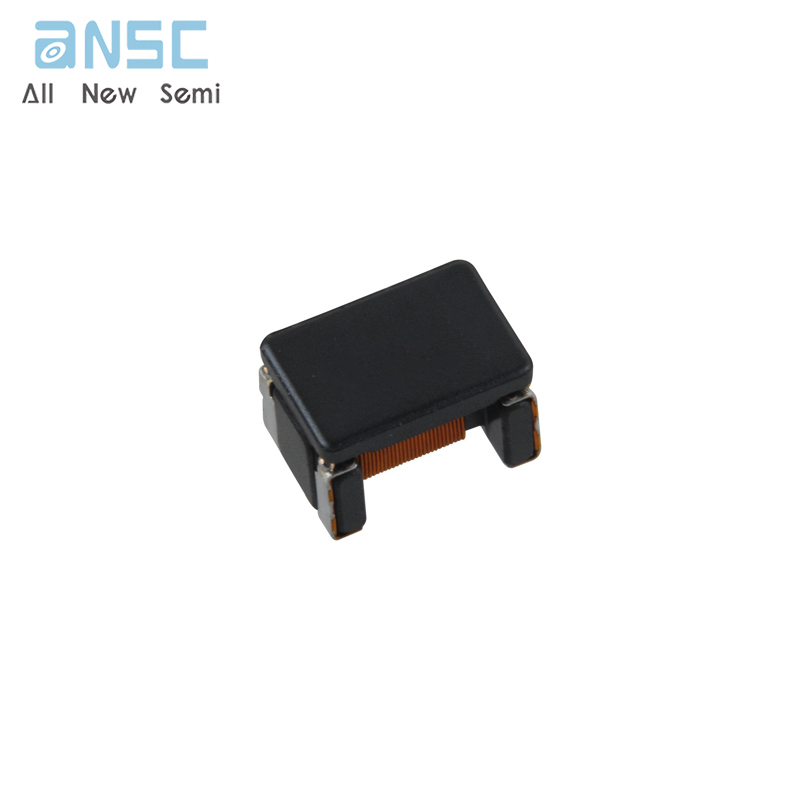

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
Hot-selling and scarce ACT45B-110-2P-TL003 11µH @100kHz 2 Line Common Mode Choke SMD spot stock
Manufacturer Product Number
ACT45B-110-2P-TL003
Description
ACT45B-110-2P-TL003 11µH @100kHz 2 Line Common Mode Choke SMD spot stock
Package Condition
TaPe & Reel
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Features
Compatible with an operating temperature range of –40 to +150°C, so can be used for vehicle devices requiring compatibility with high
temperatures .
When mounting, the terminal and winding tape splicing part do not fuse .
Product Applications
CAN-BUS, FAXs, modems, ISDNs, etc .
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-ACT45B-110-2P-TL003 |
| Category | Filters |
| Common Mode Chokes | |
| Manufacturer | - |
| Series | ACT45B |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Part Status | Active |
| Filter Type | Signal Line |
| Number of Lines | 2 |
| Impedance @ Frequency | 600 Ohms @ 10 MHz |
| Inductance @ Frequency | 11 µH @ 100 kHz |
| Current Rating (Max) | 250mA |
| DC Resistance (DCR) (Max) | 600mOhm |
| Voltage Rating - DC | 50V |
| Operating Temperature | -40°C ~ 150°C |
| Mounting Type | Surface Mount |
| Size / Dimension | 0.177" L x 0.126" W (4.50mm x 3.20mm) |
| Height (Max) | 0.118" (3.00mm) |
| Package / Case | Horizontal, 4 PC Pad |
Product Photos
For more product information, please download the PDF
