Hot sale original BNX016-01 FILTER LC TH Filter 5th Order Low Pass 2 Channel 15 A Block, 4 Lead

Manufacturer Product Number
BNX016-01
Description

BNX016-01 LC EMI Filter 5th Order Low Pass 2 Channel 15 A Block, 4 Lead

Package Condition
Bulk
Datasheet
BNX016-01
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser. All intellectual property rights of products on our website belong to the original factory! (In addition to ANSC's own customized products)

Product Details

Product Description:
The BNX016-01 is a low-pass EMI/RFI filter designed for data lines in mobile devices. Manufactured , this filter is part of the EMIFIL? series and is designed to provide excellent attenuation and protection against electromagnetic interference (EMI) and radio-frequency interference (RFI) in electronic systems.

Features:
Attenuation value of 40dB @ 100kHz ~ 1GHz
5th-order filter circuit type
Through-hole mounting type
Lead-free and RoHS3 compliant
Operating temperature range of -40°C to 125°C
Voltage rating of 25V DC and 25V AC
Current rating of 15A
Insulation resistance of 50MOhm
Output impedance of 50Ohm
Shielding: Unshielded
Package type: Block, 4-lead

Dimensions: 0.472L x 0.433W x 11.00mm x 12.00mm

Applications:
Data lines for mobile devices
Other applications where EMI/RFI filtering is required

Product Description

Type Description
ANSC PART# ANSC-BNX016-01
Category Filters
EMI/RFI Filters (LC, RC Networks)
Manufacturer /
Series EMIFIL®, BNX
Packaging Bulk
Part Status Active
Type Low Pass
Filter Order 5th
Technology LC
Number of Channels 2
Center / Cutoff Frequency -
Attenuation Value 40dB @ 100kHz ~ 1GHz
Resistance - Channel (Ohms) -
Current 15 A
Values -
ESD Protection No
Operating Temperature -40°C ~ 125°C
Applications Data Lines for Mobile Devices
Voltage - Rated 25V
Mounting Type Through Hole
Package / Case Block, 4 Lead
Size / Dimension 0.472" L x 0.433" W (12.00mm x 11.00mm)
Height 0.335" (8.50mm)
Base Product Number BNX0

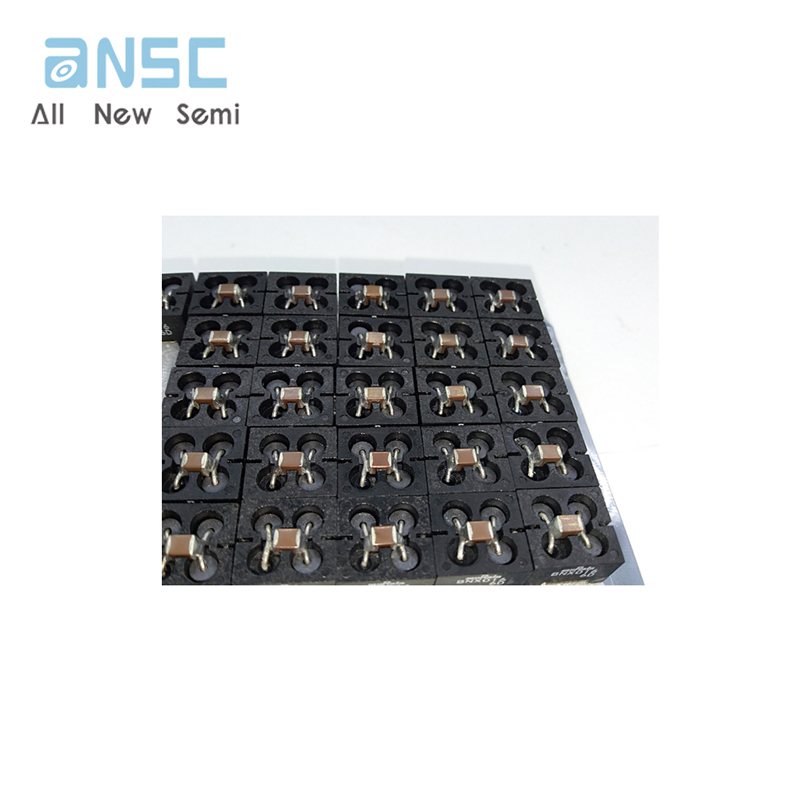

Actual image of the product

BNX016-01

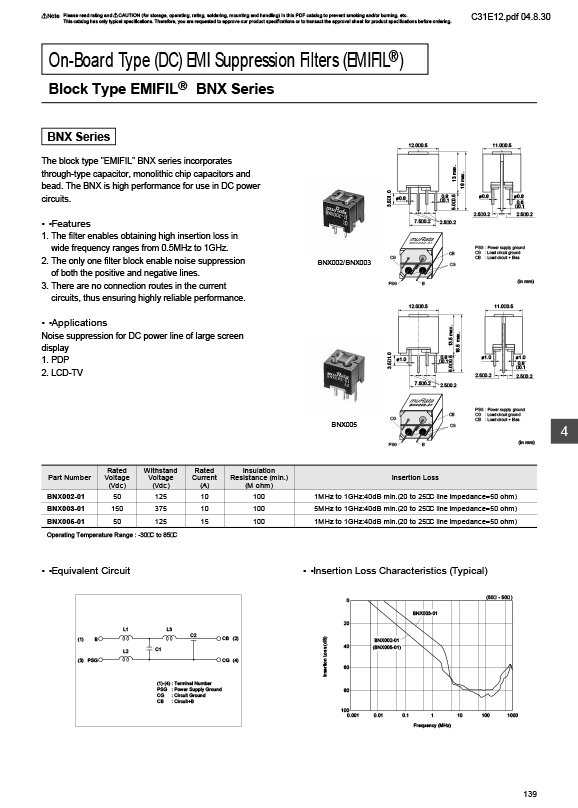

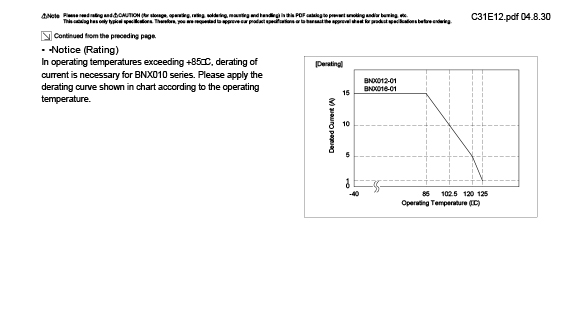

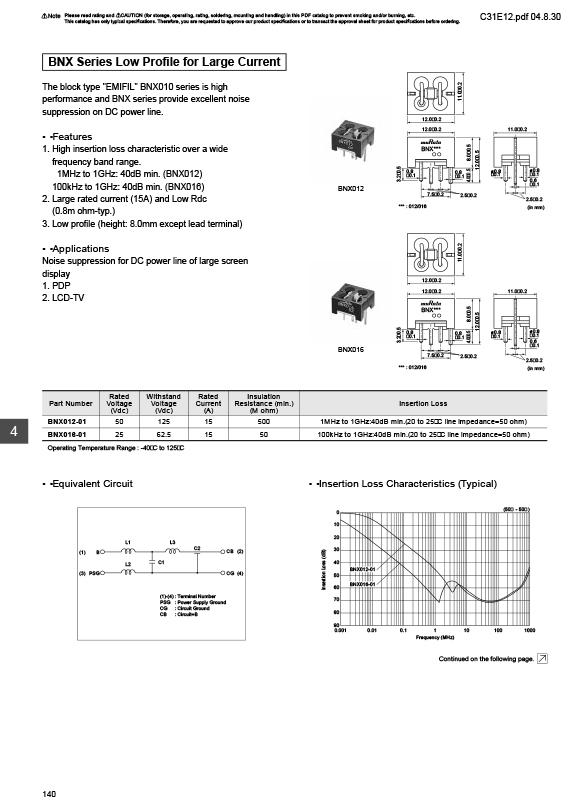

Product datasheet
