Original RLB0914-102KL 1mH Unshielded Drum Core, Wirewound Inductor 420 mA 2.1Ohm Max Radial, Vertical Cylinder
Manufacturer Product Number
RLB0914-102KL
Description
RLB0914-102KL Inductors FIXED IND 1MH 420MA 2.1 OHM TH
Package Condition
Bulk
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details
Features
■ Four types available
■ High rated current for high current circuits
■ Available in E12 series
■ RoHS compliant*
Applications
■ Power supplies
■ DC/DC converters
■ General use
Product Description
| Type | Description |
| Part# | RLB0914-102KL |
| Category | Inductors, Coils, Chokes |
| Fixed Inductors | |
| Mfr | Original |
| Series | RLB |
| Packaging | Bulk |
| Part Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 1 mH |
| Tolerance | ±10% |
| Current Rating (Amps) | 420 mA |
| Current - Saturation (Isat) | 650mA |
| Shielding | Unshielded |
| DC Resistance (DCR) | 2.1Ohm Max |
| Q @ Freq | 40 @ 252kHz |
| Frequency - Self Resonant | 1.3MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 252 kHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Vertical Cylinder |
| Supplier Device Package | - |
| Size / Dimension | 0.343" Dia (8.70mm) |
| Height - Seated (Max) | 0.512" (13.00mm) |
| Base Product Number | RLB0914 |

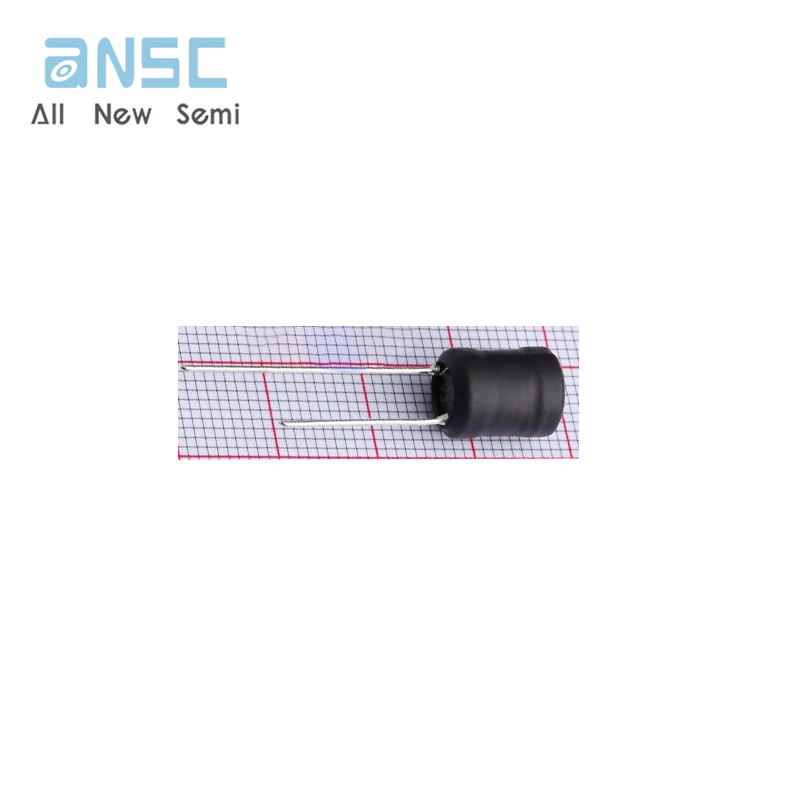

Actual image of the product

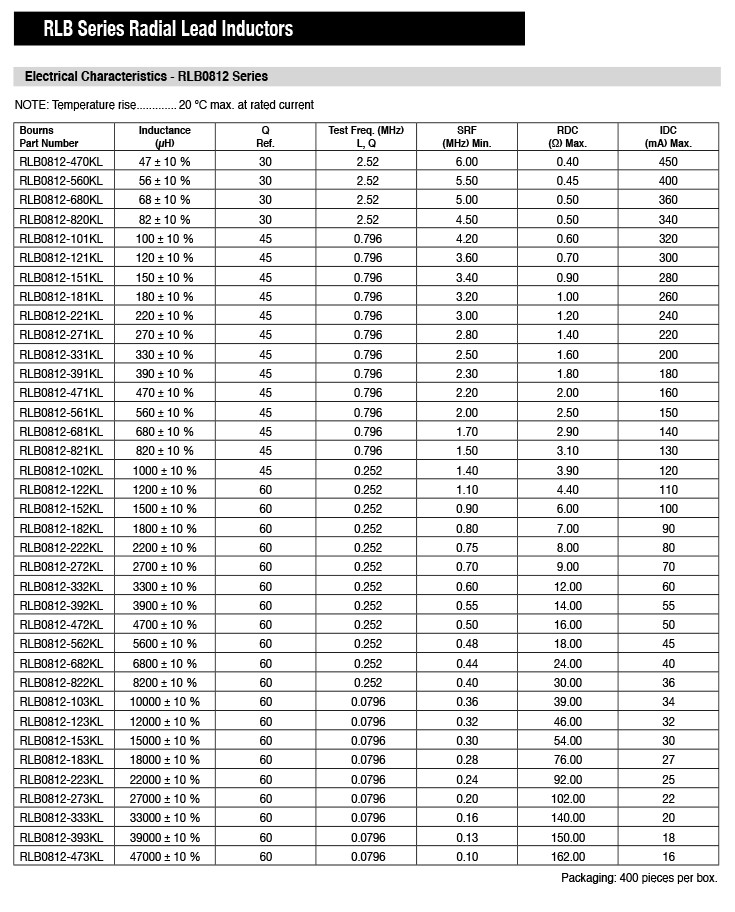

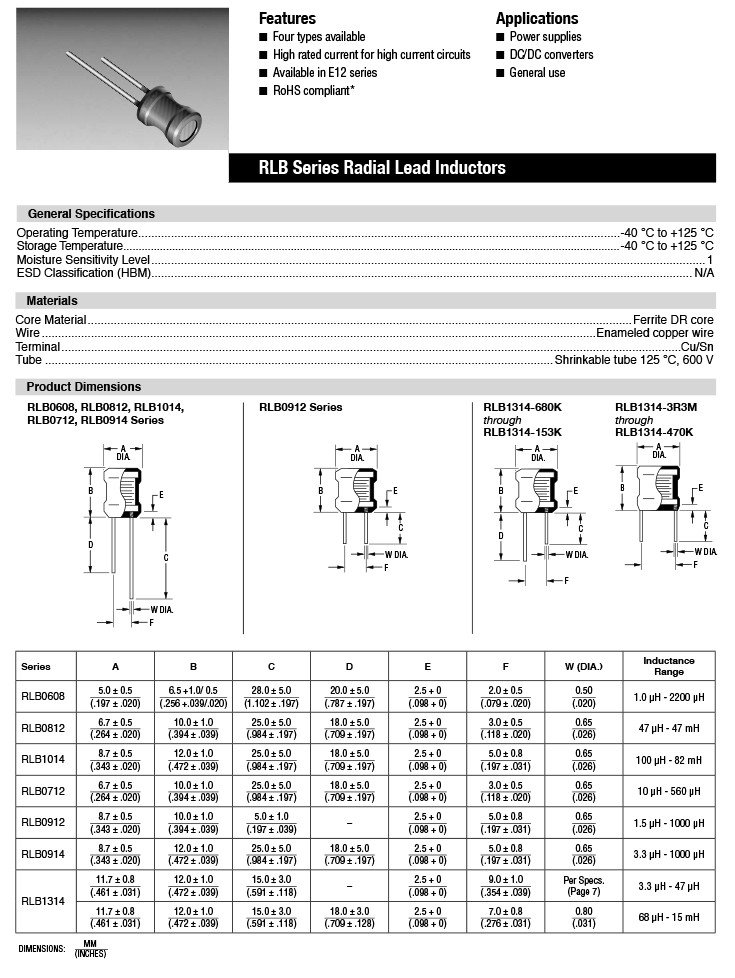

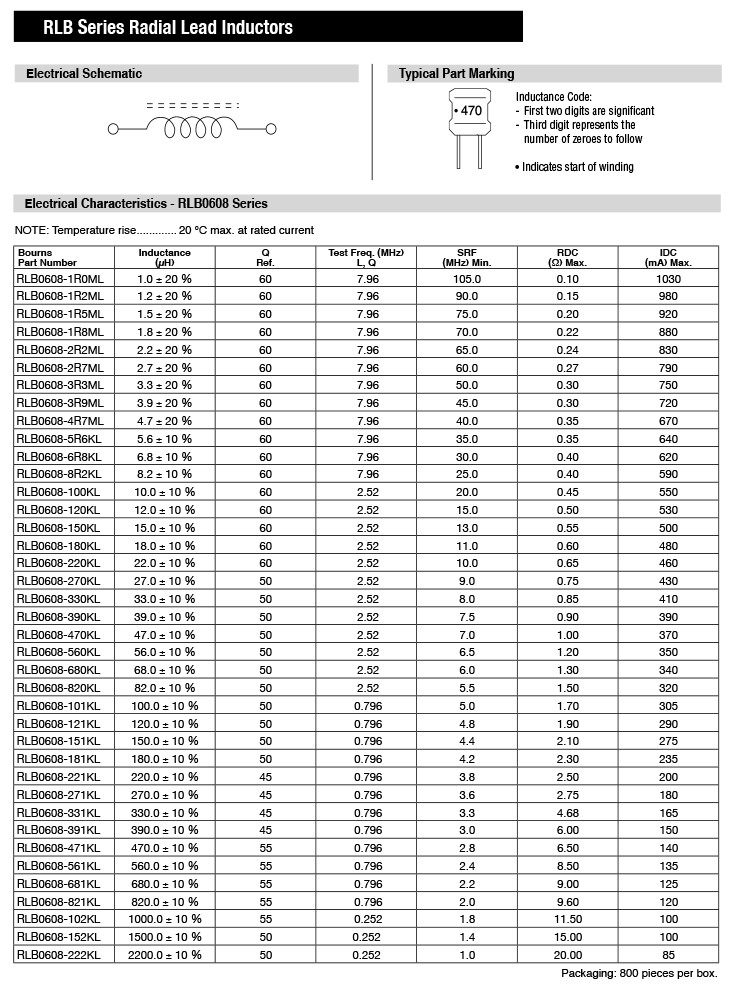

Product datasheet
For more information, please download
