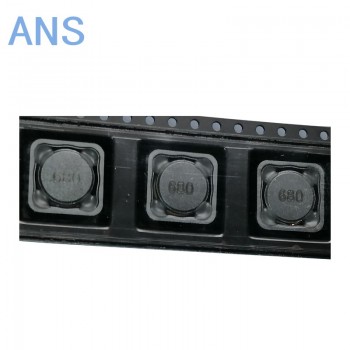

One stop supply of electronic components SRR1280A-680M 68µH Shielded Inductor 2.4A 120mOhm Max Nonstandard
Manufacturer Product Number
SRR1280A-680M
Description
68µH Shielded Inductor 2.4A 120mOhm Max Nonstandard
Package Condition
Tape and Reel
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
| Part# | SRR1280A-680M |
| Category | Inductors, Coils, Chokes |
| Fixed Inductors | |
| Mfr | - |
| Series | SRR1280A |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Product Status | Active |
| Type | - |
| Material - Core | Ferrite |
| Inductance | 68 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 2.4 A |
| Current - Saturation (Isat) | 2.3A |
| Shielding | Shielded |
| DC Resistance (DCR) | 120mOhm Max |
| Q @ Freq | 20 @ 2.52MHz |
| Frequency - Self Resonant | 6.5MHz |
| Ratings | AEC-Q200 |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 1 kHz |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | 1280 |
| Size / Dimension | 0.492" L x 0.492" W (12.50mm x 12.50mm) |
| Height - Seated (Max) | 0.315" (8.00mm) |
| Base Product Number | SRR1280A |
