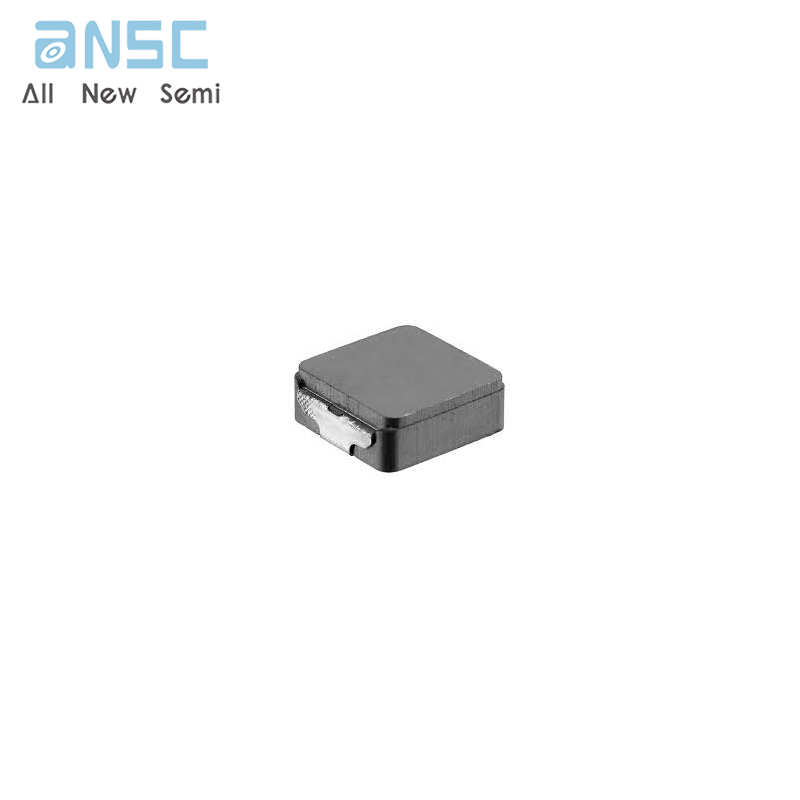

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
Hot-selling and scarce IHLP4040DZER1R8M11 Commercial Inductors, Low DCR SMD spot stock
Manufacturer Product Number
IHLP4040DZER1R8M11
Description
IHLP4040DZER1R8M11 Commercial Inductors, Low DCR SMD spot stock
Package Condition
TaPe & Reel
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Features
• 10.8 mm x 10.16 mm x 4.0 mm package
• Magnetically shielded metal construction
• Optimized for low DCR for up to 20 % reduction in DC power losses over other IHLP series
• Polarity marking available for EMI sensitive applications (see“EP” package code below for more information)
Product Applications
• DC/DC power supplies
• Smart grid and solar
• Telecommunications equipment
• Noise suppression and filtering
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-IHLP4040DZER1R8M11 |
| Category | Inductors, Coils, Chokes |
| Fixed Inductors | |
| Mfr | - |
| Series | IHLP-4040DZ-11 |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Part Status | Active |
| Type | Molded |
| Inductance | 1.8 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 17 A |
| Current - Saturation (Isat) | 16A |
| Shielding | Shielded |
| DC Resistance (DCR) | 5mOhm Max |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | 4040 |
| Size / Dimension | 0.425" L x 0.400" W (10.80mm x 10.16mm) |
| Height - Seated (Max) | 0.157" (4.00mm) |
Product Photos
For more product information, please download the PDF
