You can contact me for the best price EG2108 Integrated Circuits Hot sale original
Manufacturer
Manufacturer Product Number
EG2108
Description
EG2108 Integrated Circuits Hot sale original
Package Condition
Tape & Reel (TR)
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details
| Product Overview EG2108 is a cost-effective MOS tube, IGBT tube gate driver special chip, internal integration of logic signal input processing circuit, undervoltage protection circuit, level displacement circuit, pulse filter circuit and output drive circuit, specially for brushless motor controller, power supply DC - DC drive circuit. The EG2108 can operate up to 600V at the high end and the supply voltage range of the low-end Vcc is wide from 10V - 20V. The input channel of the chip has a built-in 200K pull-down resistor in the HIN and a 200K pull-down resistor in the LIN, which makes the upper and lower power MOS tubes turned off when the input is suspended, and the output current capability is IO +/- 0.3/0.6A, and it is packaged in SOP8. |
| Product Features High-end suspension bootstrap power supply design, withstand voltage up to 600V Adaptable to 5V and 3.3V input voltages The maximum frequency supports 500KHZ The VCC and VB power supplies have undervoltage protection Low-end VCC voltage range 10V - 20V Output Current Capability|0 + / - 0.3A/0.6A Built-in dead zone control circuit The HIN input channel is effective at high levels to control the high-end HO output The LIN input channel is effective at high levels and controls the low-end LO output Fewer Peripheral Components Package Form: SOP - 8 |
| Applications: Power supply high-voltage fast charging switching power supply Wireless charging driver Variable frequency pump controller DC - DC power supply Brushless motor drive |
Product Description
| Type# | Description |
| ANSC PART# | EG2108 |
| Product catalogue | Gate driver chip |
| Load type | MOSFET;IGBT |
| Current Injection Current (IOL) | 600mA |
| Pull Current (IOH) | 300mA |
| Operating voltage | 10V~20V |
| attribute | Parameter values |
| Time to rise (tr) | 70ns |
| Time to Fall (tf) | 35ns |
| characteristic | Undervoltage protection (UVP) |
| Operating temperature | -45℃~+125℃ |
| Quiescent Current (Iq) | 200uA |

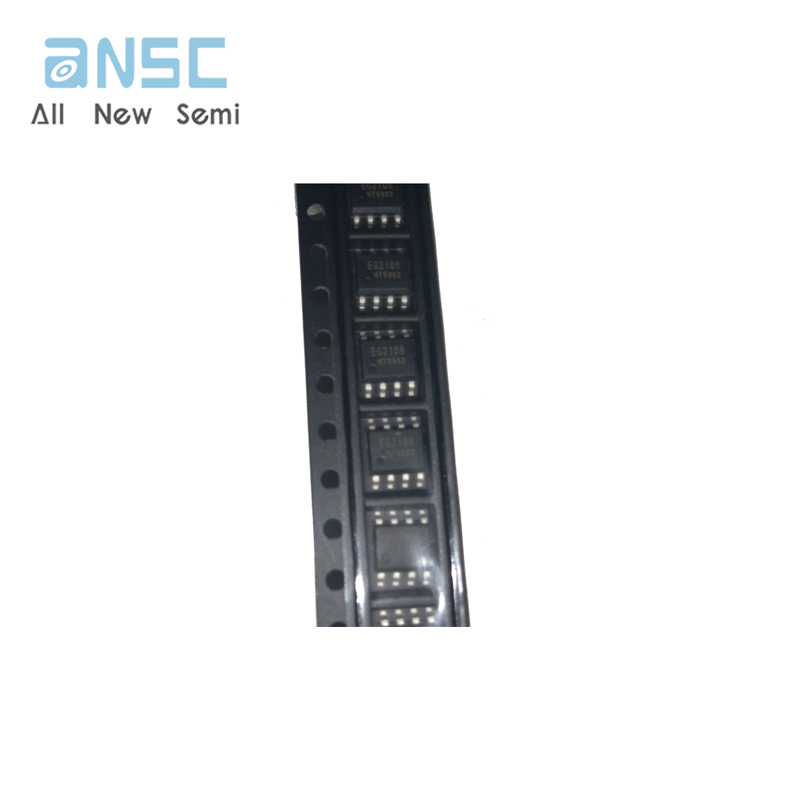

Actual image of the product
