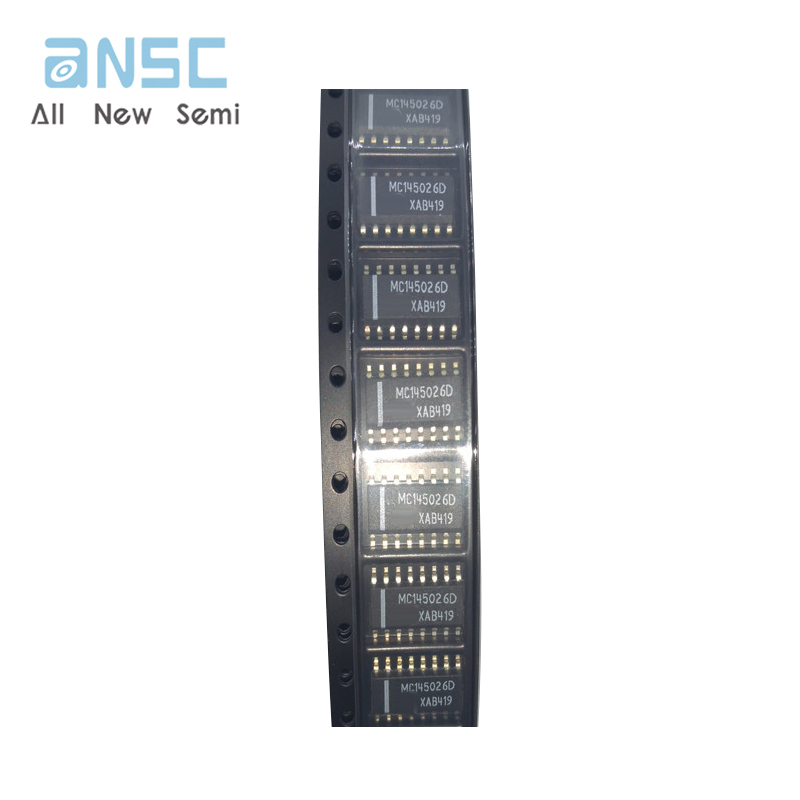

Image shown is a representation only.

Exact specifications should be obtained from the product data sheet.

Hot sale original MC145026D Transmitter IC, CMOS, PDSO16, SOG-16

Manufacturer Product Number
MC145026D
Description

MC145026D Transmitter IC, CMOS, PDSO16, SOG-16

Package Condition
Tube
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser. All intellectual property rights of products on our website belong to the original factory! (In addition to ANSC's own customized products)

Product Details

Description
These devices are designed to be used as encoder/decoder pairs in remote control applications. The MC145026 encodes nine lines of information and serially sends this information upon receipt of a transmit enable (TE) signal. The nine lines may be encoded with trinary data (low, high, or open) or binary data (low or high). The words are transmitted twice per encoding sequence to increase security.


Features
Operating Temperature Range: - 40 to + 85°C
Very-Low Standby Current for the Encoder: 300 nA Maximum @ 25°C
Interfaces with RF, Ultrasonic, or Infrared Modulators and Demodulators
RC Oscillator, No Crystal Required
High External Component Tolerance; Can Use ± 5% Components
Internal Power-On Reset Forces All Decoder Outputs Low
Operating Voltage Range:
MC145026 = 2.5 to 18 V
MC145027, MC145028 = 4.5 to 18 V

Product Description

Type# Description
ANSC PART# ANSC-MC145026D
Part Life Cycle Code Transferred
Ihs Manufacturer Original
Package Description SOP, SOP16,.25
Consumer IC Type TRANSMITTER IC
Length 9.9 mm
Number of Functions 1
Number of Terminals 16
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
Package Body Material PLASTIC/EPOXY
Package Code SOP
Package Equivalence Code SOP16,.25
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Qualification Status Not Qualified
Seated Height-Max 1.75 mm
Supply Voltage-Max (Vsup) 18 V
Supply Voltage-Min (Vsup) 2.5 V
Surface Mount YES
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Finish TIN LEAD
Terminal Form GULL WING
Terminal Pitch 1.27 mm
Terminal Position DUAL
Width 3.9 mm

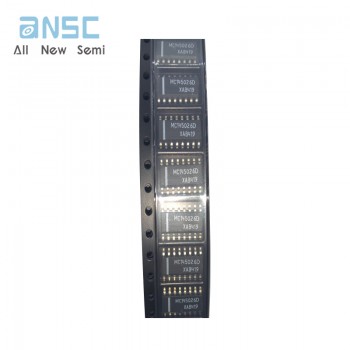

Product Photos

MC145026D

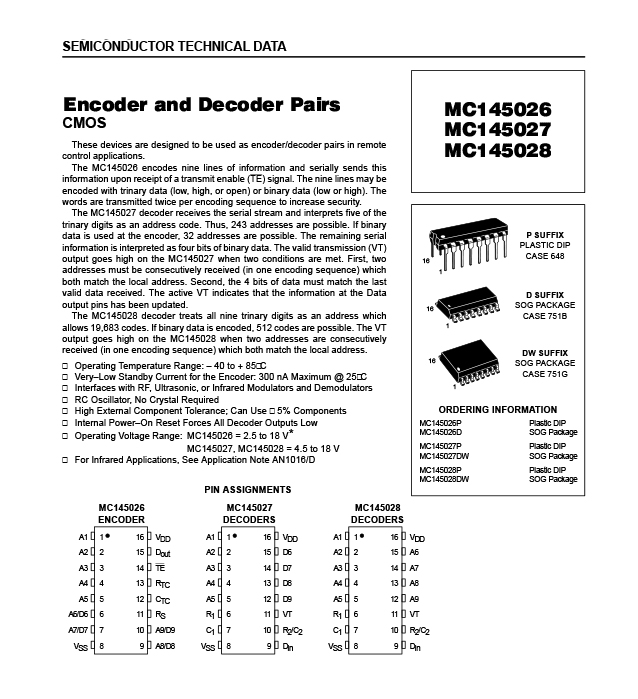

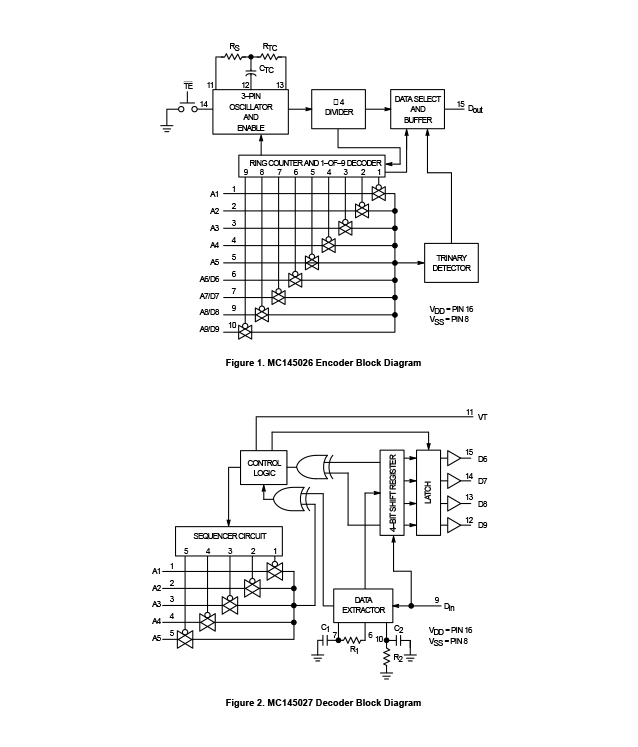

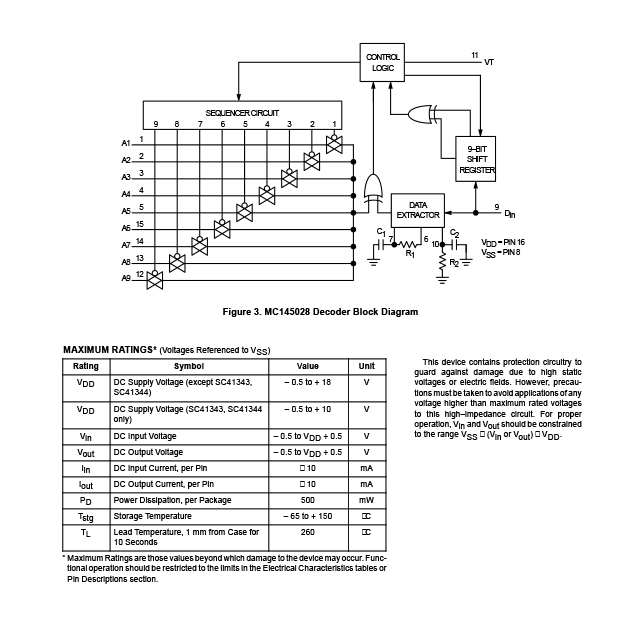

Product datasheet

For more information, please download
