Image shown is a representation only.

Exact specifications should be obtained from the product data sheet.

Hot sale original ADS1232IPW IC ADC 24BIT SIGMA-DELTA 24TSSOP 24 Bit Analog to Digital Converter 2 Input 1 Sigma-Delta 24-TSSOP

Manufacturer Product Number
ADS1232IPW
Description

ADS1232IPW IC ADC 24BIT SIGMA-DELTA 24TSSOP 24 Bit Analog to Digital Converter 2 Input 1 Sigma-Delta 24-TSSOP

Package Condition
Tube
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser. All intellectual property rights of products on our website belong to the original factory! (In addition to ANSC's own customized products)

Product Details


DESCRIPTION
The ADS1225 and ADS1226 are 24-bit delta-sigma analog-to-digital (A/D) converters. They offer excellent performance, ease-of-use, and low power in a small 4mm × 4mm QFN package and are well-suited for demanding high-resolution measurements, especially in portable and other space-saving and power-constrained applications.
FEATURES
• 100SPS Data Rate (High-Speed Mode)
• Single-Cycle Settling
• Easy Conversion Control with START Pin
• Automatic Shutdown
• Low Noise: 4µVRMS Noise (High-Resolution Mode)
• Input Multiplexer with Two Differential Channels (ADS1226)
• Voltage Reference Supports Ratiometric Measurements
• Self-Calibrating
• Simple Read-Only 2-Wire Serial Interface
• Internal High-Impedance Input Buffer
• Internal Temperature Sensor
• Internal Oscillator
• Low-Power: 1mW While Operating, < 1µA During Shutdown
• Analog and Digital Supplies: 2.7V to 5.5V
APPLICATIONS
• Hand-Held Instrumentation
• Portable Medical Equipment
• Industrial Process Control


Product Description


TypeDescription
ANSC PART#ANSC - ADS1232IPW
CategoryIntegrated Circuits (ICs)
Data Acquisition
Analog to Digital Converters (ADC)
ManufacturerOriginal
Series-
PackagingTube
Part StatusActive
Number of Bits24
Sampling Rate (Per Second)80
Number of Inputs2
Input TypeDifferential, Single Ended
Data InterfaceSPI
ConfigurationMUX-PGA-ADC
Ratio - S/H:ADC-
Number of A/D Converters1
ArchitectureSigma-Delta
Reference TypeExternal
Voltage - Supply, Analog2.7V ~ 5.3V
Voltage - Supply, Digital2.7V ~ 5.3V
FeaturesPGA
Operating Temperature-40°C ~ 105°C
Package / Case24-TSSOP (0.173", 4.40mm Width)
Supplier Device Package24-TSSOP
Mounting TypeSurface Mount
Base Product NumberADS1232

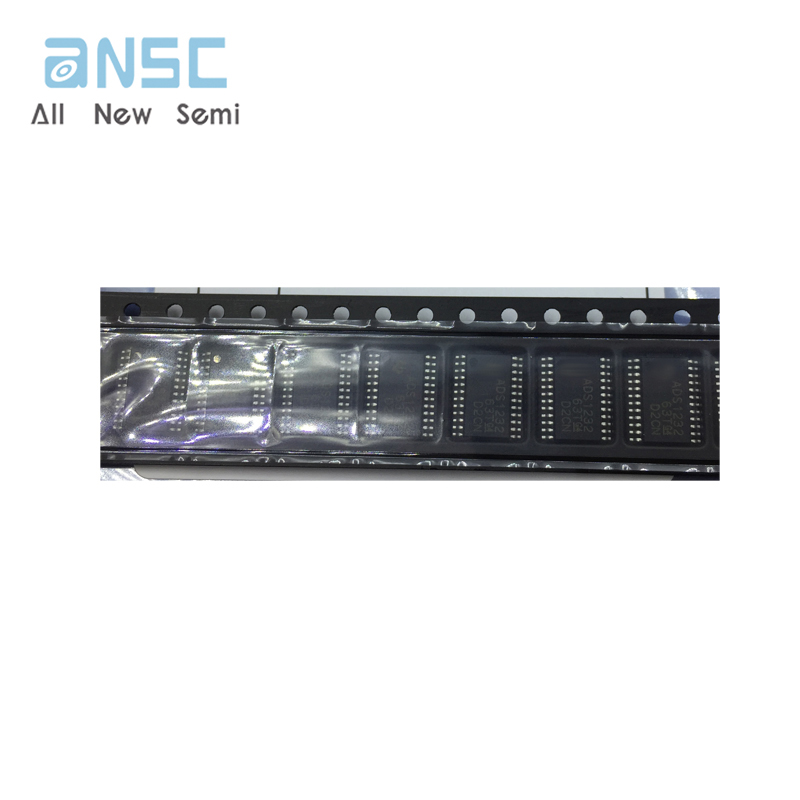

Product Photos

ADS1232IPW

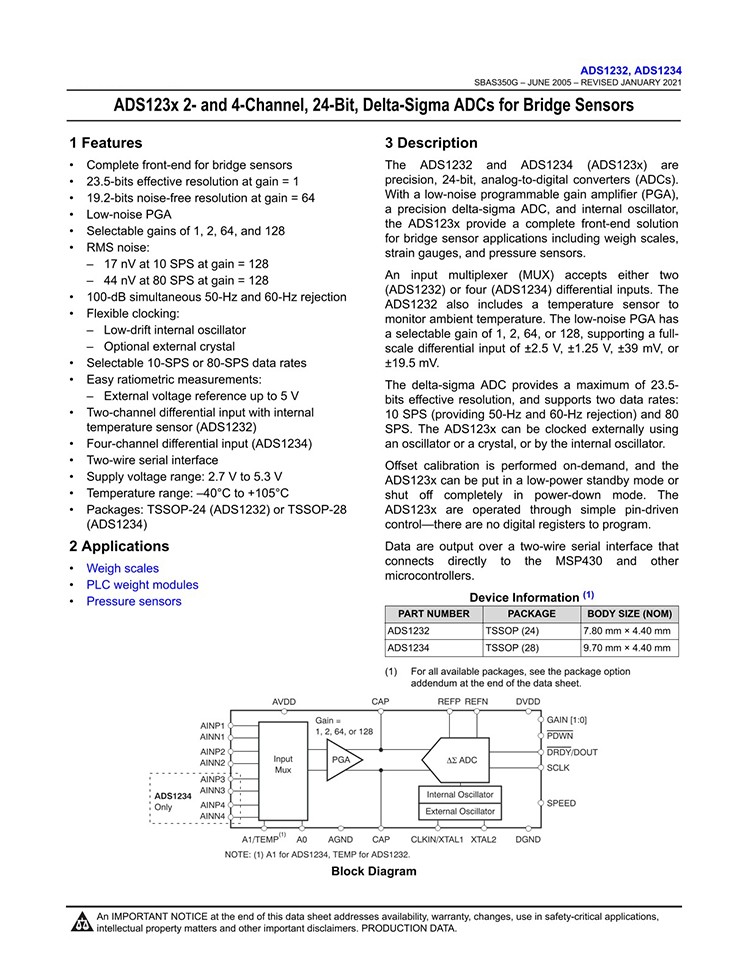

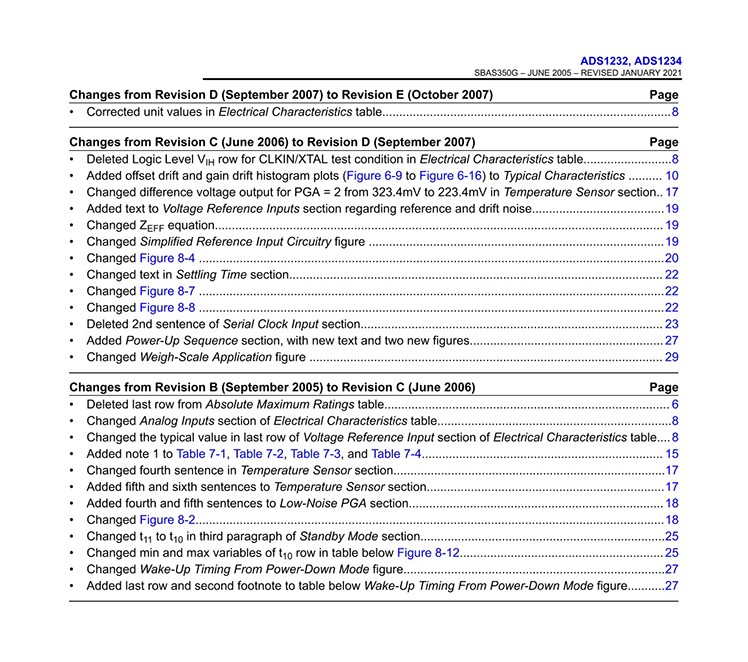

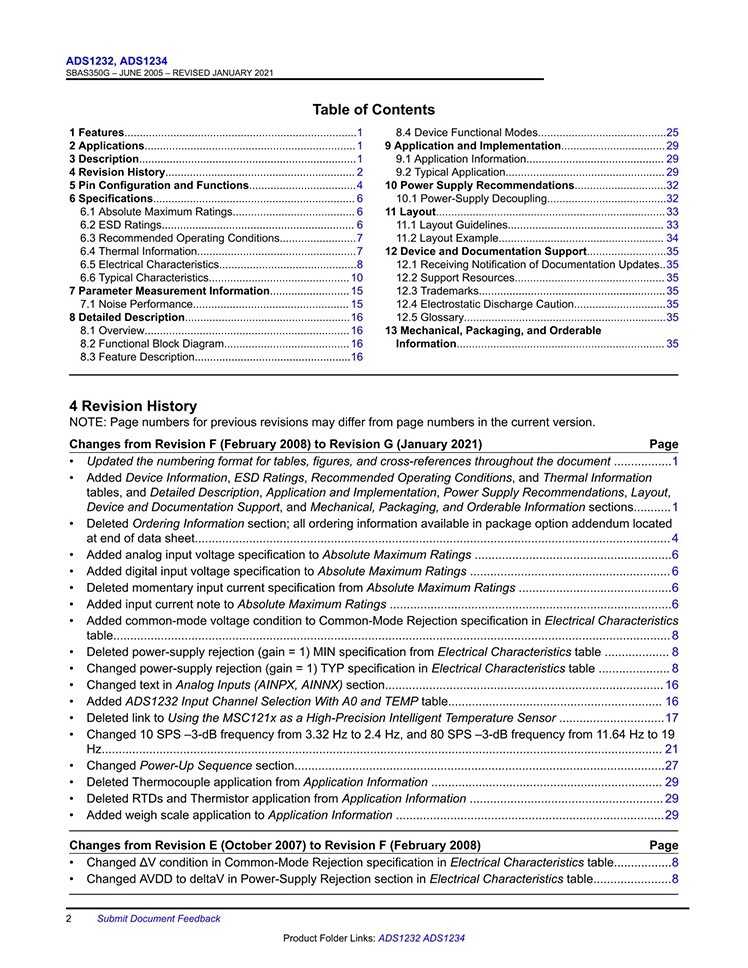

Product datasheet

For more information, please download
