Hot sale original AS7C256-20JI Standard SRAM, 32KX8, 20ns, CMOS, PDSO28, 0.300 INCH, PLASTIC, SOJ-28
Manufacturer Product Number
AS7C256-20JI
Description
AS7C256-20JI Standard SRAM, 32KX8, 20ns, CMOS, PDSO28, 0.300 INCH, PLASTIC, SOJ-28
Package Condition
Tube
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details
| Features • AS7C256 (5V version) • AS7C3256 (3.3V version) • Industrial and commercial temperature • Organization: 32,768 words × 8 bits • High speed - 12/15/20 ns address access time - 6, 7, 8 ns output enable access time • Very low power consumption: ACTIVE - 660mW (AS7C256) / max @ 12 ns - 216mW (AS7C3256) / max @ 12 ns • Very low power consumption: STANDBY - 22 mW (AS7C256) / max CMOS I/O - 7.2 mW (AS7C3256) / max CMOS I/O • Easy memory expansion with CE and OE inputs • TTL-compatible, three-state I/O • 28-pin JEDEC standard packages - 300 mil PDIP - 300 mil SOJ - 8 × 13.4 mm TSOP 1 • ESD protection ≥ 2000 volts • Latch-up current ≥ 200 mA |
Product Description
| Type# | Description |
| ANSC PART# | ANSC - AS7C256-20JI |
| Ihs Manufacturer | Original |
| Part Package Code | SOJ |
| Package Description | 0.300 INCH, PLASTIC, SOJ-28 |
| Pin Count | 28 |
| Access Time-Max | 20 ns |
| Memory Density | 262144 bit |
| Memory IC Type | STANDARD SRAM |
| Memory Width | 8 |
| Number of Functions | 1 |
| Number of Terminals | 28 |
| Number of Words | 32768 words |
| Number of Words Code | 32000 |
| Operating Mode | ASYNCHRONOUS |
| Operating Temperature-Max | 85 °C |
| Operating Temperature-Min | -40 °C |
| Organization | 32KX8 |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | SOJ |
| Package Shape | RECTANGULAR |
| Package Style | SMALL OUTLINE |
| Parallel/Serial | PARALLEL |
| Peak Reflow Temperature (Cel) | 225 |
| Qualification Status | Not Qualified |
| Seated Height-Max | 3.556 mm |
| Supply Voltage-Max (Vsup) | 5.5 V |
| Supply Voltage-Min (Vsup) | 4.5 V |
| Supply Voltage-Nom (Vsup) | 5 V |
| Surface Mount | YES |
| Technology | CMOS |
| Temperature Grade | INDUSTRIAL |
| Terminal Form | J BEND |
| Terminal Pitch | 1.27 mm |
| Terminal Position | DUAL |
| Width | 7.62 mm |

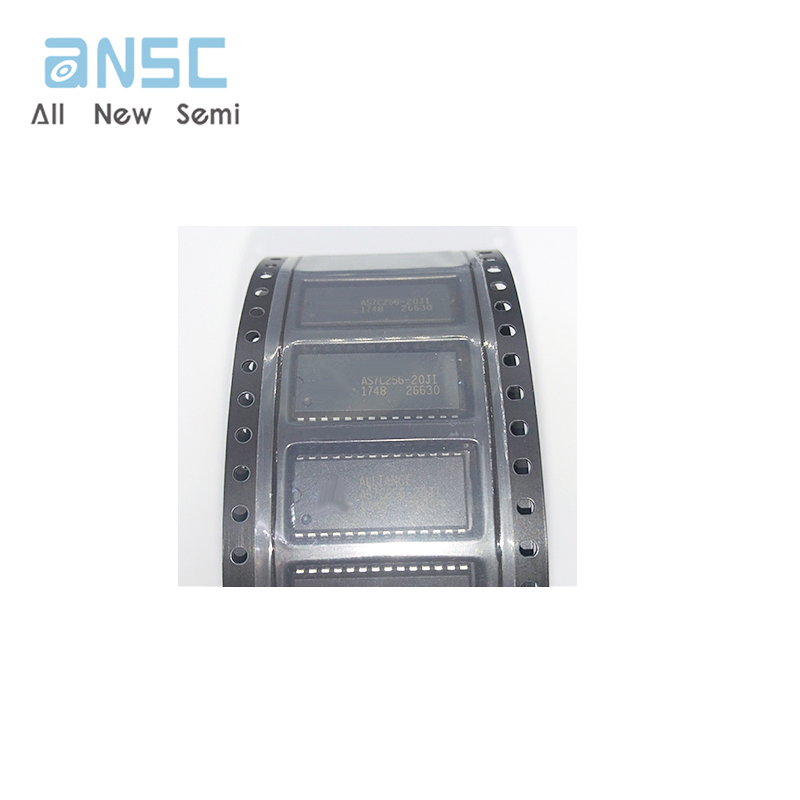

Product Photos

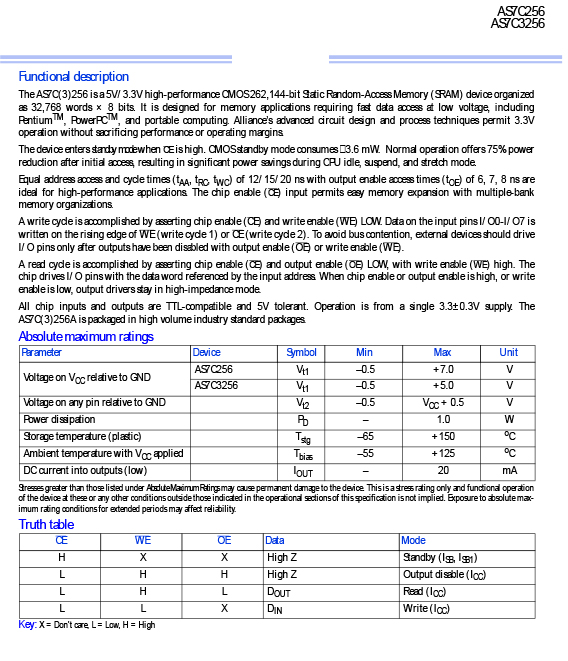

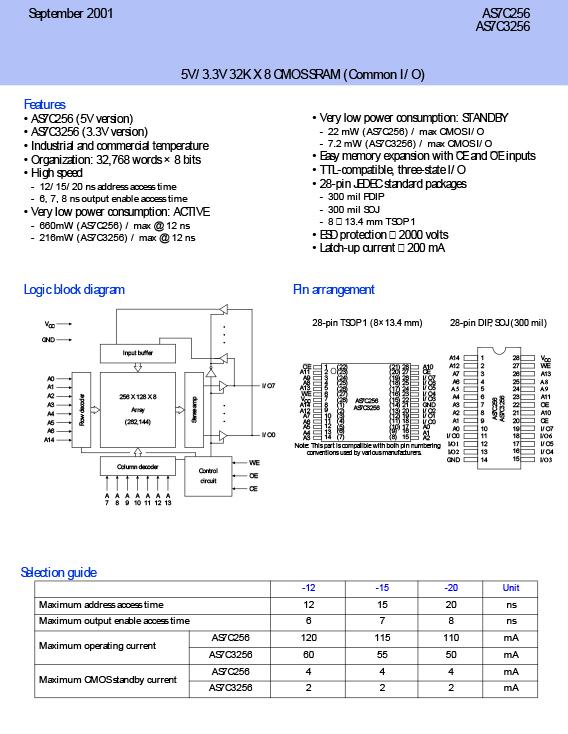

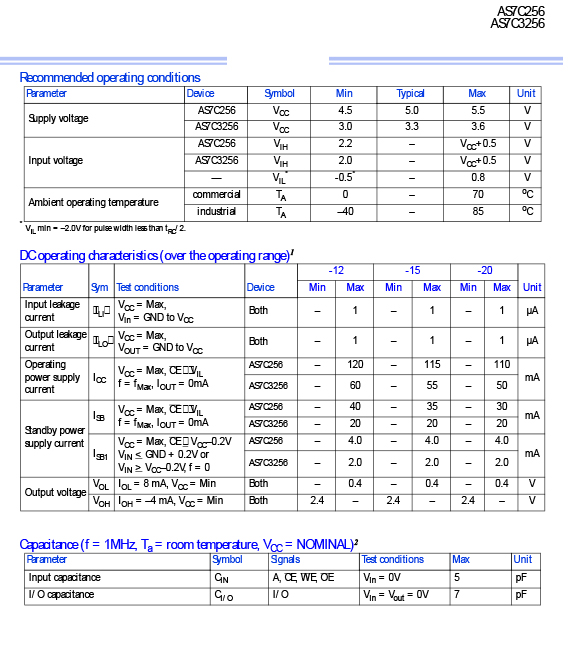

Product datasheet
For more information, please download
